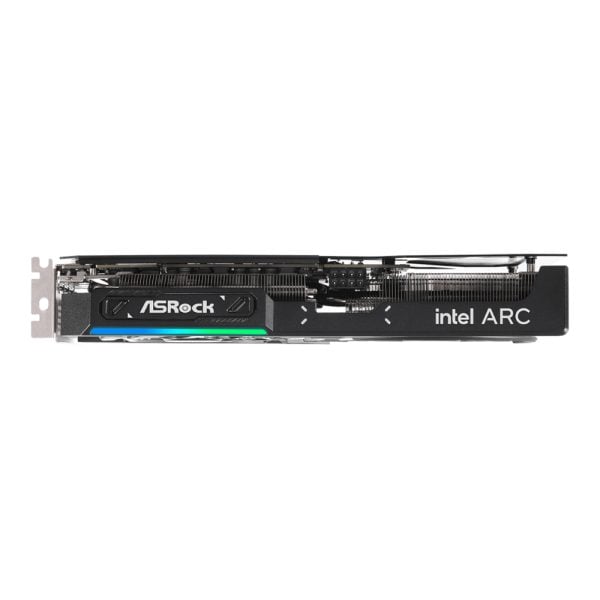

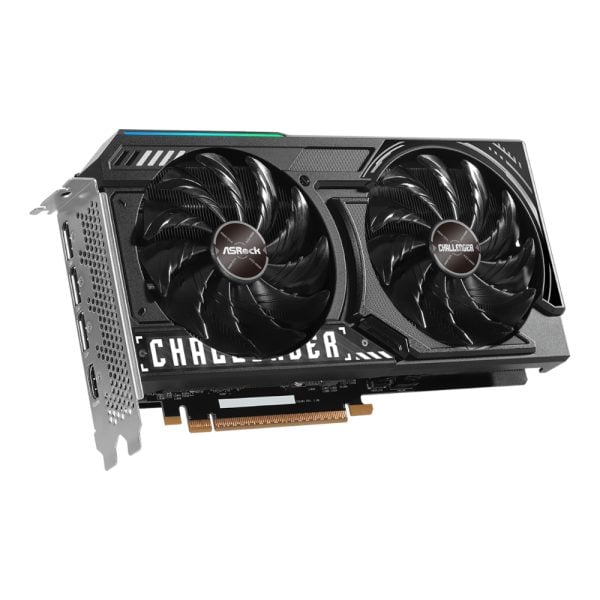

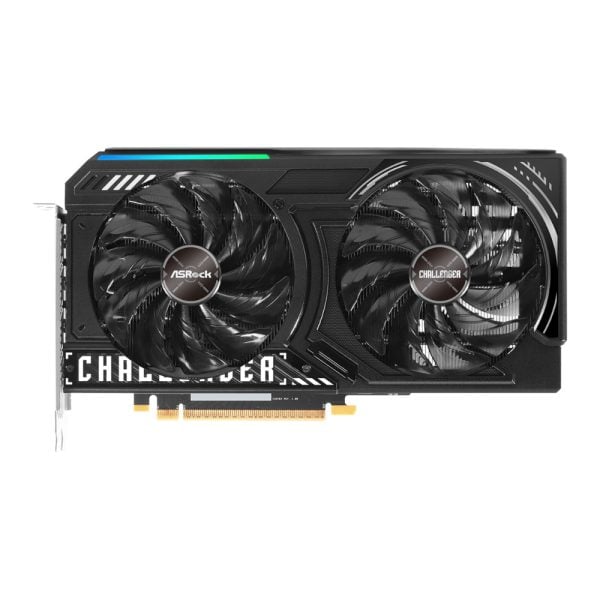

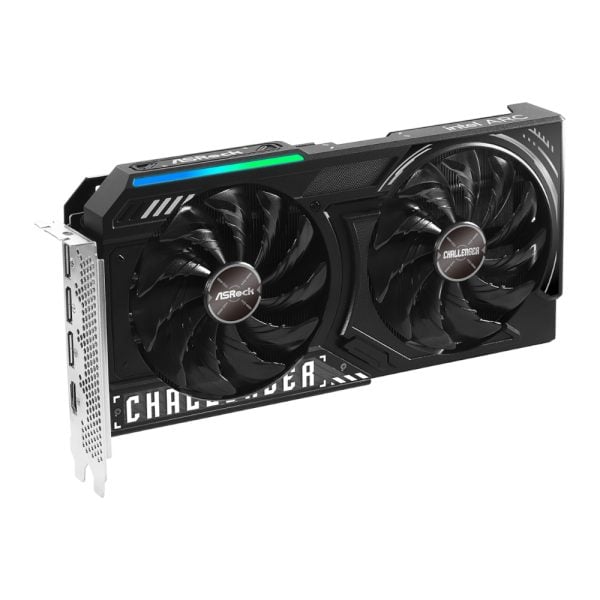

The ASRock Intel Arc B580 Challenger OC 12GB GDDR6 Graphics Card delivers a perfect balance of performance, cooling, and aesthetics. Designed for gamers and creators, this card combines powerful Intel® Arc™ B580 Graphics with a sleek design that features a stylish metal backplate. The Phantom Gaming look not only adds visual appeal but also reinforces the card’s construction. Additionally, a thermal pad on the backplate enhances heat dissipation, contributing to its overall efficiency during demanding tasks.

Optimized cooling is a key highlight of the B580 Challenger. The dual-fan design features ASRock’s custom Striped Axial Fan, which improves airflow using a stripe structure on the fan blades and a polished surface on the bottom side. These fans spin up under heavy loads to maintain optimal cooling and stop when temperatures drop for silent operation. The card’s heat pipes are designed to maximize contact with the GPU baseplate and stacked fins, efficiently transferring heat away from critical components.

ASRock has also integrated thoughtful engineering to improve thermal performance. The use of precise screw torque during assembly ensures optimal cooler mounting pressure, enhancing heat dissipation while protecting the GPU die. The innovative gap isolation between the heat pipes and stacked fins further boosts cooling efficiency, allowing the card to handle intense workloads with ease. A multi-colour LED indicator adds a touch of personalization, making the graphics card visually appealing in any setup.

Packed with cutting-edge features, the ASRock Intel Arc B580 Challenger OC boasts 12GB of 192-bit GDDR6 memory and an engine clock of up to 2740MHz. Built on Intel® Xe2-HPG Architecture, it supports advanced technologies like Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for stunning visuals. With support for resolutions up to 7680 x 4320 and multiple connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this card delivers exceptional performance for gaming and creative applications. Its robust build, efficient cooling, and sleek design make it a reliable choice for high-performance systems.

FEATURES:

• Base Clock: Up to 2740MHz / 19Gbps


• 12GB 192-bit GDDR6


• Intel® Arc™ B580 Graphics


• Intel^® X^e2-HPG Architecture


• Intel^® X^e Super Sampling 2 (Intel^® X^eSS 2)


• Intel^® X^e Matrix eXtentions (Intel^® XMX)


• PCI® Express 4.0 support


• Dual-Fan Design


• Striped Axial Fan

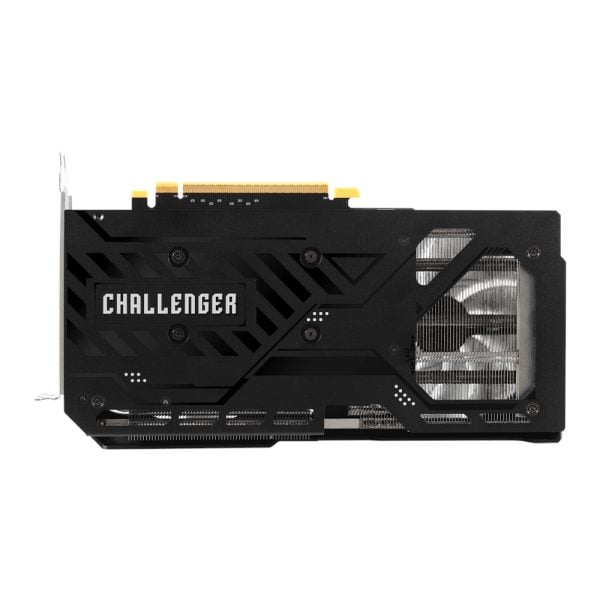

• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: Intel^® Arc B580


• Bus Standard: PCI® Express 4.0 x 8


• DirectX: 12 Ultimate


• OpenGL: 4.6


• Memory: 12GB GDDR6


• Engine Clock: 2740 MHz


• Intel® XMX Engines: 160


• Compute Units: 20


• Memory Clock: 19Gbps


• Memory Interface: 192-bit


• Resolution: Digital Max Resolution: 7680 x 4320


• Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10


• HDCP: Yes


• Multi-view: 4


• Recommended PSU: 650W


• Power Connector: 1 x 8-pin


• Colour: Black


• Product Dimensions: 24.9 x 13.2 x 4.1 cm


• Product Weight: 720g

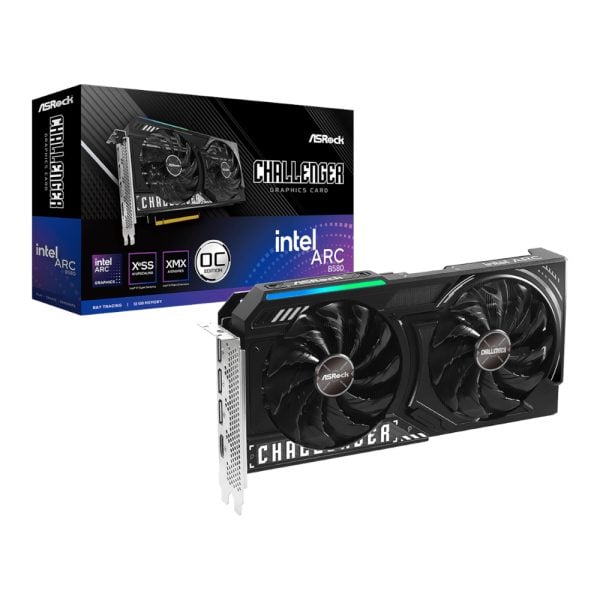

WHAT’S IN THE BOX:

• ASRock Intel Arc B580 Challenger OC 12GB GDDR6 192-BIT Graphics Card – Black x1


• Quick Install Guide x1
