The MSI B450M-A Pro Max II motherboard provides lightning-fast system boot-up, application, and game loading. Turbo M.2 is more than 5 times faster than a regular SATA III connection, with speeds up to 32 GB/s per device using Gen3 x4!

Core Boost is the most recent upgrade to MSI's motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimised circuit design results in a highly efficient power system that can output precise current to the CPU.

Reward your ears with studio-quality sound. MSI Audio Boost produces the best sound possible by utilising high-quality audio components. This allows you to enjoy stunning, studio-quality sound for the most immersive audio experience.

For clever business solutions, PRO Series motherboards combine stable functionality and high-quality assembly. PRO Series motherboards are designed to meet any professional workflow, making life easier for businesses and office use.

FEATURES:

• Supports 1st, 2nd and 3rd Gen AMD^® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD^® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4


• Supports DDR4 memory up to 4133 (OC) MHz


• Turbo M.2: Running at PCI-E Gen3 x4 maximises performance for NVMe-based SSDs.


• Audio Boost: Reward your ears with studio-grade sound quality.


• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.


• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

SPECIFICATIONS:

• Socket: AM4


• CPU Support:


• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics


• Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4


• Chipset: AMD B450


• DDR4 Memory: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)


• Memory Channel: Dual-Channel DDR4


• DIMM Slots: 2


• Max Memory (GB): 64


• PCI-E Gen: Gen3


• PCI-E x16: 1


• PCI-E x1: 1


• SATA III: 4


• M.2 Slot: 1


• TPM (Header): 1


• USB 3.2 Ports (Front): 2 (Gen1, Type A)


• USB 3.2 Ports (Rear): 4 (Gen1, Type A)


• USB 2.0 Ports (Front): 4


• USB 2.0 Ports (Rear): 2


• Serial Ports (Front): 1


• LAN port (Rear): Realtek® 8125 2.5Gigabit LAN controller


• Audio ports (Rear): Realtek® ALC897 Codec


• DVI-D: 1


• HDMI: 1


• DirectX: 12


• Form Factor: m-ATX


• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

WHAT’S IN THE BOX:

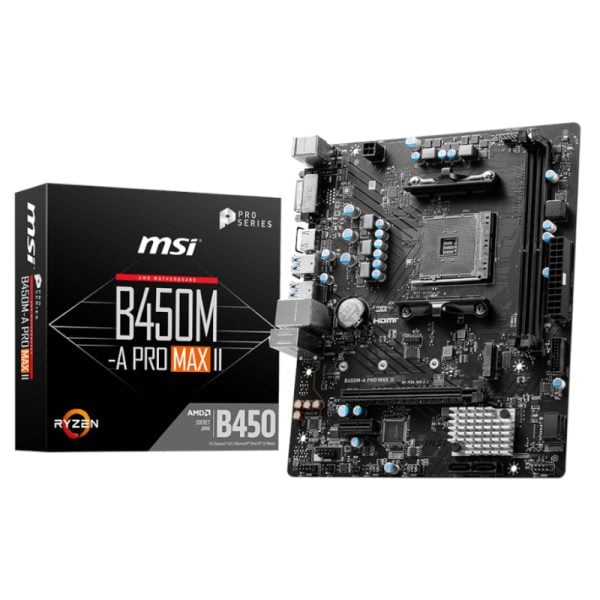

• MSI B450M-A PRO MAX II AMD AM4 mATX Gaming Motherboard – Black x1


• Driver DVD x1


• I/O Shield x1


• SATA Cable x2


• Quick Install Guide x1
