Turbo speed for the best security and convenience varies with load
Taking intelligence to the next level
D10 Turbo operate gates at MAX. 250Kg
Intelligent theft & break-in protection with integral vibration sensor
More secure manual release mechanism
Uninterrupted convenience with 24V battery backup
In-app diagnostics and logs monitoring system health in real time
Improved wire routing

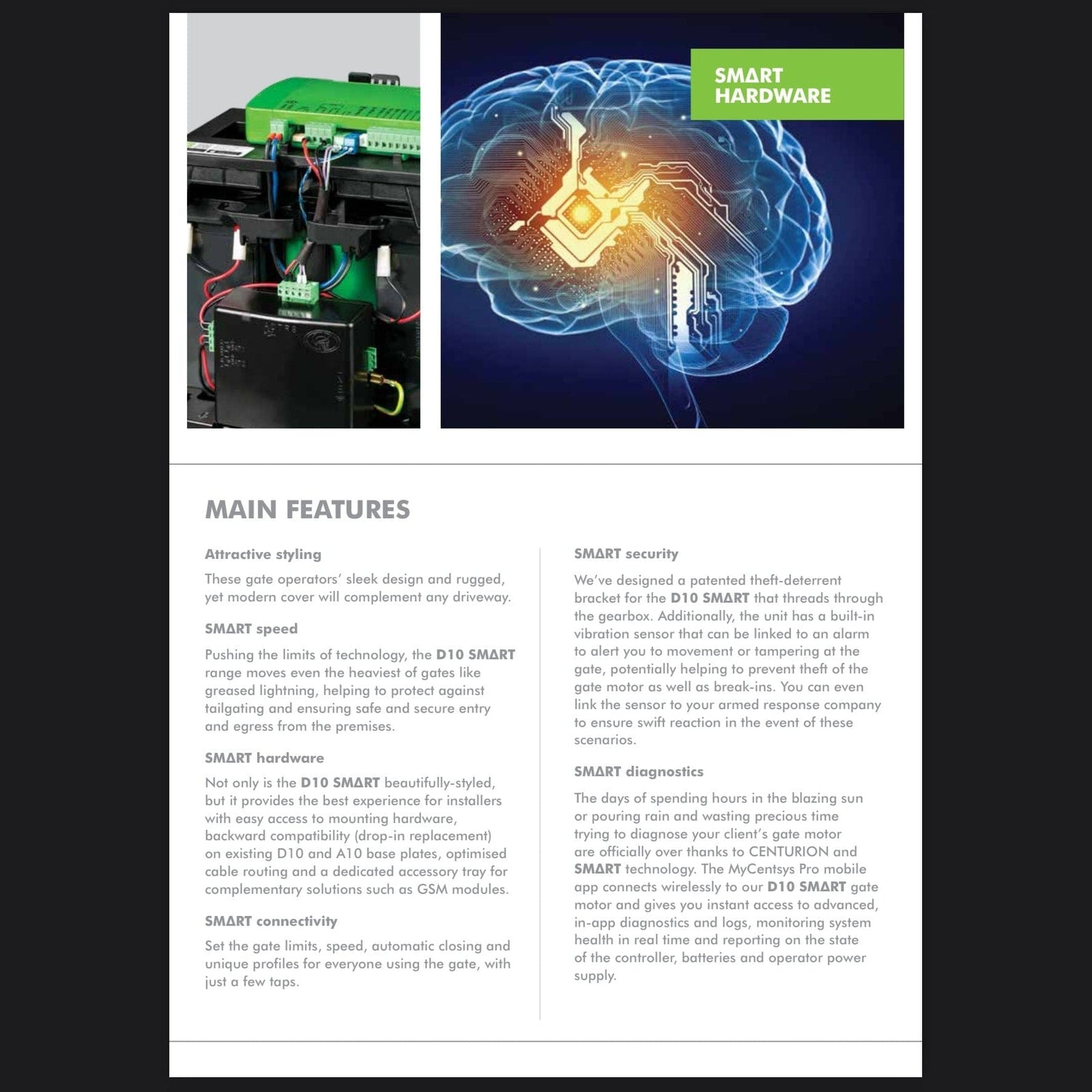

Main features:
Taking intelligence to the next level – a machine crafted for excellence and perfected through innovation
Pushing the limits of technology to bring you the ultimate in strength, security and endurance – suitable for gates weighing up to 1t with 750 daily operations
SMART hardware and SMART connectivity provide the best experience for installers
Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
More space and dedicated accessory tray for complementary solutions such as GSM devices
World-class reliability with a sealed gearbox and improved, more secure manual release mechanism
Die-cast aluminium gearbox coupled with a high-torque DC motor built for pure power and performance
Uncompromising security, uninterrupted convenience with 24V battery backup
Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
Accurate and safe position control incorporating reliable Hall Effect technology
Improved wire routing
SMART universal controller – compatible with all CENTURION SMART solutions

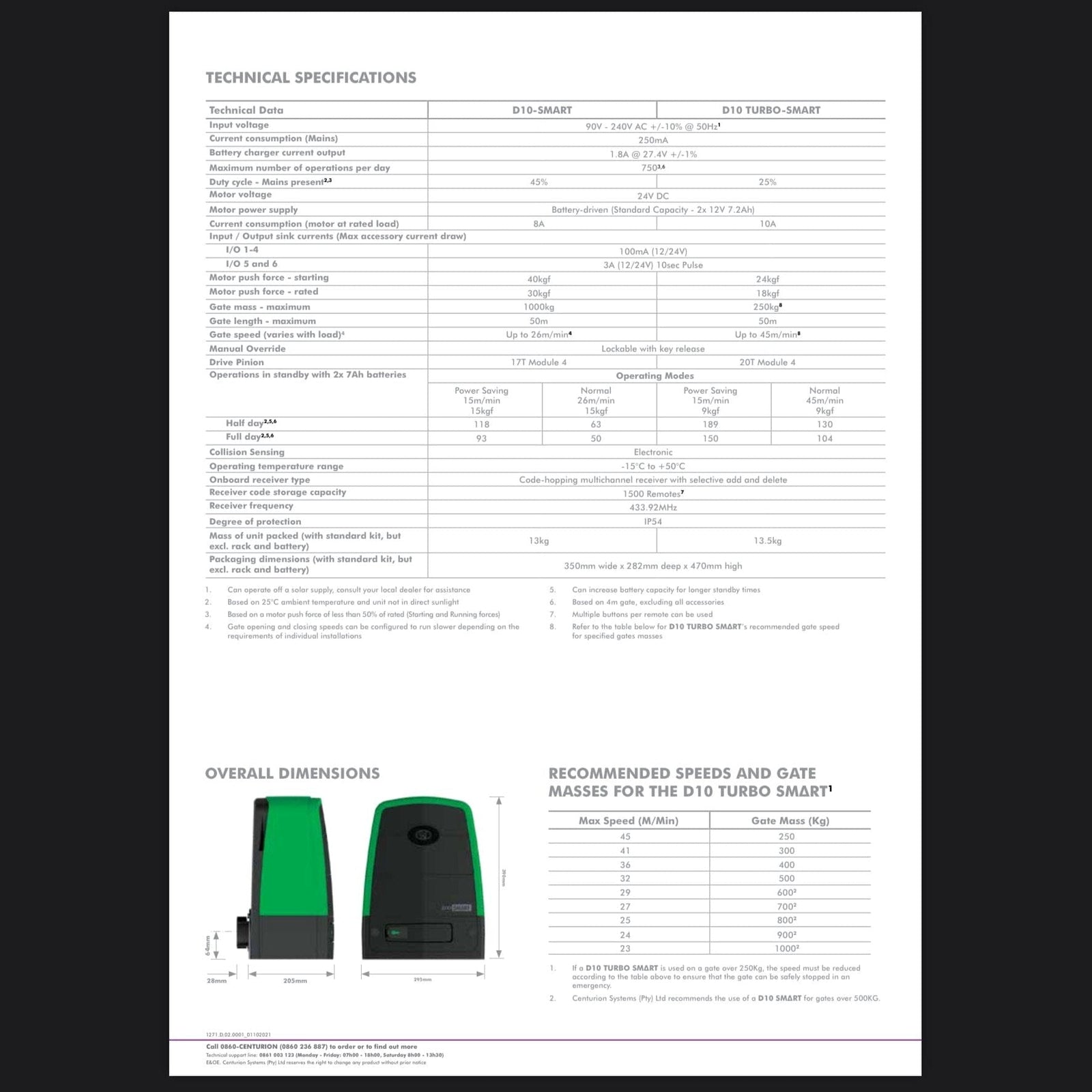

Technical Specifications:
D10-SMART
D10 TURBO-SMART
Input voltage
90V - 240V AC +/-10% @ 50Hz1
90V - 240V AC +/-10% @ 50Hz1
Current consumption (Mains)
250mA
250mA
Battery charger current output
1.8A @ 27.4V +/-1%
1.8A @ 27.4V +/-1%
Maximum number of operations per day
7503, 6
7503, 6
Duty cycle - Mains present2, 3
45%
25%
Motor voltage
24V DC
24V DC
Motor power supply
Battery-driven (Standard Capacity - 2x 12V 7.2Ah)
Battery-driven (Standard Capacity - 2x 12V 7.2Ah)
Current consumption (motor at rated load)
8A
10A
Input / Output sink currents (Max accessory current draw)
I/O 1-4
100mA (12/24V)
100mA (12/24V)
I/O 5 and 6
3A (12/24V) 10sec Pulse
3A (12/24V) 10sec Pulse
Motor push force - starting
40Kgf
24Kgf
Motor push force - rated
30Kgf
18kgf
Gate mass - maximum
1000Kg
250kg8
Gate length - maximum
50m
50m
Gate speed (varies with load)4
Up to 26m/min4
Up to 45m/min8
Manual Override
Lockable with key release
Lockable with key release
Drive Pinion
17T Module4
20T Module4
Operations in standby with 2x 7Ah batteries
Power saving (15m/min 15kgf) Normal (26m/min 15kgf)
Power saving (15m/min 9kgf) Normal (45m/min 9kgf)
Half day2, 5, 6
118 | 63
189 | 130
Full day2, 5, 6
93 | 50
150 | 104
Collision Sensing
Electronic
Electronic
Operating temperature range
-15°C to +50°C
-15°C to +50°C
Onboard receiver type
Code-hopping multichannel receiver with selective add and delete
Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity
1500 Remotes7
1500 Remotes7
Receiver frequency
433.92MHz
433.92MHz
Degree of protection
IP54
IP54
Mass of unit packed (with standard kit, but excl. rack and battery)
13Kg
13.5Kg
Packaging dimensions (with standard kit, but excl. rack and battery)
350mm wide x 282mm deep x 470mm high
350mm wide x 282mm deep x 470mm high
Can operate off a solar supply, consult your local dealer for assistance
Based on 25°C ambient temperature and unit not in direct sunlight
Based on a motor push force of less than 50% of rated (Starting and Running forces)
Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
Can increase battery capacity for longer standby times
Based on 4m gate, excluding all accessories
Multiple buttons per remote can be used
Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
