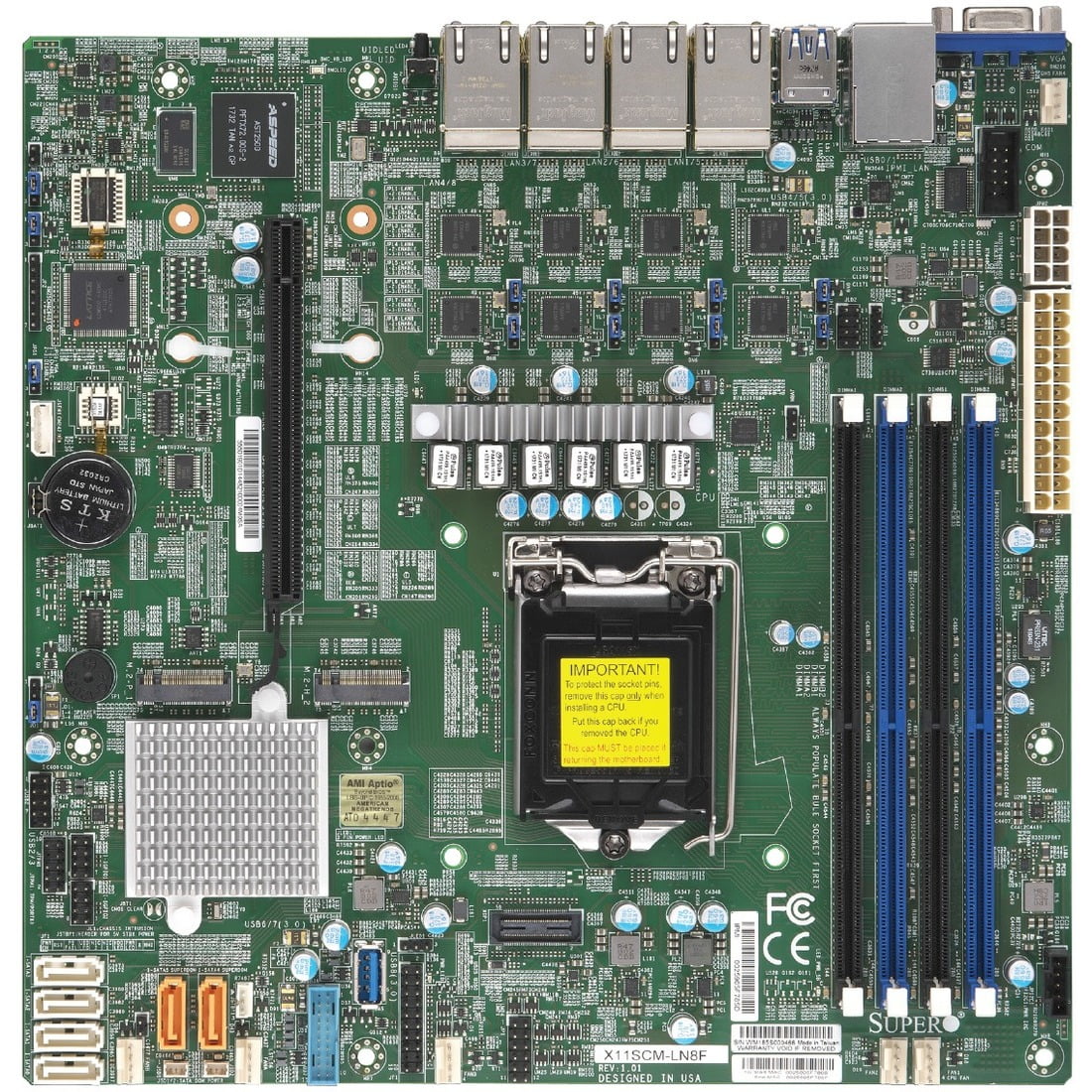

GUNMANSA Supermicro X11SCM-LN8F Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX
manufacturer

Supermicro X11SCM-LN8F Server Motherboard - Intel C246 Chipset - Socket H4 LGA-1151 - Micro ATX | SKU MB-X11SCML

International Product - 10 days handling time.

Import duties and taxes not included in price.

Experience responsive performance, power and adaptability with the compatible Intel Celeron processor

Supported 0 RAID levels provide data reliability and fault tolerance

Micro ATX form factor for your accessibility convenience and simplicity of usage for Server Motherboard

With 2 USB 2.0 ports, connect devices for a quick data movement

128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Fiyat
R 8,729
Ödeme sırasında hesaplanan vergiler ve nakliye
Stokta yalnızca 1 kaldı!
Description
Main Features
  • Chipset ManufacturerIntel
  • Chipset ModelC246
  • Total Processor Supported1
  • Processor SocketSocket H4 LGA-1151
  • Processor Supported
    • Celeron
    • Pentium
    • Xeon
    • Core i3
  • Number of Memory Slots4
  • Memory Form Factor
    • DIMM
    • UDIMM
  • Maximum Memory Supported128 GB
  • Memory TechnologyDDR4 SDRAM
  • Memory Speed Supported
    • 2666 MHz
    • 2400 MHz
    • 2133 MHz
  • Controller TypeSerial ATA/600
  • RAID SupportedYes
  • RAID Levels
    • 0
    • 1
    • 5
    • 10
  • Onboard VideoOn-board Video Chipset
  • Graphics Controller ModelAST2500
  • Gigabit EthernetYes
  • Total Number of Expansion Slots1
  • Total Number of PCI Express Slots1
  • Number of PCI Express x16 Slots1
  • Total Number of USB Ports4
  • Number of USB 2.0 Ports2
  • Number of USB 3.1 Ports2
  • VGAYes
  • Number of Network (RJ-45) Ports8
  • Number of SATA Interfaces6
  • Number of M.2 Interfaces1
  • Total Number of Onboard USB Ports5
  • Number of Onboard USB 2.0 Ports2
  • Number of Onboard USB 3.1 Ports3
  • Form FactorMicro ATX
  • Width9.6"
  • Depth9.6"
  • Package Contents
    • X11SCM-LN8F Server Motherboard
    • 1 x Motherboard Quick Reference Guide
    • 6 x I/O Cables
    • 1 x STD I/O Shield for X11SCM-LN8F with EMI Gasket
  • CompatibilitySupermicro Chassis:
    • SC813MFTQC-350CB2
    • SC813MFTQC-R407CB
    • SC512F-350B1
    • SC515-350
    • SC515-R407
    • SC514-R407C
    • SC113MTQ-R400C
    • 1U Heatsink: SNK-P0046P
    • SC825TQC-R740LPB
    • 2U Heatsink:SNK-P0046A4
    Supermicro Server:
    • SYS-1019C-FHTN8
  • Environmentally FriendlyYes
  • Environmental ComplianceRestriction of Hazardous Substances (RoHS)
  • Limited Warranty1 Year
Marketing Information

Xeon® E-2100 Boards / Socket H4 (LGA 1151)

The new Supermicro Building Block Solutions® for the Intel® Xeon® E-2100 series include new server-class motherboards offering a wide range of high performance, network appliance and embedded/IoT applications.

Package contents
  • X11SCM-LN8F Server Motherboard
  • 1 x Motherboard Quick Reference Guide
  • 6 x I/O Cables
  • 1 x STD I/O Shield for X11SCM-LN8F with EMI Gasket
