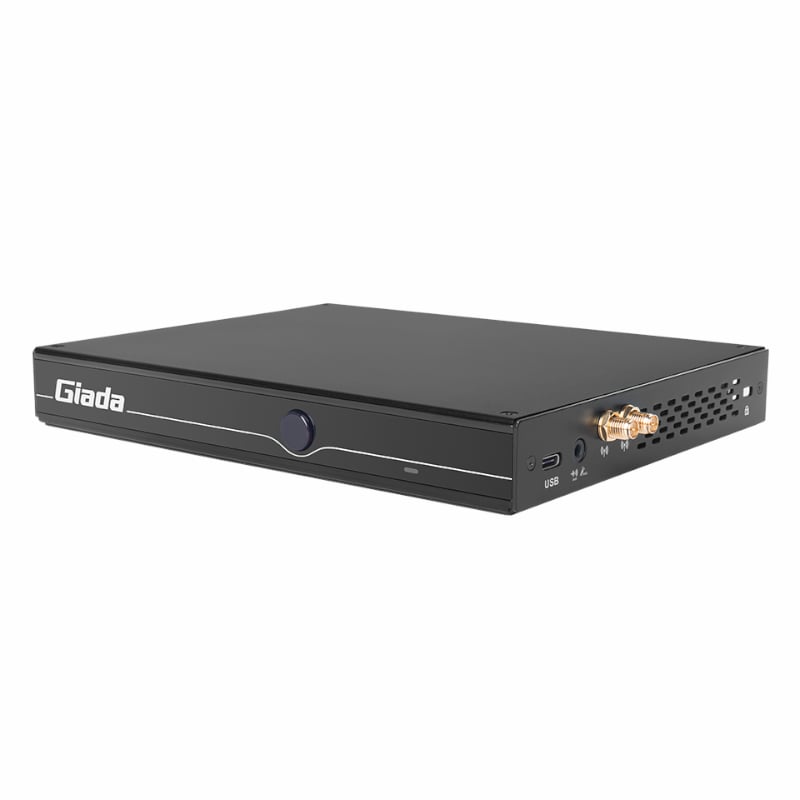

Giada D613 i3-1315U 2x DDR4 3200Mhz

The Giada D613, armed with an Intel Raptor Lake Core i3-1315U processor, introduces a new era of performance and efficiency. The processors feature a combination of high-performance and efficient cores, working in harmony to optimise power consumption without compromising processing power. With support for 4 simultaneous 4K60 displays and hardware-accelerated video encoding and decoding, Giada D613 delivers stunning visuals and an immersive multimedia experience. Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection. 5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency, and massive capacity. The Quectel®-RM50XQ 5G module was certified to be compatible with D613.

FEATURES:

• Intel® Core™ i3-1315U processor


• 4 x HDMI, Supporting 4K Display


• 2 x SO-DIMM DDR4 Memory, Up to 64GB


• 1 x M-key M.2 (2242/2280) for SSD


• Supporting RJ45, Wi-Fi 6 (CNVi), and 3G/4G/5G Ethernet Access

SPECIFICATIONS:

• Processor:


• CPU: Intel® Core™ i3-1315U processor


• Frequency: 3.30GHz (Up to 4.50GHz )


• Cores: 6


• BIOS: AMI EFI 64 Mbit


• Memory:


• Type: DDR4-3200MHz


• Socket: 2 x SO-DIMM


• Max Size: 64GB


• Graphics:


• GPU: Intel® UHD Graphics


• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC


• HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)


• Network:


• Controller: 1 x Intel® i219LM Gigabit Ethernet


• Interface: 1 x RJ45


• Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot


• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)


• I/O:


• USB: 1 x USB3.2 Gen2, 2 x USB2.0


• USB Type-C: 1 x USB Type-C3.2 Gen2


• Serial Port: 1 x RS232


• Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)


• Button: 1 x Power on, 1 x CLR-CMOS


• Storage:


• M.2: 1 x M-key M.2 (2242/2280) for NVMe


• JAHC Tech:


• WatchDog Timer: 0~255 Second Time Out Support


• Auto Power On: Power Activated Automatically Start


• Operation System:


• Windows: Windows 11 (64bit)


• Linux: Linux Ubuntu (64bit)


• Chrome: Chrome OS


• Power:


• Power Type: DC-IN


• Input Voltage: 19 V/4.74 A


• Environment:


• Operating Temperature: 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow


• Relative Humidity: 95%@40℃ (non-condensing)


• Certification: CE, FCC Class B, CCC


• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)


• Construction: Metal


• Colour: Black


• Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

• Giada D613 Intel Core i3 High-end Digital Signage Player – Black x1


• Wi-Fi Antenna x2


• User Manual x1

24 Months Warranty

Our products are covered by a manufacturer’s warranty ranging from 6 months up to a lifetime, subject to the specific item. For detailed warranty information, kindly enquire with our support team.
