MAP PRO

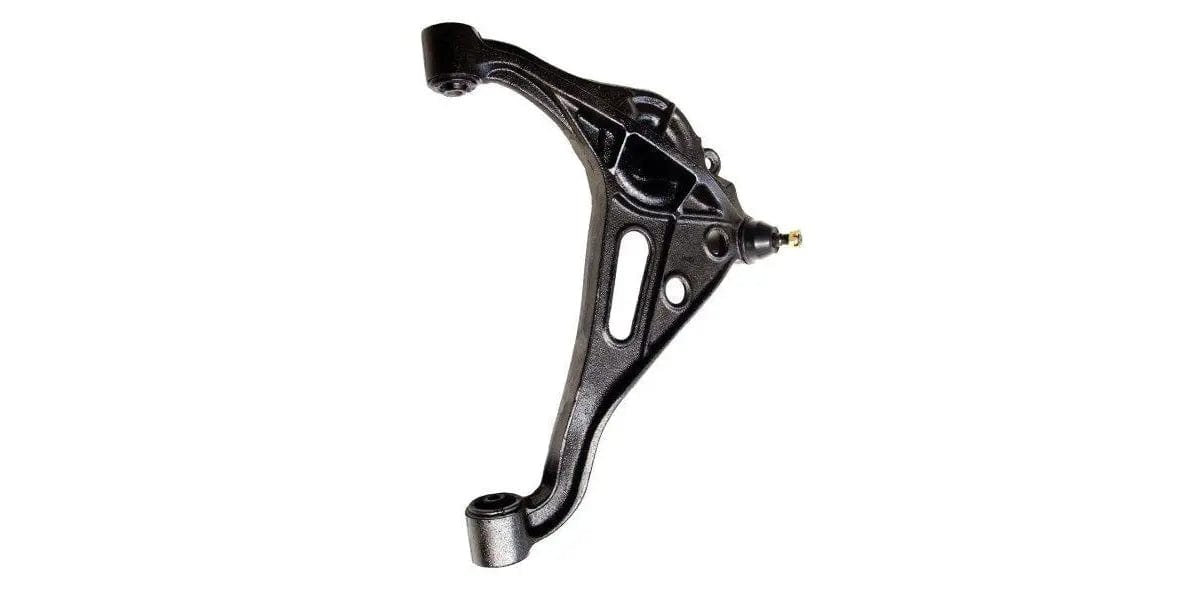

Front Right Lower Control Arm for Suzuki Grand Vitara I - MAP-100033

ราคา
R 3,444
ภาษีและ ค่าขนส่ง คำนวณเมื่อชำระเงิน
10 มีในสต็อกและพร้อมส่ง
Description


Vehicle Fitment & Part Details




This front right lower control arm is listed for the Suzuki Grand Vitara I (FT, HT) with OE reference 45201-65D00. 100 mm overall height, 16 mm fitted diameter, M14x1.5 external thread. Confirm compatibility by matching the listed fitment details, OEM reference numbers, and VIN/engine/chassis information where variants exist.



Key Details



SKU

MAP-100033

Component

Lower Control Arm

Position

Front Right

Primary Fitment

Suzuki Grand Vitara I (FT, HT) G16B Petrol 1.6 4x4 (1998-2003)

Specs

100 mm overall height, 16 mm fitted diameter, M14x1.5 thread, 12 / 14 mm inner diameters



OEM Reference Numbers




  • Suzuki: 45200-60860, 45200-60863, 45201-65D00, 45201-65D00-000, 45201-65D01, 45201-65D01-000, 45201-67D01, 45201-67D01-000, 45202-65D00, 45202-67D01-000



Product Specifications
































Specification Value
Overall Height 100 mm
Fitted Diameter 16 mm
External Thread M14x1.5
Inner Diameter 12 mm
Inner Diameter 1 14 mm



Vehicle Fitment


Includes 12 supplied applications.



View Full Vehicle Fitment (12 applications)














































































































Model Chassis Variant Engine Code Power Years
Grand Vitara I FT, HT 1.6 4x4 (SQ416) G16B 69kW/94PS 1998-2003
Grand Vitara I FT, HT 2.0 4x4 (TA52, TL52, SQ420) J20A 94kW/128PS 1998-2003
Grand Vitara I FT, HT 2.5 V6 24V 4x4 (TD62, SQ625) H 25 A 106kW/144PS 1998-2003
Grand Vitara I FT, HT 2.5 V6 24V 4x4 (SQ625) H 25 A 116kW/158PS 2001-2003
Grand Vitara I FT, HT 2.7 4x4 (JA627, SQ627W2) H 27 A 127kW/173PS 2001-2003
Grand Vitara I FT, HT 2.7 4x4 (TX92, JA627) H 27 A 135kW/184PS 2003
Grand Vitara I FT, HT 2.0 TD 4x4 (SQ420D) RF 64kW/87PS 1998-2003
Grand Vitara I FT, HT 2.0 HDI 110 16V 4x4 RHW 80kW/109PS 2001-2005
Grand Vitara I FT, HT 2.0 TD 4x4 (SQ 420D) RFM 63kW/86PS 2000-2005
Grand Vitara I FT, HT 2.0 HDI 110 4x4 RHZ 80kW/109PS 2001-2003
Grand Vitara I Open Off-Road GT 1.6 4x4 (SQ416) G16B 69kW/94PS 1998-2003
Grand Vitara I Open Off-Road GT 2.0 4x4 (SQ420) J20A 94kW/128PS 1998-2003




Fitment Notes



  • Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.



Installation / Use / Maintenance Tips



  • Compare the new control arm to the removed unit before installation to confirm mounting geometry, bush diameters, and ball joint thread match.

  • Inspect related bushes, ball joints, and fasteners for wear before fitting the new arm.

  • Tighten all fasteners to the vehicle manufacturer's specified torque values with the suspension loaded.

  • Check wheel alignment after installation where suspension geometry may be affected.



Common Questions


Will this front right lower control arm fit my Suzuki Grand Vitara?

This part (MAP-100033) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.



What OEM part numbers does this cross-reference?

Cross-reference numbers are listed in the OEM Reference Numbers section above. Match at least one to your original part before ordering.



How do I confirm fitment if there are multiple variants?

Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.


Warranty

Warranty

Our products are covered by a manufacturer’s warranty ranging from 6 months up to a lifetime, subject to the specific item. For detailed warranty information, kindly enquire with our support team.
