MAP Pro

STD 000

STD 000
ราคา
R 754
ภาษีและ ค่าขนส่ง คำนวณเมื่อชำระเงิน
10 มีในสต็อกและพร้อมส่ง
Description

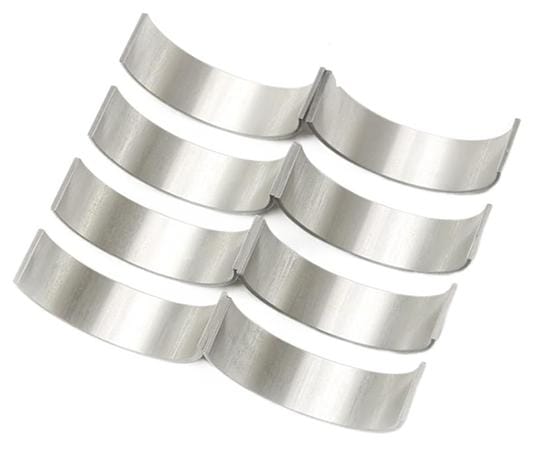

Conrod Big End Bearing Set for VW CADDY IV Box Body/MPV (SAA, SAH), AUDI A1 & VW CADDY ALLTRACK - MAP-100850

This conrod big end bearing set is a replacement part for the vehicle applications listed below. Supplied without hold-down cams in a 4 cylinder set. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.

Key Details

SKU
MAP-100850
Component
Conrod Big End Bearing Set
Brand
MAP Pro
OEM References
  • VW: 04E 105 701
  • VW: 04E 105 701 N
  • VW: 04E 105 701 D
  • VW: 04E 105 701 K
Primary Fitment
VW CADDY IV Box Body/MPV (SAA, SAH) 1.0 TSI CHZG; DKRE, Petrol 1.0, 75kW/102PS 999ccm (11/2015-09/2020)
Included
4 cylinder set
Specs
Without hold-down cams; size options STD 000, 010/0.25, 020/0.50, 030/0.75, 040/1.00; Housing size-maximum 50.612; Shaft size-maximum 47.785; Thickness 1.406; Width 16.20

Key Benefits

  • Size options supplied: STD 000, 010/0.25, 020/0.50, 030/0.75, 040/1.00.
  • Dimensions supplied: Housing size-maximum 50.612, Shaft size-maximum 47.785, Thickness 1.406, Width 16.20.
  • OEM reference numbers listed for cross-checking before ordering: 04E 105 701, 04E 105 701 N, 04E 105 701 D, 04E 105 701 K.

OEM Reference Numbers

  • VW: 04E 105 701
  • VW: 04E 105 701 N
  • VW: 04E 105 701 D
  • VW: 04E 105 701 K

Product Specifications

Specification Value
Configuration Without hold-down cams
Set 4 cylinder set
Size Options STD 000, 010/0.25, 020/0.50, 030/0.75, 040/1.00
Housing size-maximum 50.612
Shaft size-maximum 47.785
Thickness 1.406
Width 16.20

Vehicle Fitment

  • VW
    • CADDY IV Box Body/MPV (SAA, SAH) 1.0 TSI CHZG; DKRE, Petrol 1.0, 75kW/102PS 999ccm 11/2015-09/2020
    • CADDY IV MPV (SAB, SAJ) 1.0 TSI CHZG; DKRE, Petrol 1.0, 75kW/102PS 999ccm 11/2015-09/2020
    • CADDY IV MPV (SAB, SAJ) 1.0 TSI DKRD, Petrol 1.0, 62kW/84PS 999ccm 11/2018-07/2019
    • CADDY ALLTRACK IV MPV (SAB) 1.0 TSI CHZG, Petrol 1.0, 75kW/102PS 999ccm 11/2015-09/2020
    • CADDY ALLTRACK IV MPV (SAB) 1.0 TSI DKRD, Petrol 1.0, 62kW/84PS 999ccm 11/2018-07/2019
    • CADDY ALLTRACK IV Box Body/MPV (SAA) 1.0 TSI CHZG, Petrol 1.0, 75kW/102PS 999ccm 11/2015-09/2020
    • GOLF VII (5G1, BQ1, BE1, BE2) 1.0 TSI DKRF; CHZD, Petrol 1.0, 85kW/115PS 999ccm 05/2015-08/2020
    • GOLF VII (5G1, BQ1, BE1, BE2) 1.0 TSI CHZC, Petrol 1.0, 81kW/110PS 999ccm 11/2016-08/2020
    • GOLF VII (5G1, BQ1, BE1, BE2) 1.0 TSI DKLB; CHZK, Petrol 1.0, 63kW/86PS 999ccm 01/2017-07/2019
    • GOLF VII Variant (BA5, BV5) 1.0 TSI DKRF; CHZD, Petrol 1.0, 85kW/115PS 999ccm 05/2015-08/2020
    • GOLF VII Variant (BA5, BV5) 1.0 TSI CHZC, Petrol 1.0, 81kW/110PS 999ccm 11/2016-08/2020
    • GOLF VII Variant (BA5, BV5) 1.0 TSI DKLB; CHZK, Petrol 1.0, 63kW/86PS 999ccm 01/2017-07/2019
    • GOLF SPORTSVAN VII (AM1, AN1) 1.0 TSI DKRF; CHZD, Petrol 1.0, 85kW/115PS 999ccm 05/2015-08/2020
    • GOLF SPORTSVAN VII (AM1, AN1) 1.0 TSI DKLB; CHZK, Petrol 1.0, 63kW/86PS 999ccm 05/2017-07/2019
    • GOLF SPORTSVAN VII (AM1, AN1) 1.0 TSI CHZC, Petrol 1.0, 81kW/110PS 999ccm 05/2017-07/2018
    • LOAD UP! (121, 122, BL1, BL2) 1.0 TSi CHZA, Petrol 1.0, 66kW/90PS 999ccm 05/2016-09/2018
    • POLO V (6R1, 6C1) 1.0 TSI CHZB, Petrol 1.0, 70kW/95PS 999ccm 11/2014-10/2017
    • POLO V (6R1, 6C1) 1.0 TSI CHZC, Petrol 1.0, 81kW/110PS 999ccm 11/2014-10/2017
    • POLO V Hatchback Van (6R1, 6C1) 1.0 TSI CHZB, Petrol 1.0, 70kW/95PS 999ccm 11/2014-10/2017
    • POLO V Hatchback Van (6R1, 6C1) 1.0 TSI CHZC, Petrol 1.0, 81kW/110PS 999ccm 11/2014-10/2017
    • POLO VI (AW1, BZ1, AE1) 1.0 TSI DKLA; CHZL; DXTA; DLAC, Petrol 1.0, 70kW/95PS 999ccm 06/2017-0/0
    • POLO VI (AW1, BZ1, AE1) 1.0 TSI CHZJ; DKJA; DKRF; DXUA, Petrol 1.0, 85kW/115PS 999ccm 09/2017-0/0
    • POLO VI (AW1, BZ1, AE1) 1.0 TGI DBYA, Petrol/Compressed Natural Gas (CNG) 1.0, 66kW/90PS 999ccm 09/2017-0/0
    • T-CROSS (C11, D31) 1.0 TSi DKLA; DUSB; CHZL; DXTA; DLAC, Petrol 1.0, 70kW/95PS 999ccm 12/2018-0/0
    • T-CROSS (C11, D31) 1.0 TSi DKJA; DKRF; DUSA; DXUA; DHSC, Petrol 1.0, 85kW/116PS 999ccm 12/2018-0/0
    • T-ROC (A11, D11) 1.0 TSI CHZJ; DKRF; DUSA, Petrol 1.0, 85kW/116PS 999ccm 07/2017-0/0
    • T-ROC Convertible (AC7, AC8) 1.0 TSI DKRF; DUSA, Petrol 1.0, 85kW/116PS 999ccm 12/2019-0/0
    • TAIGO (CS1) 1.0 TSI DUSA; DXUA, Petrol 1.0, 85kW/116PS 999ccm 11/2021-0/0
    • TOURAN (5T1) 1.0 TSI DKRB, Petrol 1.0, 85kW/116PS 999ccm 12/2018-07/2019
    • UP! (121, 122, BL1, BL2, BL3, 123) 1.0 TSI CHZA; DKLC, Petrol 1.0, 66kW/90PS 999ccm 05/2016-08/2019
    • UP! (121, 122, BL1, BL2, BL3, 123) 1.0 GTI DKRA, Petrol 1.0, 85kW/115PS 999ccm 11/2017-11/2023
  • AUDI
    • A1 (8X1, 8XK) 1.0 TFSI CHZB; DKLD, Petrol 1.0, 70kW/95PS 999ccm 03/2015-10/2018
    • A1 (8X1, 8XK) 1.0 TFSI CHZE, Petrol 1.0, 60kW/82PS 999ccm 01/2016-10/2018
    • A1 Sportback (8XA, 8XF) 1.0 TFSI CHZB; DKLD, Petrol 1.0, 70kW/95PS 999ccm 03/2015-10/2018
    • A1 Sportback (8XA, 8XF) 1.0 TFSI CHZE, Petrol 1.0, 60kW/82PS 999ccm 01/2016-10/2018
    • A1 Sportback (GBA) 30 TFSI DKJA; DKRF; DUSA, Petrol 1.0, 85kW/116PS 999ccm 07/2018-0/0
    • A1 Sportback (GBA) 25 TFSI DKLA; DUSB; DLAC, Petrol 1.0, 70kW/95PS 999ccm 11/2018-0/0
    • A1 City Carver (GBH) 25 TFSI DKLA, Petrol 1.0, 70kW/95PS 999ccm 07/2019-06/2022
    • A1 City Carver (GBH) 30 TFSI DKJA; DKRF, Petrol 1.0, 85kW/116PS 999ccm 07/2019-06/2022
    • A3 Sportback (8VA, 8VF) 1.0 TFSI CHZD; DKRF, Petrol 1.0, 85kW/115PS 999ccm 07/2016-10/2020
    • A3 Sportback (8VA, 8VF) 30 TFSI DKRF, Petrol 1.0, 85kW/116PS 999ccm 07/2018-10/2020
    • A3 (8V1, 8VK) 1.0 TFSI CHZD, Petrol 1.0, 85kW/115PS 999ccm 07/2016-12/2017
    • A3 Limousine (8VS, 8VM) 1.0 TFSI CHZD, Petrol 1.0, 85kW/115PS 999ccm 07/2016-10/2020
    • A3 Limousine (8VS, 8VM) 30 TFSI DKRF, Petrol 1.0, 85kW/115PS 999ccm 07/2018-10/2020
    • Q2 (GAB, GAG) 1.0 TFSI CHZJ, Petrol 1.0, 85kW/115PS 999ccm 10/2016-10/2020
    • Q2 (GAB, GAG) 30 TFSI DKRF, Petrol 1.0, 85kW/115PS 999ccm 07/2018-10/2020

Fitment Notes

  • Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.

Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.

Engine Parts Return Policy Warning

Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.

Common Questions

Does this Conrod Big End Bearing Set fit my VW CADDY?
This part (MAP-100850) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.

What OEM part numbers does this replace?
Cross-references: 04E 105 701, 04E 105 701 N, 04E 105 701 D, 04E 105 701 K. Match at least one OEM reference to your original part before ordering.

What is included?
4 cylinder set.

What does MAP Pro mean?
MAP Pro is our house label for selected parts. The brand on the box can vary depending on current stock, but the listed fitment and key specifications remain the priority. MAP Pro should not automatically be understood as OEM or Genuine.

How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.

Browse more VW parts or search for more Conrod Big End Bearing Set.

Warranty

Warranty

Our products are covered by a manufacturer’s warranty ranging from 6 months up to a lifetime, subject to the specific item. For detailed warranty information, kindly enquire with our support team.
