ASROCK H810M-P Gen 5 Intel LGA 1851 M-ATX Motherboard

Next-gen Intel Core Ultra support on LGA1851 | PCIe 5.0 and Dual Channel DDR5 performance | Dual M.2 slots for fast, expandable storage | 8K-capable display outputs | Compact Micro-ATX form factor

Quick Specs

• Power next-generation Intel Core Ultra (Series 2) processors on the modern LGA1851 socket


• Enjoy blistering PCIe 5.0 bandwidth for your graphics card and next-gen storage


• Run up to 128GB of fast Dual Channel DDR5 memory with XMP 3.0 support


• Connect displays in stunning clarity up to 8K 60Hz via DisplayPort 1.4


• Build a compact, capable system with a Micro-ATX form factor that doesn't compromise on features

A Modern Foundation for Your Next Build

The ASRock H810M-P Gen5 is built for PC builders who want a capable, future-ready foundation without stepping up to a full-size ATX board. Built around the Intel H810 chipset and the LGA1851 socket, it supports Intel Core Ultra Processors (Series 2), giving you a genuine entry point into Intel's latest platform. Housed in a space-saving Micro-ATX form factor measuring 24.4 cm x 19.3 cm, it's equally at home in a compact everyday PC or a tidy first gaming rig.

Speed Where It Matters

Tired of motherboards that bottleneck your new hardware before it even gets going? The H810M-P Gen5 pairs a PCIe 5.0 x16 slot with Dual Channel DDR5 memory support across two DIMM slots, scaling up to 128GB total capacity. With XMP 3.0 support and memory speeds tuned for DDR5 performance, your CPU and graphics card get the bandwidth headroom to actually perform, rather than wait on the board around them.

Storage and Connectivity That Grows With You

Two M.2 slots give you room to expand as your needs change: a Hyper M.2 socket running at PCIe Gen4x4 (64 Gb/s) for a fast NVMe boot drive, plus a Key E slot ready for a WiFi/BT module. Four SATA3 6.0 Gb/s connectors handle additional drives, while USB 3.2 Gen1 and USB 2.0 ports front and rear keep your peripherals, drives, and accessories all connected without a scramble for adapters.

Display and Everyday Essentials, Sorted

Whether you're editing, gaming, or just running a productive desktop, the H810M-P Gen5 has the outputs to match. HDMI 2.1 delivers up to 4K at 120Hz, while DisplayPort 1.4 with DSC pushes as high as 8K at 60Hz or 5K at 120Hz, both with HDCP 2.3 support. Onboard 7.1 channel HD audio via the Realtek ALC897 codec and Gigabit LAN through the Realtek RTL8111H controller round out a board that covers the essentials without asking you to add anything extra.

Features

• Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket


• Intel H810 chipset in a space-saving Micro-ATX form factor


• Dual Channel DDR5 memory, up to 128GB across 2 DIMM slots, with XMP 3.0 support


• PCIe 5.0 x16 slot for next-generation graphics card bandwidth


• Dual M.2 slots: a Hyper M.2 PCIe Gen4x4 (64 Gb/s) socket for NVMe boot storage, plus a Key E slot for WiFi/BT modules


• 4 x SATA3 6.0 Gb/s connectors for additional storage drives


• HDMI 2.1 (up to 4K 120Hz) and DisplayPort 1.4 with DSC (up to 8K 60Hz) display outputs with HDCP 2.3


• 7.1 CH HD Audio via Realtek ALC897 codec and Gigabit LAN via Realtek RTL8111H

Specifications

• Socket: LGA 1851


• Chipset: Intel® H810


• Form Factor: Micro-ATX


• Memory Type: DDR5


• Memory Slots: 2


• Max Memory: 128 GB


• M.2 Slots: 2


• PCIe Version: PCIe 5.0 / PCIe 4.0


• Onboard Wi-Fi: No


• LAN Speed: Gigabit LAN 10/100/1000 Mb/s


• Rear USB Ports: 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports


• Colour: Black


• Warranty: 36 months


• Product Dimensions: 24.4 cm x 19.3 cm

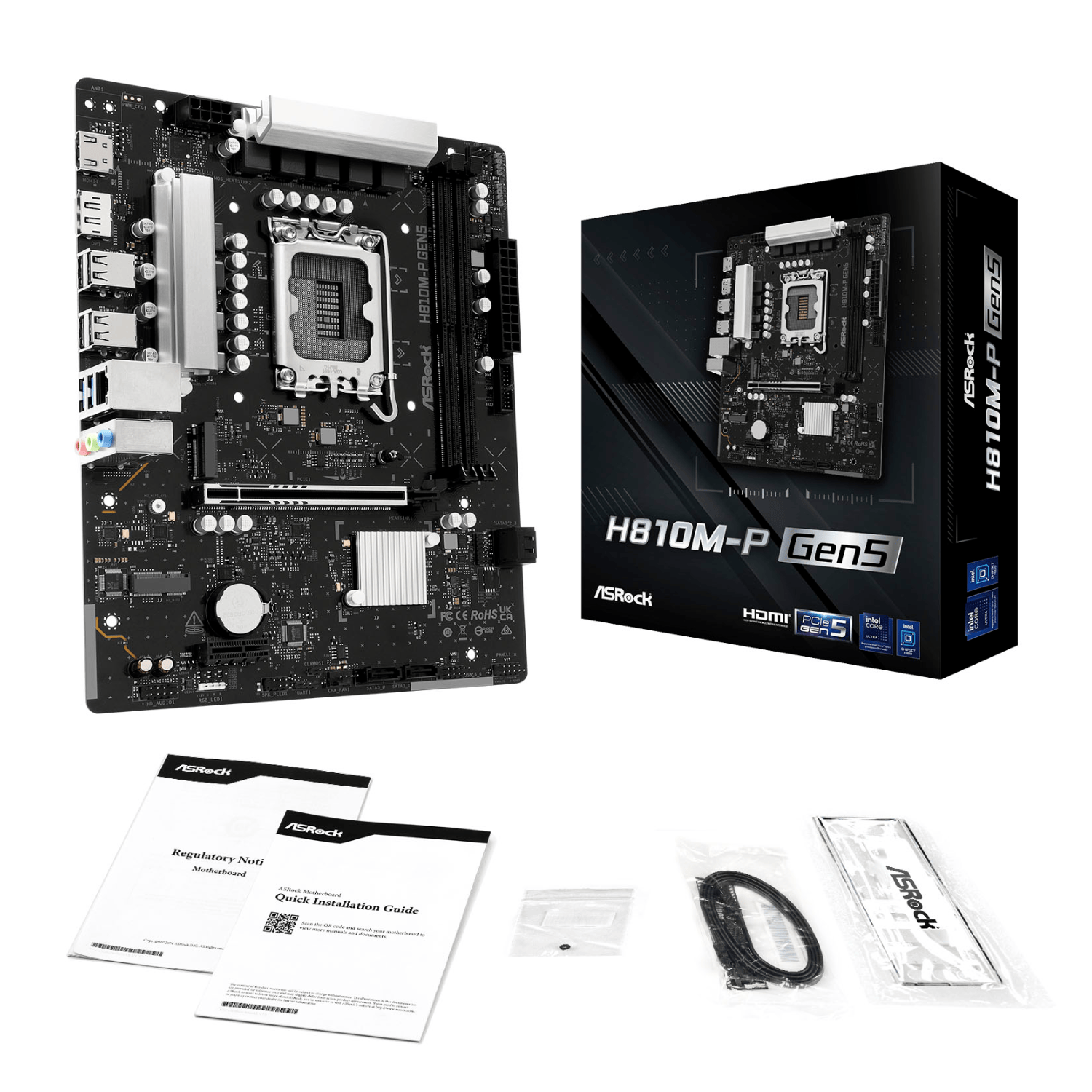

What's in the Box

• 1 x ASRock H810M-P Gen5 Motherboard


• 1 x I/O Shield


• 2 x SATA Data Cables


• 1 x Screw for M.2 Socket

Why ASRock

ASRock has built its reputation on giving builders genuine innovation at every price point, without cutting corners on reliability. The H810M-P Gen5 carries that commitment into the latest Intel platform, pairing PCIe 5.0 and DDR5 performance with the durability to back a long-term build. For South African PC builders after a dependable, future-ready foundation, ASRock delivers with confidence.
