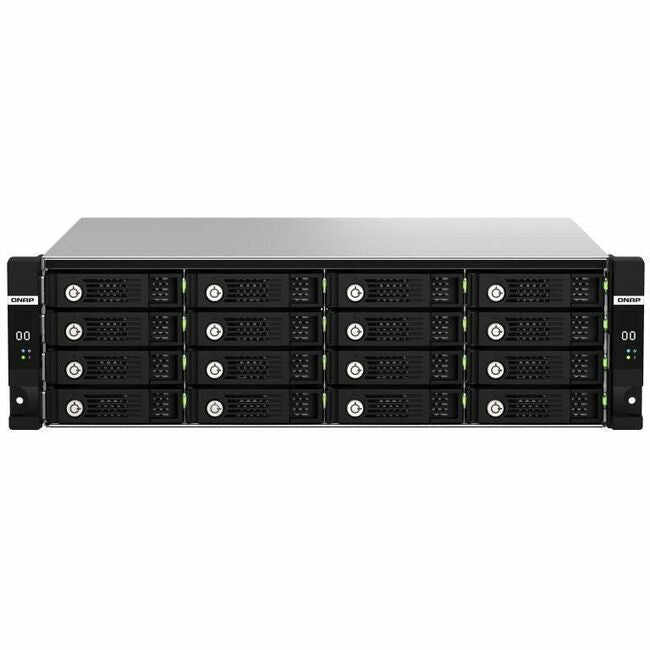

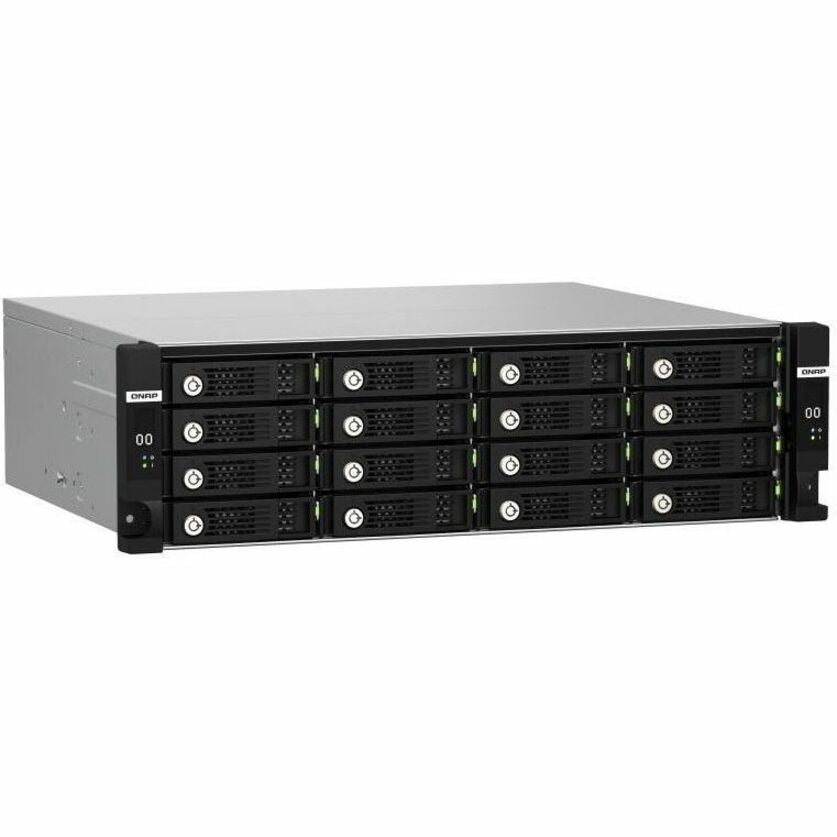

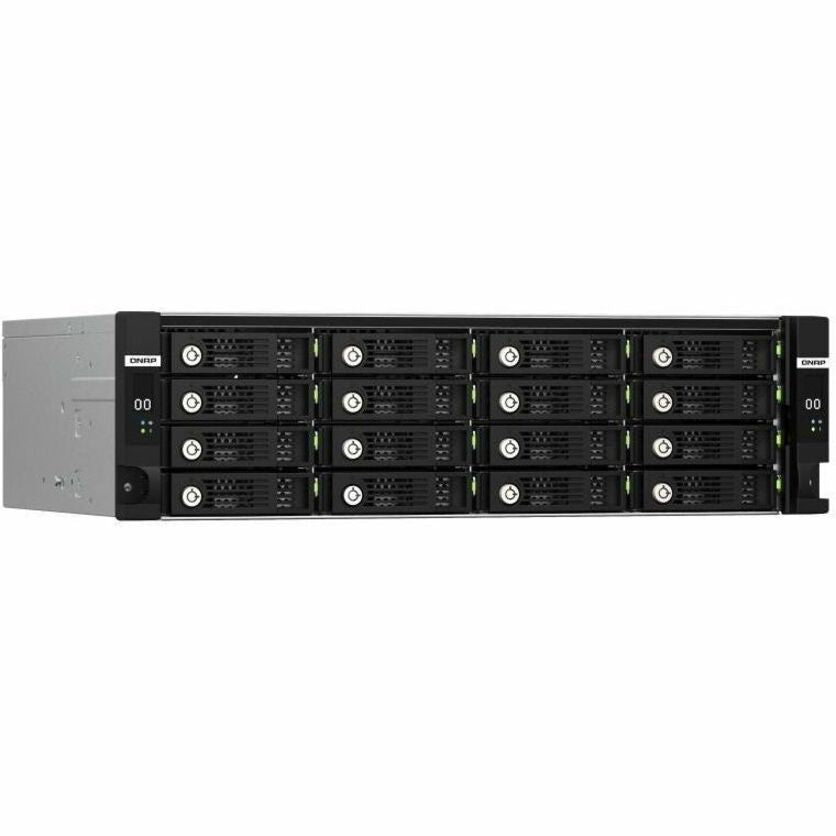

QNAP TL-R1620SDC Drive Enclosure 12Gb/s SAS, SATA/600 - Mini-SAS HD Host Interface - 3U Rack-mountable | SKU QP-R1620SD

International Product - 10 days handling time.

Import duties and taxes not included in price.

Provides amazing solution for expanding PC storage

Ensures convenient and safe installation with rack mounting facility

Hot Swappable Bays - 16 x HDD Supported - 16 x SSD Supported - 16 x Total Bay - 16 x 2.5"/3.5" Bay

Pris
R 84,451
Skatter och frakt beräknas i kassan
Endast 1 kvar i lager!
Description
Main Features
  • Number of Hard Drives Supported16
  • Number of Hard Drives Installed0
  • Number of Solid State Drive Supported16
  • Number of Solid State Drive Installed0
  • Non-RAID ModeJBOD
  • Number of Total Expansion Bays16
  • Number of 2.5"/3.5" Bays16
  • Hot Swappable BaysYes
  • Drive Interface
    • 12Gb/s SAS
    • SATA/600
  • Host InterfaceMini-SAS HD
  • Operating System SupportedWindows
  • Cooling FanYes
  • Form FactorRack-mountable
  • Rack Height3U
  • Height5.2"
  • Width19"
  • Depth16.7"
  • Weight (Approximate)30.69 lb
  • Package Contents
    • TL-R1620SDC Drive Enclosure
    • 2 x Power Cord
    • 2 x Hard disk tray key
    • 2 x 0.5m Mini SAS cable (SFF-8644 to SFF-8644)
    • 48 x Flat head screw (for 2.5" HDD)
    • 64 x Flat head screw (for 3.5" HDD)
    • Quick Installation Guide (QIG)
  • CompatibilityQnap Storage Systems
  • Limited Warranty5 Year
Marketing Information

TL-R1620Sdc | Dual-controller SAS 12Gb/s storage expansion for enterprises

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom® SAS DataBolt™ bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.

  • 1Flexibly and economically expand the storage space of a dual-controller QNAP NAS for petabyte-level storage capacity.
  • 2Dual path mini-SAS design with a redundant power supply for enhanced system reliability.
  • 3QNAP dual-controller NAS can detect JBOD connections, and enter missing mode protection to prevent data corruption.
  • 4DataBolt™ bandwidth optimization combines two 6Gb/s connections into one 12Gb/s data stream to achieve faster speed with existing 6Gb/s infrastructure.
  • 5Manage the storage space and settings of the connected TL-R1620Sdc with Storage Manager on the host NAS.
  • 6The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. (Rail kit RAIL-B02 requires optional purchase.)

Failure-resistant with a dual-controller, dual-path design

Connect the TL-R1620Sdc to a dual-controller QNAP NAS and create a redundant cross loop configuration that provides expansion units with redundant paths to the base NAS and protection between JBOD connections. If one or more paths to the TL-R1620Sdc disconnect, other expansion units can still communicate with the base NAS. This is essential for intermachine data protection and capacity scalability for uninterrupted mission-critical enterprise tasks.

Connect up to 7 expansion units for petabyte-level storage capacity

The base NAS requires QES 2.1.1 (or later) and either Mini-SAS HD (SAS 12Gb/s SFF-8644), Mini-SAS (SAS 6Gb/s SFF-8088) ports or a PCIe-based SAS expansion card.

Highly efficient, reliable and scalable

The TL-R1620Sdc is powered by a low-power 28nm SAS35x28R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Both controllers have three Mini-SAS HD (SFF-8644) ports, and each SAS wide port combines four SAS 12Gb/s channels for up to 48Gbps bandwidth.

Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure

Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sdc has an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sdc uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sdc at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure.

Package contents
  • TL-R1620SDC Drive Enclosure
  • 2 x Power Cord
  • 2 x Hard disk tray key
  • 2 x 0.5m Mini SAS cable (SFF-8644 to SFF-8644)
  • 48 x Flat head screw (for 2.5" HDD)
  • 64 x Flat head screw (for 3.5" HDD)
  • Quick Installation Guide (QIG)
