UniQue Metal HDMI Splitter - 1 Input HDMI Port, 2 Display Output HDMI Port, 4K Display, 3840x2160 Display Resolution, Up To 6GHz Video Bandwidth, 60/80Hz Vertical Frequency Range, 4 Device Port LED, Power ON/OFF Button, 5W Power Consumption, Retail Box, 3 Months Warranty

Product Overview

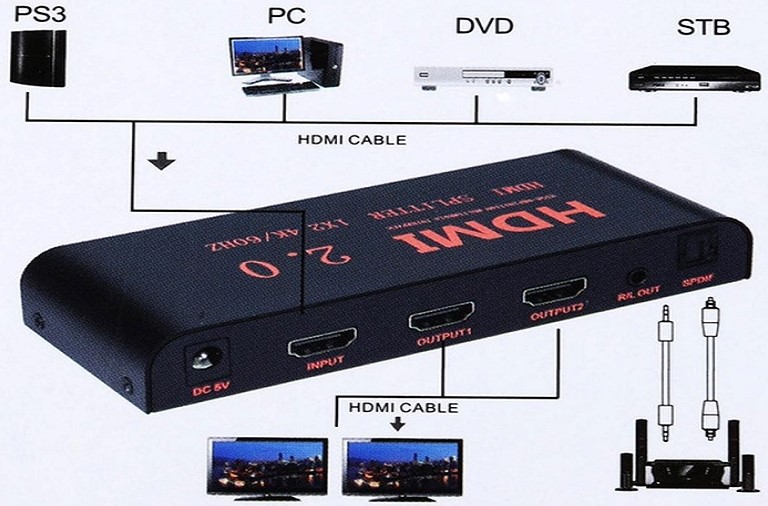

The Unique Metal HDMI Splitter (UQ-2PHDMIS-4K) supports one HDMI source input and two HDMI outputs with 4K@60Hz resolution, HDR, and 3D video formats. It features HDMI 2.0, HDCP 2.2 compliance, and supports deep color up to 12-bit with a video bandwidth up to 6GHz. Additional functions include built-in IR extension, serial port support, and EDID management for optimal device compatibility.

Features

•Support HDMI 2.0, HDCP2.2
•Support HDR
•Support 3D Video Format
•Support High Resolution Up to 3840x2160/60Hz
•Support The Max Baud Rate Of 6G And TMDS Clock Can Be Up To 600MHz
•Support 8/10/12 Bit Deep Color
Supports AWG26 HDMI Standard Cable:
1. When the resolution is 1080p and below, input up to 8 meters , output of up to 8 meters.
2. When the resolution is 4K, input and output of up to 8 meters.
•Built-in IR Extension function
•Supports Serial Port Online
•Supports EDID Management.

Specifications

•Product Code: UQ-2PHDMIS-4K
•Description: Unique Metal Splitter
•HDMI Source Input Port: 1
•Display Device Output Port: 2
•Source Port Connector: 19 Pin HDMI
•Display Port Connector: 19 Pin HDMI
•HDCP Compliant: Yes
•Device Port LED: 4
•Single Link Range: 3840x2160
•Video Bandwidth: Up to 6GHz
•Vertical Frequency Range: 60/85Hz
•Power Consumption(Max): 5W
•HDMI Version1.4: 2.0
