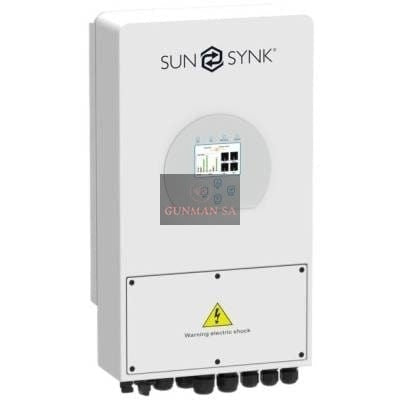

Sunsynk 12kW 3-phase inverter 48V 15.6kW Solar (MPPTs-2) SOL-I-SS-12 SPECIAL - GSA
Sunsynk 12kW 3-phase inverter 48V 15.6kW Solar (MPPTs-2) SOL-I-SS-12 SPECIAL - GSA
Couldn't load pickup availability
GUARANTEED SAFE AND SECURE CHECKOUT
1-3 DAYS SHIPPING ANYWHERE IN SOUTH AFRICA
Higer yields.
- Improve self-consumption ratio up to 80%, reducing your electricity bill.
- DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
- Two MPPT design, Max. efficiency of 97.6%.
User-friendly.
- LCD Touch screen and buttons, easy operation.
- Compatible with lithium-ion battery and lead acid battery.
- Web browser and mobile App monitoring supported.
Reliable.
- PV lighting protection, Anti-islanding protection, Leakage current protection etc.
- Support store energy from DG when needed, ensure the system working within 7*24H.
- IP65 protection degree, adapt to indoor and outdoor using.
- Automatically switch from on-grid to off-grid mode within 5ms.
- Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.
- Programmable charging and discharging schedule.
- Both wind turbines and solar panels can be connected as DC input power.
- Max. 16 units can be paralleled for higher system power.
- Retrofitting of existing solar system to energy storage system.
Features:
- 100% unbalanced output, each phase Max. output up to 50% rated power.
- 48V low voltage battery, transformer isolation design.
- 6 time periods for battery charging/discharging.
- Max. charging/discharging current of 240A.
- Frequency droop control.
- DC couple and AC couple to retrofit existing solar system.
- Support storing energy from diesel generator
Specifications
|
|
| Product Code | Sol-i-ss-12
|
| Battery Input Data | |
| Battery Type | Lead-acid or Li-lon |
| Battery Voltage Range (V) | 40-60V |
| Max. Charging Current (A) | 240A |
| Max. Discharging Current (A) | 240A |
| Charging curve | 3 Stages/Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Lithium Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 15600W. |
| PV input Voltage (V) | 550V (150V-800V). |
| MPPT Range (V) | 200-650V. |
| Start-up Voltage (V) | 160V. |
| PV Input Current (A) | 25A + 125.5A. |
| No. of MPPT Trackers | 2 |
| No. of Strings Per MPPT Tracker | 2+1. |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 12000W |
| Max AC Output Power (W) | 13200W |
| Peak Power(off-grid) | 2 times of rated power, 10 S. |
| AC Output Rated Current(A) | 18A |
| Max.AC Current(A) | 27A |
| Max Continuous AC Pass-through(A) | 50A. |
| Output Frequency and Voltage | 50/60Hz, 230/400Vac (Three Phase) |
| Grid Type | Three Phase |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%). |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Arc Fault Detection | Integrated (Except European Type) |
| PV Input Lightning Protection | Integrated |
| Anti -islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Output over Voltage Protection | Integrated |
| Certifications and Standards | |
| Grid Regulation | UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727 |
| Safety Regulation | IEC62109-1, IEC62109-2 |
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B |
| General Data | |
| Operating Temperature Range ( C ) | -25-60 C, >45 C Derating |
| Cooling | Fan |
| Noise (dB) | <30 |
| Communication with BMS | RS485, CAN |
| Weight (kg) | 37 |
| Size (mm) | 422W X 685H X 281mm |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
