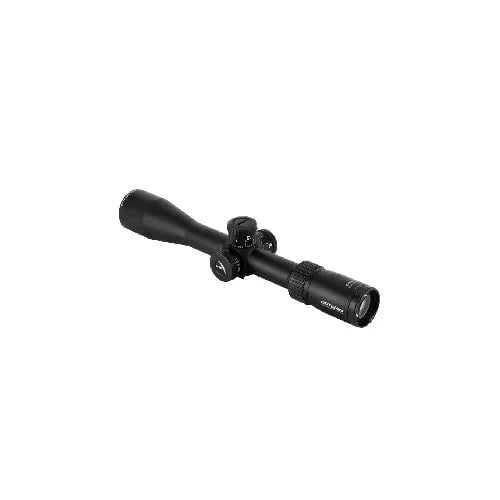

GUNMANSA Optisan 04004 EVX G2 4-16x44f1 Scope

Optisan 04004 EVX G2 4-16x44f1 Scope

OPTISAN 04004 EVX G2 4-16X44F1 is a lightweight and accurate scope, perfect for precision shooting, and features high-resolution imaging.

Save
R 11,970
Regular price
R 15,246
Save
21%
5 in stock
Description

OPTISAN 04004 EVX G2 4-16X44F1



Optisan co-develops shooting systems with top shooters to withstand the rigors of the field while excelling at the demands of competition. Our meticulous testing and constant improvements have won the approval of European champion shooters. Before it becomes part of your shooting system, each of the 90-150 components that will become your optic are subjected to more than 200 quality control points, all of which are done 100% in-house.



Design for precision shooters



The EVX Gen II model expands on the dependable and consistent reputation established by our EVX line during its 15+ years of service. It has been meticulously crafted to deliver sub-MOA accuracy for precision shooting and has undergone rigorous field testing to ensure it can withstand muzzle velocities of up to 6000j post-barrel. With its Japanese optical system, this rifle scope delivers exceptional high-resolution imaging at high magnification levels, while still providing shooters with a comfortable eye box.



Stainless steel tactical turret



The distinguishing feature of the EVX scope is its stainless steel turret, which produces a distinct and audible clicking sound, providing shooters with clear feedback. The turret can be locked in place by pushing or pulling it, and resetting the zero is as easy as turning the coin-removable cap located on the top of the turret. Additionally, for those who wish to engrave their hold-over markings, an empty turret is included in the package.

In addition, all EVX scopes are now available in either MIL/MIL (10 MIL per turn) or MOA/MOA (20 MOA per turn), matching the turret/reticle configuration. Furthermore, the scope features a revamped mil-hash reticle that provides long-range holdover capabilities.



Springer Rated



EVX Gen II has undergone extensive testing by champion shooters for over a year, using a springer rifle. It has proven to be durable and reliable, making it suitable for use with centerfire rifles as well.



What comes in the box:



3” sunshade, Throw lever, Empty turret, Lens covers.





OPTICAL DATA
Magnification (High) 16X
Magnification (Low) 4X
Objective Diameter (mm) 44mm
Outer dia. Objective (mm) 52mm
FOV (min.mag）(ft/100yds) 27.2
FOV (max.mag）(ft/100yds) 6.5
Eye relief (in) 3.8” – 3.5”
Exit Pupil (Max mag.） (mm) 2.75mm
Exit Pupil (min. mag.） (mm) 11mm
Diopter Range (dpt) +/- 2.0
Parallax Adjustment 10yds – infinity (100 yds pa free)
Coating Fully multi-coated
MECHANICAL DATA
Tube Construction One-piece tube, aircraft aluminum
Elevation Adjustment (value per click) 0.1 mrad
Windage Adjustment (value per click) 0.1 mrad
Turret Style (Elevation) Lockable Target Turret
Turret Style (Windage) Lockable Target Turret
Travel Per Rotation 10 MRAD
Elevation adj. range ≥ 20.40 mrad
Windage adj. range ≥ 14 mrad
Eye Piece Diameter (in) 1.73”
Eye Piece Diameter (mm) 44mm
Eye Piece Length (in) 2.15”
Eye Piece Length (mm) 51.2mm
Mounting Length rear (mm) 56.5mm
Mounting Length Front (mm) 58.5mm
Tube Dia. (mm) 30mm
Length (in) 13.81”
Length (mm) 351mm
Weight (g) 748g
Weight (oz) 26.38oz
Surface Finish Matte Black
ENVIRONMENT DATA
Functional temperature -20 ~ 50 degree celcius
Storage temperature -20 ~ 50 degree celcius
Submersion tightness JIS 7
RETICLE DATA
Reticle F1MRAD16
Calibrated Ranging Power Not applicable
Focal plane First
Illumination Non-illuminated
DELIVERY INCLUDE
Standard Accessories Lens covers blank elevation turret dial, 3” sunshade, speed lever.
