Build a stable, high-speed core for your next-generation PC, ready for intense gaming in the South African landscape.
Quick Specs
- Supports the latest Intel LGA1851 socket CPUs for modern processing power.
- Utilises high-speed DDR5 memory for enhanced system responsiveness.
- Features Intel Killer Wi-Fi 7 for superior low-latency networking.
- Includes robust 12+1+1+1 Duet Rail Power System for stable overclocking.
- Built on a server-grade 6-layer PCB for verified long-term durability.
The Foundation of Unyielding Performance

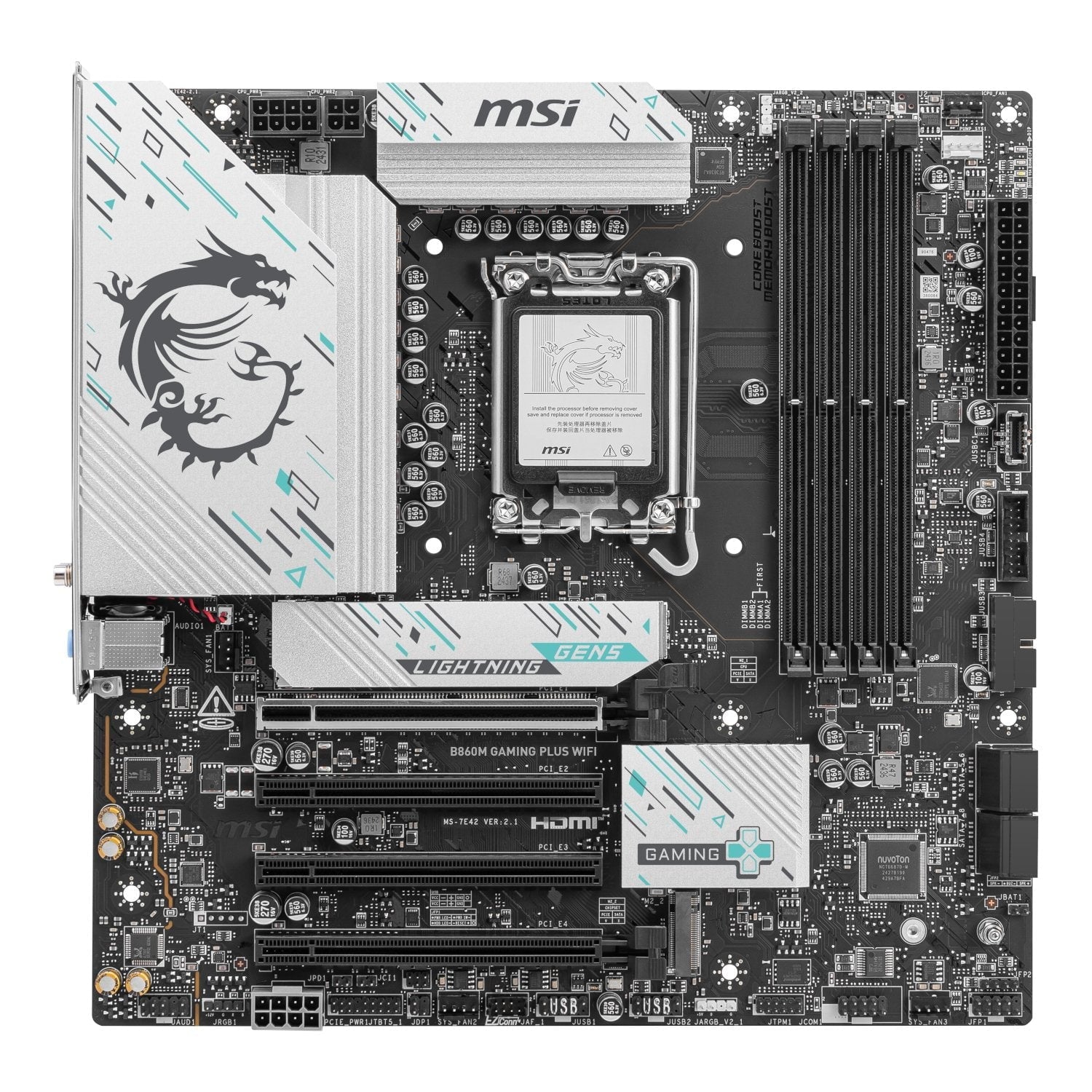

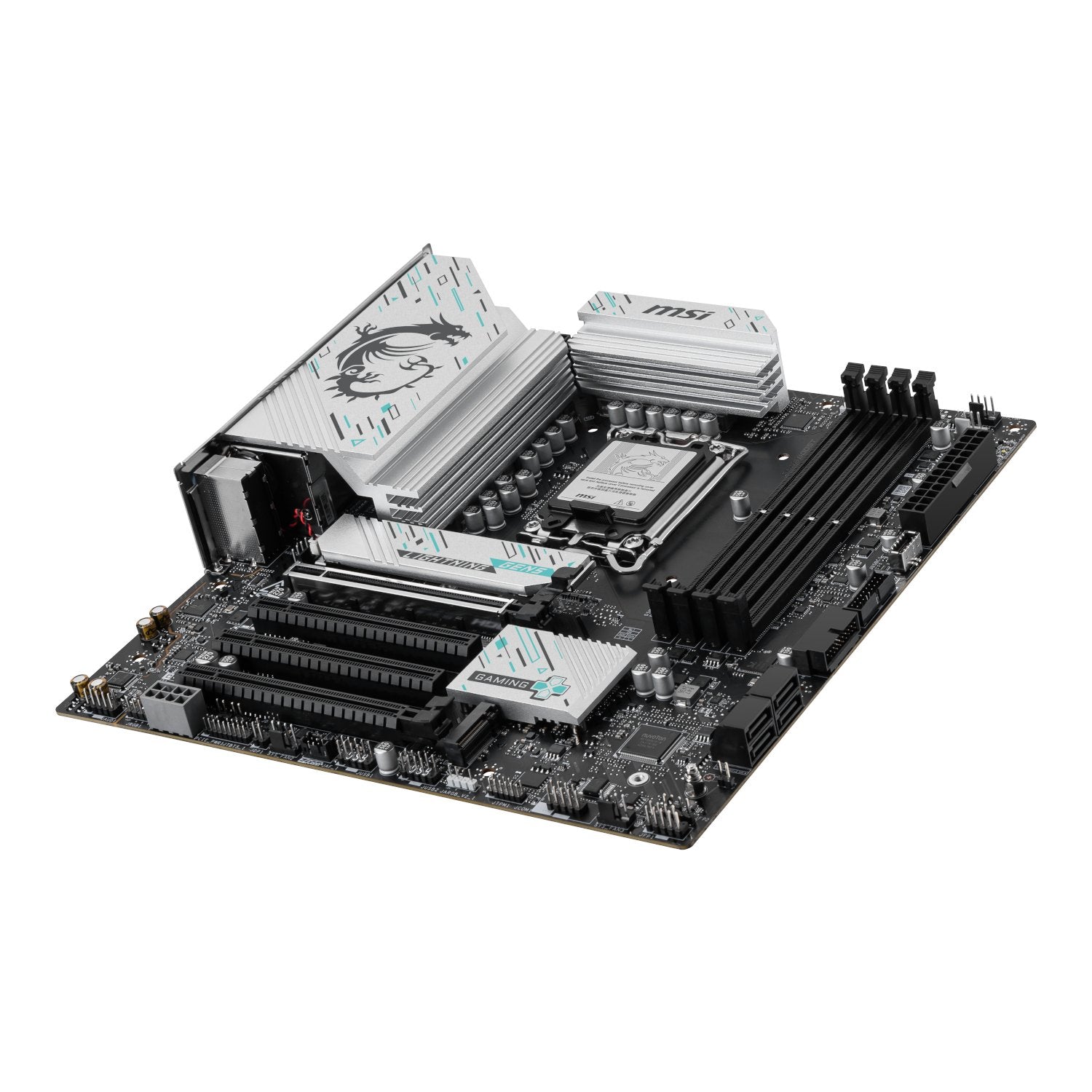

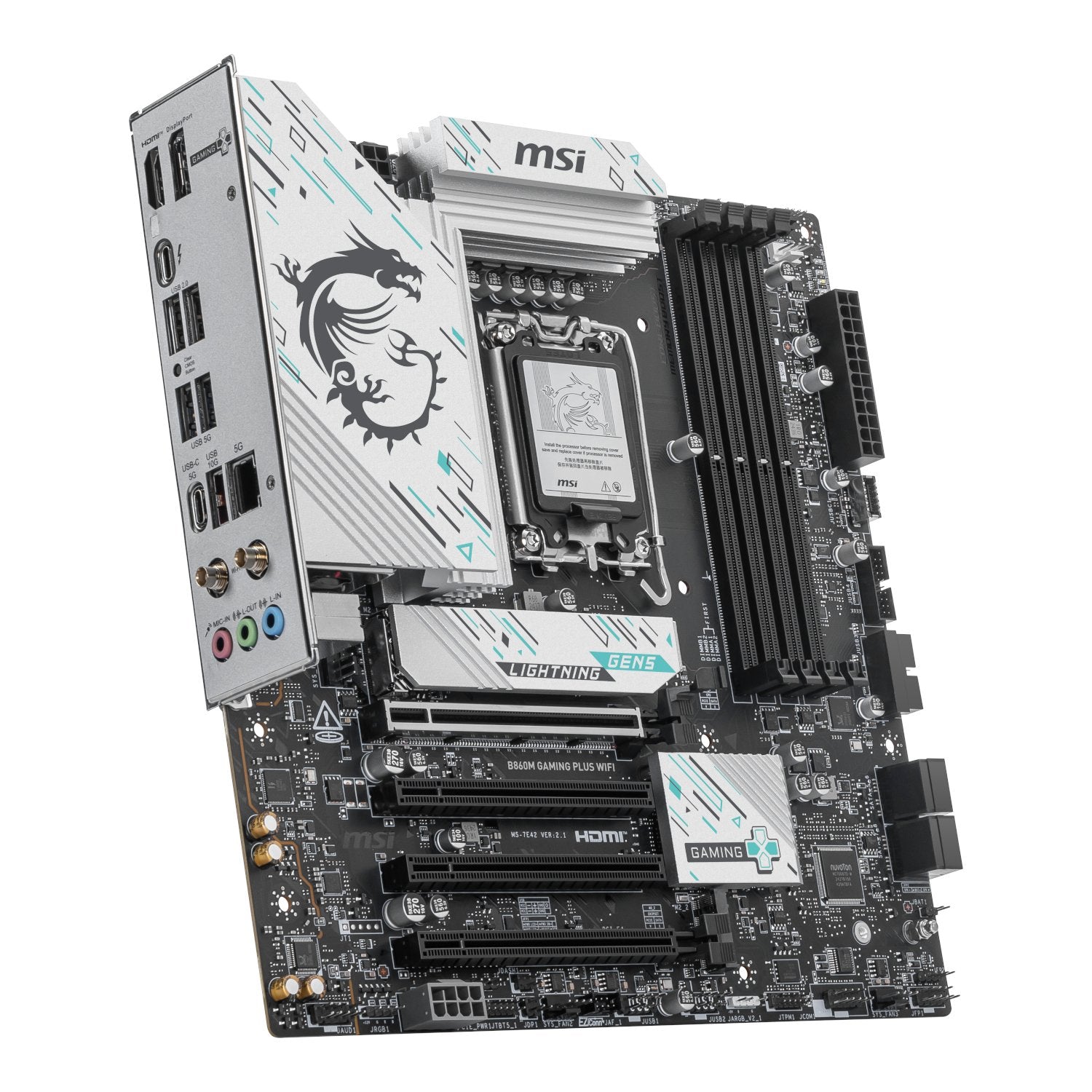

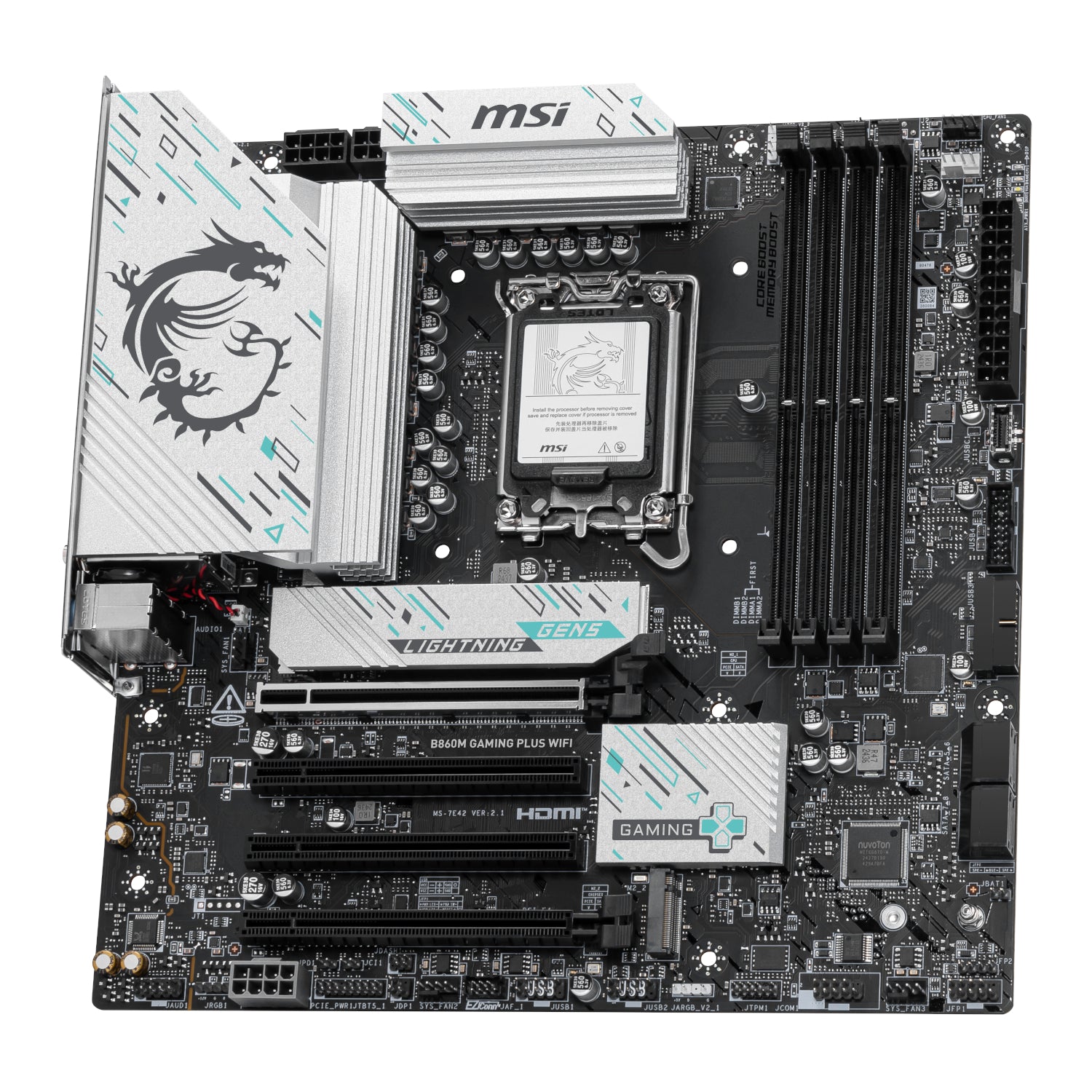

This MSI B860M Gaming Plus Wi-Fi motherboard is forged for the dedicated builder and the serious gamer operating within South Africa. It is not merely a component; it is the hardened chassis upon which true performance is mounted. For those who demand stability during heavy processing loads, whether rendering complex scenes or engaging in competitive digital combat, this lga1851 motherboard provides the uncompromised groundwork.
Engineered for Current and Future Demands
The core solution this b860 gaming motherboard offers is the elimination of bottlenecks that plague lesser platforms. By integrating the latest CPU socket and DDR5 support, you ensure that your system is prepared for the forthcoming generation of processing power. The attention paid to power delivery—the 12+1+1+1 Duet Rail Power System—translates directly into cleaner, more consistent energy for your processor, preventing throttling when the system is taxed to its limit. This lga1851 motherboard is built for longevity.
Connectivity That Refuses to Lag
In modern computing, speed on the wire is as critical as speed off the wire. With Intel Killer 5G LAN and the cutting-edge Wi-Fi 7 solution, this b860 gaming motherboard actively manages your connection quality. This matters because in the fast-paced environment of online competition, even milliseconds of latency can determine victory or defeat. This motherboard cuts through network congestion, ensuring your inputs arrive precisely when intended.
Longevity Forged in Materials
Durability is not a promise; it is a structural reality. The inclusion of a 6-layer server-grade PCB drastically increases system longevity and signal integrity compared to standard designs. Furthermore, the advanced cooling solutions, such as the MOSFET thermal pads rated for 7W/mK and the comprehensive Frozr Guard heatsinks, manage heat effectively. This means the board maintains optimal operating temperatures, extending the lifespan of critical voltage components even under sustained high load. Seek stability with this premier lga1851 motherboard.
Building Made Respectfully Simple
The philosophy of 'EZ DIY' means that constructing your machine should not be a battle against poorly designed connectors. Features like the EZ M.2 Clip II and EZ PCIe Clip II allow you to secure vital components with minimal friction and no need for cumbersome tools. This respects your time and ensures that every part is seated correctly, offering immediate confidence in your build’s structural integrity. This b860 gaming motherboard respects the builder.
FEATURES:
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS:
- Chipset: Intel B860
- CPU Support:
- Supports Intel® Core™ Ultra Processors (Series 2)
- LGA 1851
- Memory:
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Max. overclocking frequency:
- • 1DPC 1R Max speed up to 8800+ MT/s
- • 1DPC 2R Max speed up to 7200+ MT/s
- • 2DPC 1R Max speed up to 6400+ MT/s
- • 2DPC 2R Max speed up to 5600+ MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
- Onboard Graphics:
- 1x HDMI™
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
- 1x Type-C DisplayPort
- Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot:
- 4x PCI-E x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Audio:
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Onboard Thunderbolt:
- 1x Thunderbolt4 ports (Rear)
- Supports up to 40Gbps transfer rate with Thunderbolt devices
- Supports up to 20Gbps transfer rate with USB4 devices
- Supports up to 10Gbps transfer rate with USB 3.2 devices
- Supports up to 5V/3A,15W power charging
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display
- Storage:
- 3x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
- 4x SATA 6G
- USB:
- 2x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 2x USB 5Gbps Type A (Rear)
- 1x USB 5Gbps Type C (Rear)
- 4x USB 5Gbps Type A (Front)
- 1x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Front)
- LAN: Intel® Killer™ E5000 5Gbps LAN
- Wireless LAN & Bluetooth:
- Intel® Killer™ BE1750x Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM

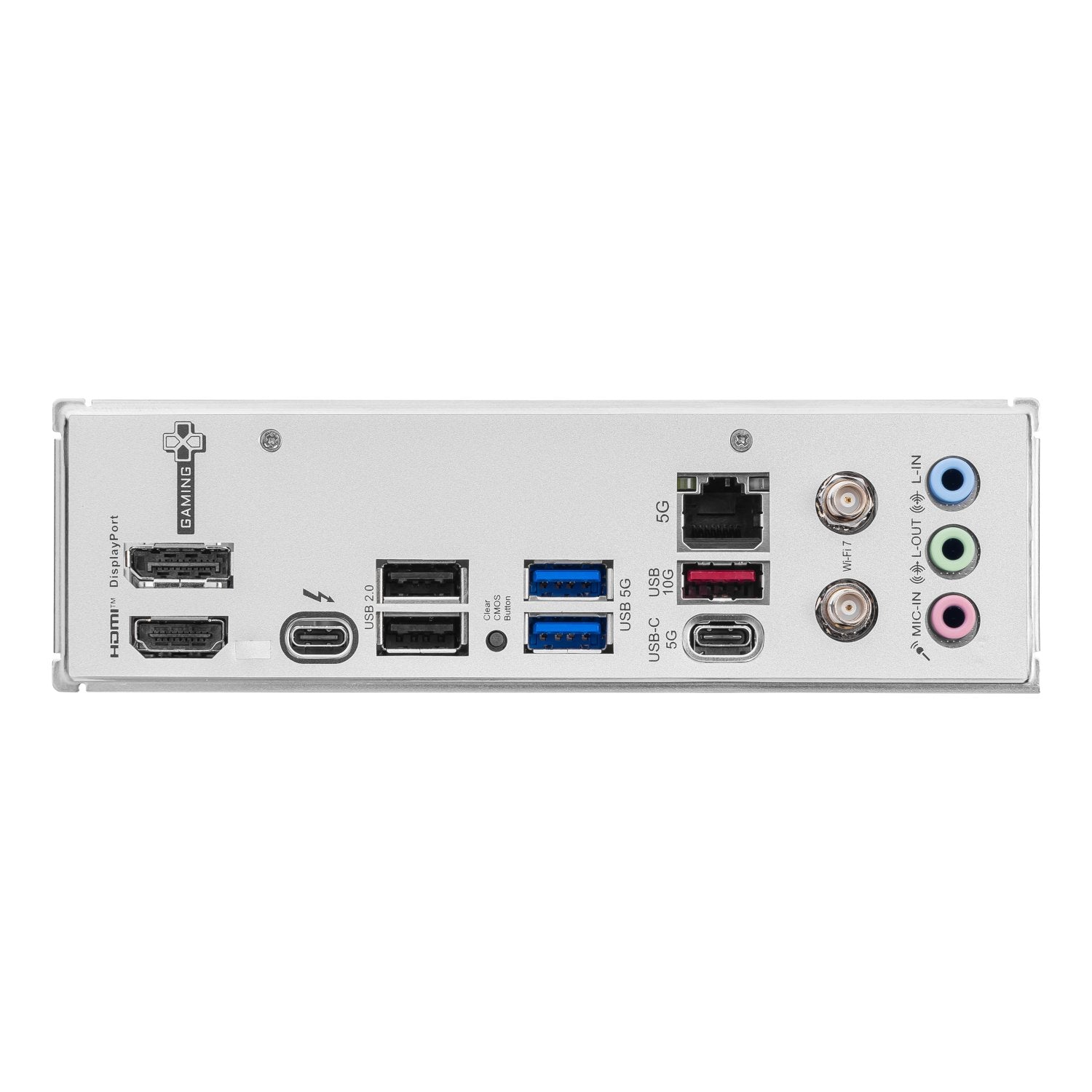

- Internal IO:
- 1x Thunderbolt5 card connector(JTBT5, support RTD3)
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 3x System Fan
- 1x EZ Conn-header (JAF_1)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 1x Tuning Controller connector(JDASH)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports
- LED Feature: 4x EZ Debug LED
- Operating System: Support for Windows® 11 64-bit
- Form Factor: mATX

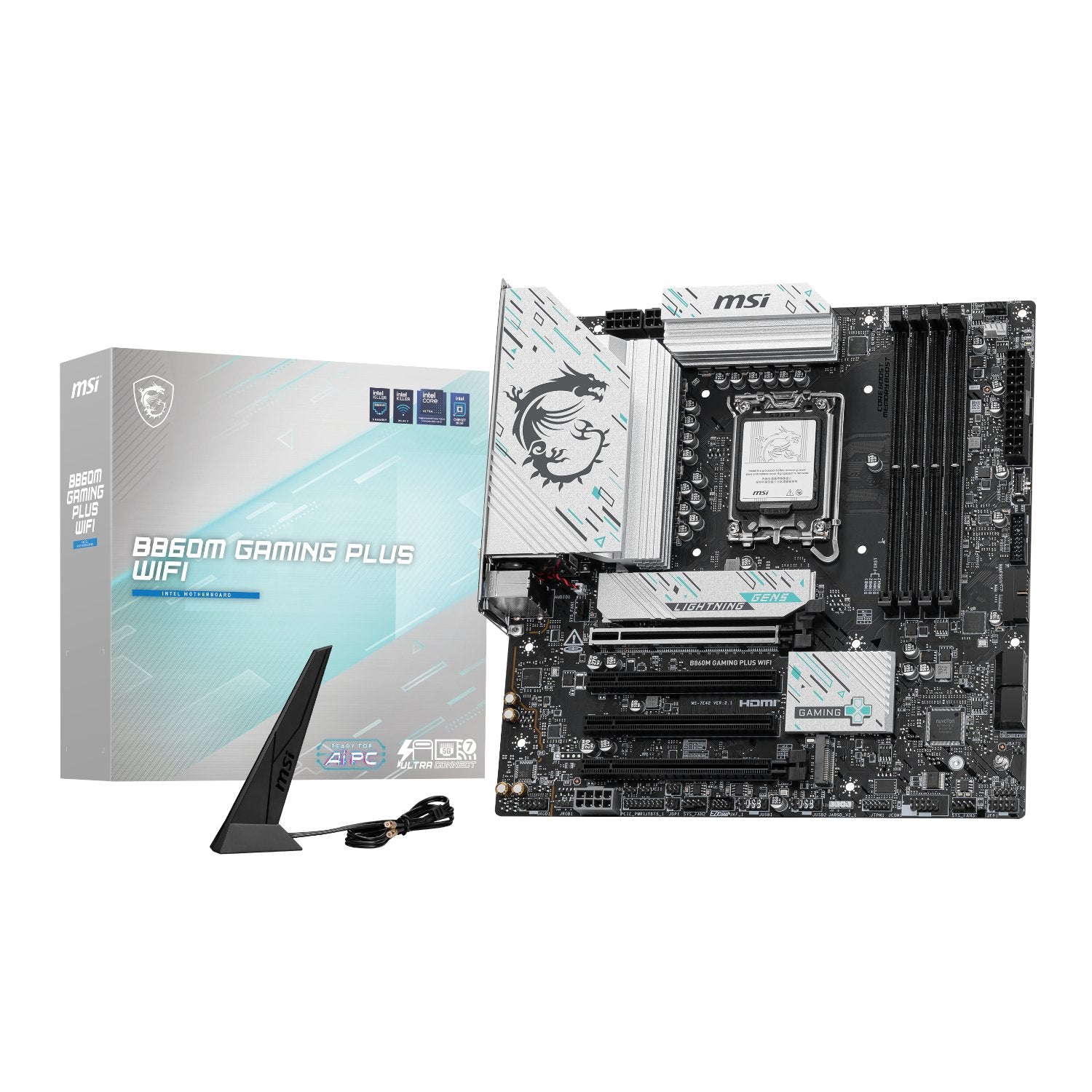

WHAT’S IN THE BOX:
- MSI B860M Gaming PLUS WIFI Intel LGA1851 DDR5 M-ATX Motherboard x1
- SATA Cable x1
- M.2 Screw/Standoff set x2
- EZ Wi-Fi Antenna x1
- 1 to 2 EZ Conn-Cable(V1) x1
- EZ M.2 Clip II x1
- EZ M.2 Clip II Remover x1
- Quick Installation Guide x1
Why MSI?
MSI has long understood the rigorous demands placed upon hardware in competitive environments. Choosing MSI in South Africa is choosing a commitment to validated thermal engineering and superior power delivery; it is opting for stability that withstands local power fluctuations and intense usage cycles. We do not sell components that might fail; we sell the reliable platform that allows you to focus only on your performance. Trust the power delivery of this lga1851 motherboard.
