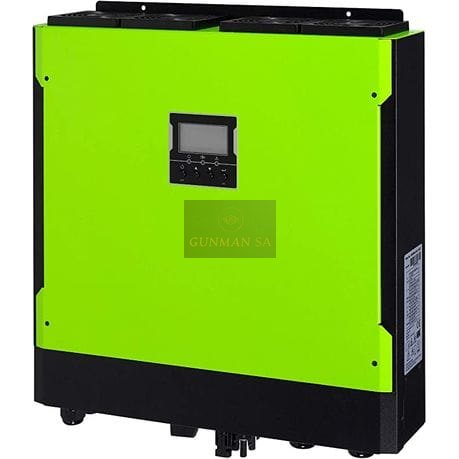

MECER InfiniSolar 5.5kW Single Phase (6 500W Dual MPPT) bi directional with grid 48V DC SOL-I-IS-5E

MECER InfiniSolar 5.5kW Single Phase (6 500W Dual MPPT) bi directional with grid 48V

(NO Parallel Capability)

Mecer InfiniSolar E 5.5KW Single Phase 6500W MPPT - bi directional with grid

Description

Pure sine wave AC output up to 5kW single phase
Self-consumption and feed-in excess energy into the grid.
Programmable power supply priority for either PV, Battery or Grid.
User-adjustable battery charging current suitable for different battery types. (Lead Acid or Li-ion)
Built-in timer for various modes of on/off operation.
Monitoring software for real time status display and control. (Not web based.)
Parallel operation of up to 6 units for both the 5KW inverter and 10KW inverter.
Grid Feed-Back Control and Zero Grid Feed-in functionality.

Specifications
Product Code SOL-I-IS-5Espacer
MODEL InfiniSolar E 5.5KW
Maximum PV Input Power 6500W
Rated Output Power 5500W
Maximum Charging Power 2880 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 116 VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current 2 / 2 x 13 A
GRID OUTPUT (AC)
Nominal Output Voltage 202/208/220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC
Max. Output Current 23.9A
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 0.96
European Efficiency@ Vnominal 0.95
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 170 -280 VAC
Maximum AC Input Current 40 A
PV INPUT (DC)
Maximum DC Voltage 500 VDC
MPP Voltage Range 120 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current 2 / 2 x 13 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 202/208/220/230/240 VAC
Output Waveform Pure sinewave
Efficiency (DC to AC) 0.93
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 116 VDC / 150 VDC
MPP Voltage Range 120 VDC ~ 450 VDC
Number of MPP Trackers / Maximum Input Current 2 / 2 x 13 A
GRID INPUT
Nominal Output Voltage 202/208/220/230/240 VAC
Output Voltage Range 184 - 264.5 VAC
Max. Output Current 23.9A
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120 - 140 VAC / 180 VAC
Acceptable Input Voltage Range 170 -280 VAC
Maximum AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 202/208/220/230/240 VAC
Efficiency (DC to AC) 0.93
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Solar Charge Current 60 A
GENERAL
PHYSICAL
Dimension, D x W x H (mm) 110 x 450 x 445
Net Weight (kgs) 16
INTERFACE
External Safety Box (Optional) RS-232/USB
Communication ports Optional SNMP, Modbus and AS-400 cards
ENVIRONMENT
Humidity 0 ~ 90% RH (Non-condensing)
Operating Temperature 0 to 40ºC
Altitude 0 ~ 1000 m

What's in the box
1 x Mecer InfiniSolar E5.5Kw Single Phase 6500W MPPT - SOL-I-IS-5E
