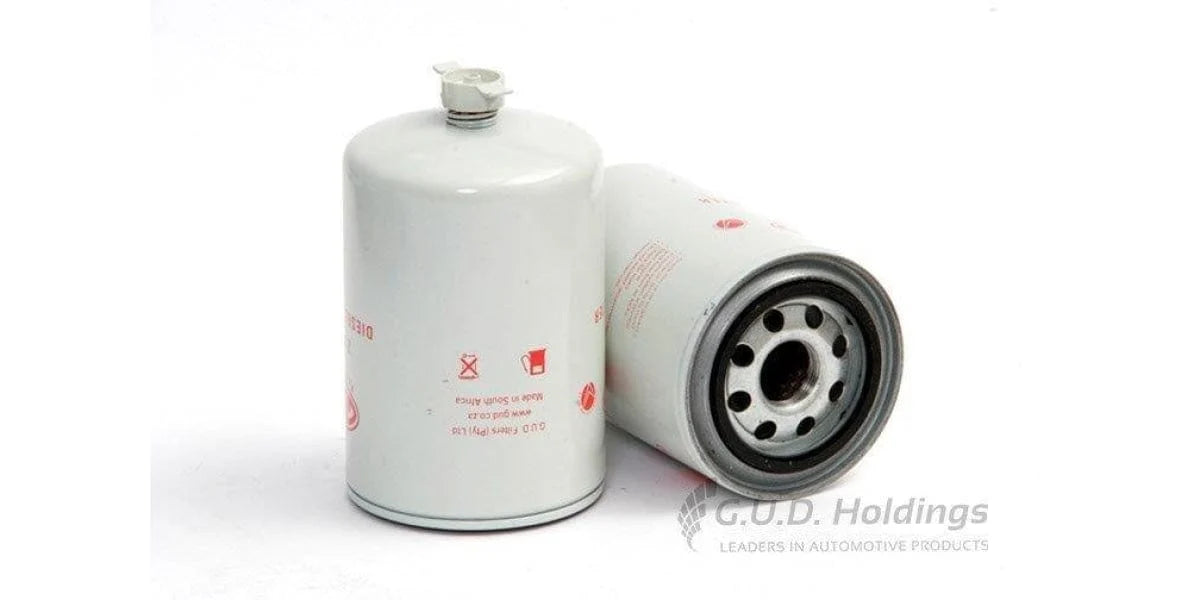

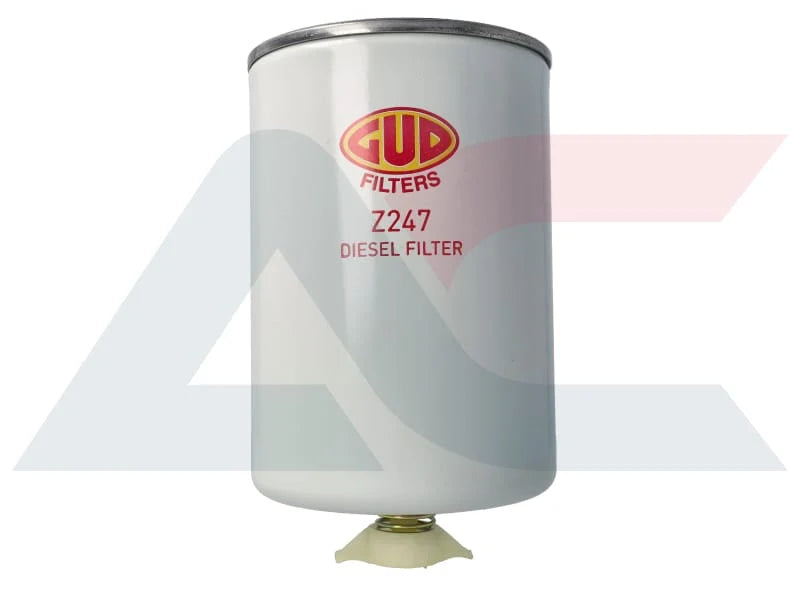

GUD Z247 Heavy Duty Spin-On Diesel Filter

Save
R 442
Regular price
R 544
Save
19%
10 in stock
Description


Vehicle Fitment & Part Details


GUD Z247 is a heavy duty spin-on diesel filter supplied with gasket/seal. This listing replaces the older thin Z247 listing and includes the supplied dimensional data, mechanical-expertise GPSR note and major cross-reference numbers for compatibility checking. Confirm compatibility by matching the filter type, thread size, gasket dimensions, filter dimensions and cross-reference number against the original filter before ordering.



Key Details



SKU

Z247

Component

Heavy Duty Diesel Filter

Brand

GUD

Filter Type

Spin-on Filter

Thread Size

1-14 UNS

Supplied With

Gasket / seal

Primary Cross References

GUD Z 247 / Z 611; Fleetguard FS1212 / FF105; Donaldson P558000 / P550104; Baldwin BF7558 / BF957



Listing Highlights



  • GUD heavy duty diesel spin-on filter.

  • Supplied with gasket/seal.

  • 1-14 UNS exit thread size.

  • Cross-reference data supplied for heavy-duty, agricultural, construction, commercial and industrial filter applications.



Product Specifications










































Specification Value
Filter Type Spin-on Filter
Supplementary Info With gasket/seal
Height 202 mm
Outer Diameter 93 mm

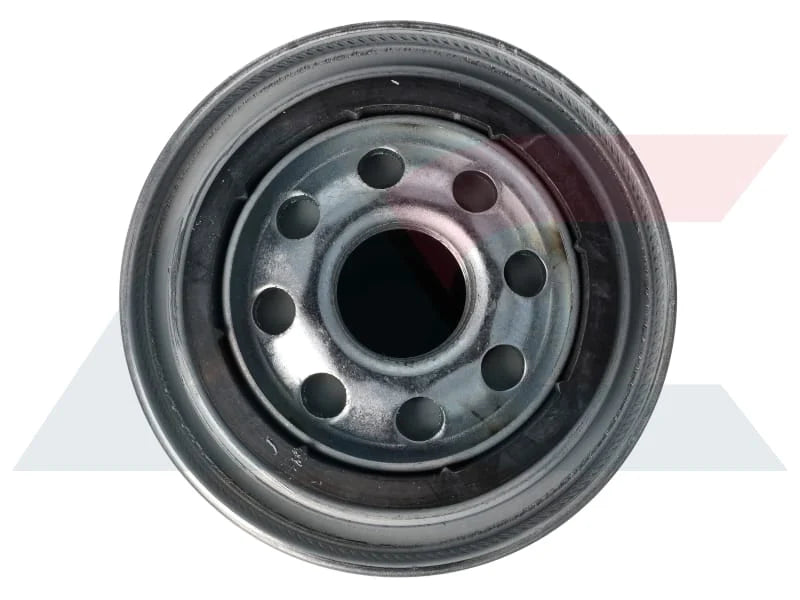

Exit Thread Size 1-14 UNS
Gasket Inside Diameter 63 mm
Gasket Outside Diameter 71 mm
GPSR Note IEC 60417-6183 mechanical expertise required



Cross-Reference Numbers


Use these cross-reference numbers only as an identification aid. Always compare the original filter dimensions, thread and gasket size before ordering.



View Major Cross-References
















































































Brand Reference Numbers
GUD Filters Z 247, Z 611
ACDelco TP 629, TP 567, TP 630, TP 619, TP 623
Baldwin BF7558, BF1212, BF957 D, BF948 D, BF796, BF7557, BF991, BF957, BF948, BF7557 B, BF957 B, BF948 B
Bosch 9 455 160 325, 0 451 302 001, 0 451 302 054, 1 457 434 423
Caterpillar 396 4600, 9Y 4431, 9Y 4432
Cummins 3308638, 3315843
Donaldson P558000, P550104, P558020, P550106, P558030, P550684
Fleetguard FF105CHP, FF102HP, FS1212, FF213, FF105D, FF104, FF42227, FF105HP, FF105C, FF5017, FF194
Fram P3528, P1103A, P1101PL, P3528A, P1112, P1102, P7357, P1114, P1103
Hengst / Hifi H13WK, SN 25169, SN 1212, SN 25105
Isuzu / Hino X13240021, 1 13240 044 1, 23401 1221, 23401 1220
Luberfiner LFF 8000, LFF 5, LFP 1101F, LFF 8020, LFF 5 D, LFP 1101FD, LFF 5002, LFP 230
Mahle / Knecht KC 192, KC 15, AW 8, AW 9
Motorcraft / Ford FD72FP, FD84FP, FD 84, FD152, EFG 012, EFG 013, 1537 614, 5000 987, 6019 967
Ryco / Wix Z50, HDZ159, HDZ48, 33405
UFI / Sofima 24 313 00, S 0810 NR
Volvo 0999121584 3, 36849, 991215843
Woodgate WGFS1212, WGF213, WGFS1214, WGF232, WGF105, WGF5017, WGF194




Compatibility Verification Notes



  • Confirm compatibility using the original filter number, application catalogue, thread size, gasket dimensions and physical filter comparison before ordering.

  • Cross-reference numbers are supplied for identification only and may vary by equipment model, engine, production date and market.

  • Mechanical expertise is required. Replacement must be carried out according to the equipment or vehicle manufacturer's service information by a suitably qualified person.



Common Questions


Is GUD Z247 a spin-on diesel filter?
Yes. The supplied product data lists Z247 as a heavy duty diesel spin-on filter.


What thread size is listed?
The supplied exit thread size is 1-14 UNS.


Does it include a seal?
Yes. The supplied data lists this filter as supplied with gasket/seal.
