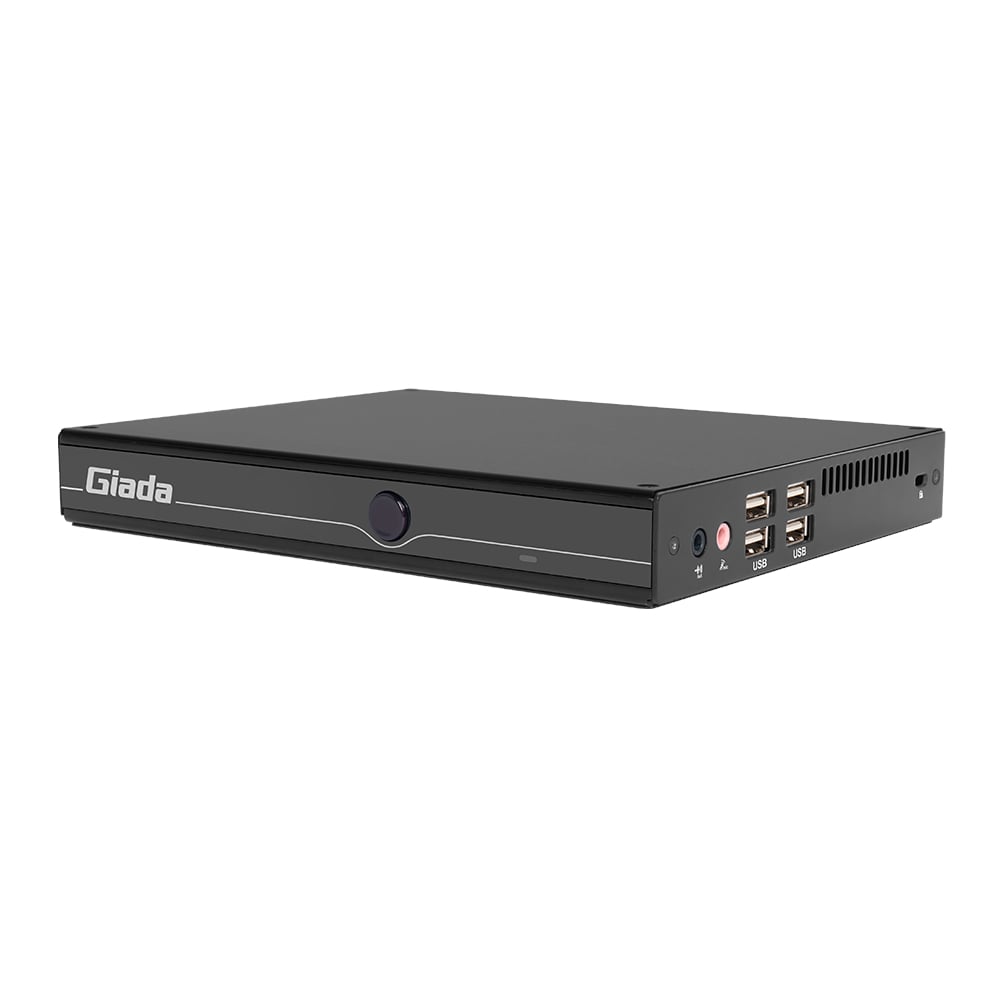

The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof.

FEATURES:

• Intel® Processor N100


• DDR4 3200MHz memory support


• Intel UHD onboard graphics


• Up to 4k resolution support


• 1x DP and 2x HDMI output


• Support for Wi-Fi/Bluetooth module


• Small form factor design

SPECIFICATION:

• CPU: Intel® Processor N100 (Fanless)


• Turbo Frequency: 3.40GHz


• Chipset: SoC


• Processing Units: 4 Cores


• TDP: 6W


• System Memory: Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz


• Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD


• Watchdog Timer: Yes


• Auto Power On: Yes


• RTC: Set up independently every day, a week as a cycle


• Remo on: No


• Power Requirement: DC-IN, 19 V/2.37 A


• Construction: Metal


• Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)


• Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow


• Certifications: CE, FCC Class B, UKCA


• Humidity: 95% @ 45°C (non-condensing


• Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet


• Ethernet Interface: 2 x RJ45


• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6


• Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot


• GPU: Intel® UHD Graphics


• Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0


• Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)


• USB: 2 x USB3.2 Gen2, 4 x USB2.0


• Serial Port: 2 x RS232


• Audio: 1 x MIC-IN, 1 x AUDIO-OUT


• Button: 1 x Power on, 1 x CLR-CMOS


• Antenna: 2 x Connector for Wi-Fi/BT


• Product Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT'S IN THE BOX:

• Giada F108D Alder Lake-N Book Size Signage Player - Black x1
