MAP Pro

Default Title

Price
R 1,078
10 in stock
Description

Vehicle Fitment & Part Details

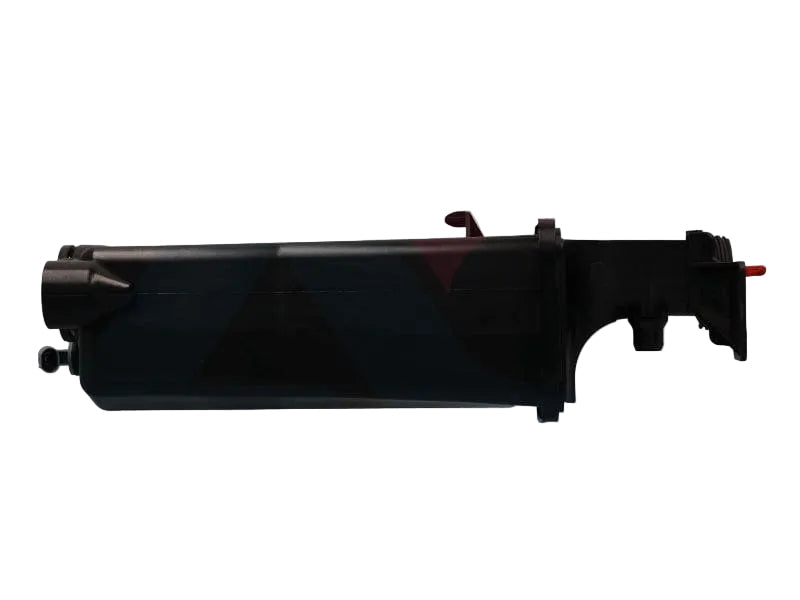

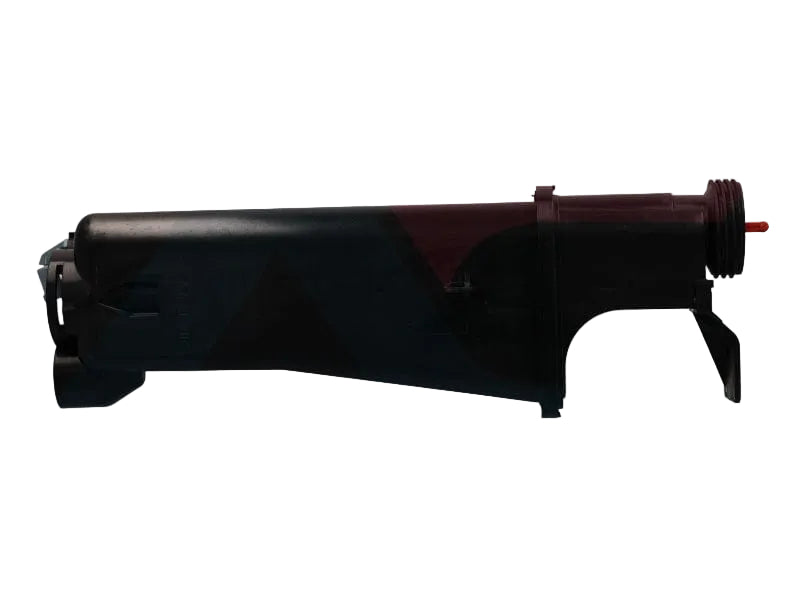

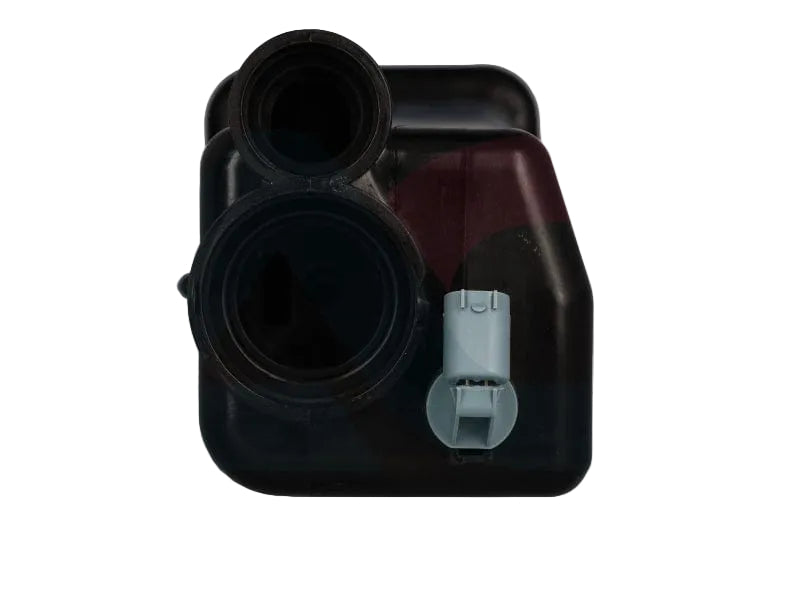

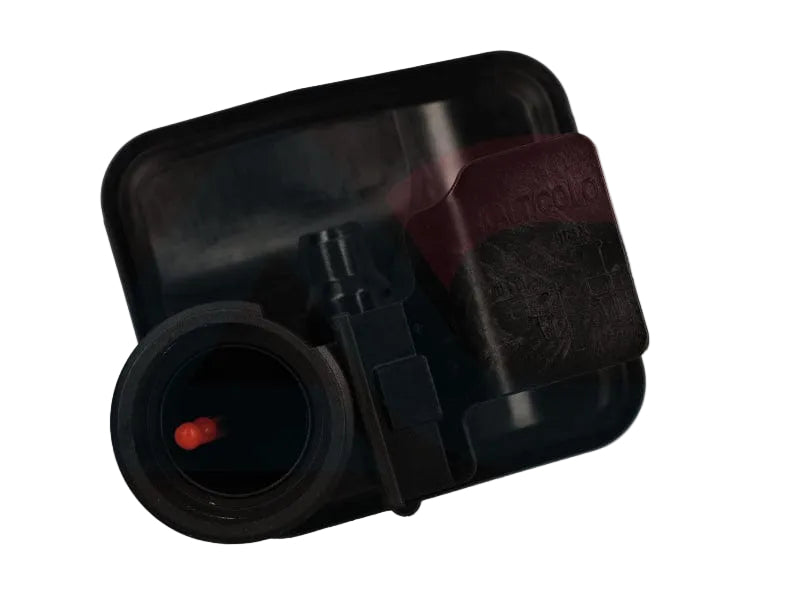

This expansion tank is listed for the BMW 3 Series (E46) with OE reference 17 11 7 573 780. 358 mm length, 121 mm width, 108 mm height, black, supplied with cap. Water level sensor excluded. Confirm compatibility by matching the listed fitment details, OEM reference numbers, and VIN/engine/chassis information where variants exist.

Key Details

SKU
MAP-100208
Component
Expansion Tank
OEM References
  • BMW: 17 11 1 436 255, 17 11 2 249 365, 17 11 7 573 780, 17 13 7 787 040
Primary Fitment
BMW 3 (E46) M43 B19 318i Petrol 1.9 (1997-2001)
Included
With cap
Excluded
Water level sensor (not included)
Specs
358 × 121 × 108 mm, black

Warning — Do Not Overfill: Do not fill this expansion tank to the top. Overfilling will cause the tank to burst or leak during the first drive cycle. If the tank bursts due to overfilling, it will need to be replaced at the customer's expense. Fill only to the marked level or as specified in the vehicle's workshop manual.

Note: This expansion tank does not include the water level sensor. Transfer the existing sensor from the old tank, or order the sensor separately if required.

Product Specifications

Specification Value
Length 358 mm
Width 121 mm
Height 108 mm
Colour Black
Included With cap
Excluded Water level sensor (not included)

Vehicle Fitment

Includes 32 supplied applications.

View Full Vehicle Fitment (32 applications)
Model Body Variant Engine Code Power Years
3 (E46) Saloon 316 i M43 B16 (164E3) 77kW/105PS 2000-2005
3 (E46) Saloon 316 i N40 B16 A; N45 B16 A 85kW/115PS 2002-2005
3 (E46) Saloon 318 i M43 B19 (194E1) 87kW/118PS 1997-2001
3 (E46) Saloon 316 i M43 B19 (194E1) 77kW/105PS 1998-2002
3 (E46) Saloon 320 d M47 D20 (204D1) 100kW/136PS 1998-2001
3 (E46) Saloon 320 d M47 D20 (204D4) 110kW/150PS 2001-2005
3 (E46) Saloon 318 d M47 D20 (204D1) 85kW/116PS 2001-2003
3 (E46) Saloon 318 d M47 D20 (204D4) 85kW/116PS 2003-2005
3 (E46) Saloon 330 d M57 D30 (306D1) 135kW/184PS 1999-2005
3 (E46) Saloon 330 xd M57 D30 (306D1) 135kW/184PS 2000-2003
3 (E46) Saloon 330 d M57 D30 (306D2) 150kW/204PS 2003-2005
3 (E46) Saloon 330 xd M57 D30 (306D2) 150kW/204PS 2002-2004
3 Coupe (E46) Coupe 316 Ci M43 B16 (164E3) 77kW/105PS 2000-2006
3 Coupe (E46) Coupe 318 Ci M43 B19 (194E1) 87kW/118PS 1999-2001
3 Coupe (E46) Coupe 320 Cd M47 D20 (204D4) 110kW/150PS 2003-2006
3 Coupe (E46) Coupe 330 Cd M57 D30 (306D2) 150kW/204PS 2003-2006
3 Touring (E46) Touring 318 i M43 B19 (194E1) 87kW/118PS 1999-2001
3 Touring (E46) Touring 320 d M47 D20 (204D1) 100kW/136PS 2000-2001
3 Touring (E46) Touring 320 d M47 D20 (204D4) 110kW/150PS 2001-2005
3 Touring (E46) Touring 318 d M47 D20 (204D1) 85kW/115PS 2002-2003
3 Touring (E46) Touring 318 d M47 D20 (204D4) 85kW/116PS 2003-2005
3 Touring (E46) Touring 330 d M57 D30 (306D1) 135kW/184PS 1999-2005
3 Touring (E46) Touring 330 xd M57 D30 (306D1) 135kW/184PS 2000-2003
3 Touring (E46) Touring 330 d M57 D30 (306D2) 150kW/204PS 2003-2005
3 Touring (E46) Touring 330 xd M57 D30 (306D2) 150kW/204PS 2002-2005
3 Compact (E46) Compact 320 td M47 D20 (204D4) 110kW/150PS 2001-2005
3 Compact (E46) Compact 318 td M47 D20 (204D4) 85kW/115PS 2003-2005
3 Convertible (E46) Convertible 320 Cd M47 D20 (204D4) 110kW/150PS 2005-2007
3 Convertible (E46) Convertible 330 Cd M57 D30 (306D2) 150kW/204PS 2005-2007
X5 (E53) SUV 3.0 d M57 D30 (306D1) 135kW/184PS 2001-2003
X5 (E53) SUV 3.0 d M57 D30 (306D2) 160kW/218PS 2003-2006
X5 (E53) SUV 3.0 d M57 D30 (306D2) 155kW/211PS 2003-2006

Fitment Notes

  • Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.

Installation / Use / Maintenance Tips

  • Compare the new expansion tank to the removed unit before installation to confirm port positions, cap fitment, and mounting geometry match.
  • Transfer the existing water level sensor from the old tank, or order the sensor separately if required.
  • Inspect related hoses, clamps, and the cap seal for wear before fitting the new tank.
  • Fill with the correct coolant mixture specified for the application and bleed the cooling system fully. Do not overfill — fill only to the marked level.
  • After installation, check for leaks and verify correct coolant level during a warm-up cycle.

Common Questions

Will this expansion tank fit my BMW 3 Series E46?
This part (MAP-100208) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.

What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the Key Details section above. Match at least one to your original part before ordering.

Is the water level sensor included?
No, the water level sensor is not included. Transfer the existing sensor from the old tank, or order the sensor separately.

How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.

Warranty

Warranty

Our products are covered by a manufacturer’s warranty ranging from 6 months up to a lifetime, subject to the specific item. For detailed warranty information, kindly enquire with our support team.
