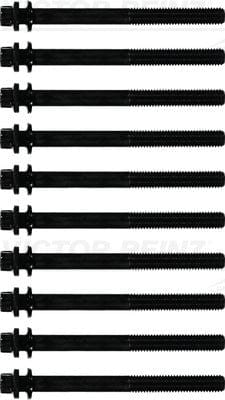

Cylinder Head Stretch Bolt Set for Suzuki Baleno / Ciaz / Ertiga - MAP-100833

This cylinder head stretch bolt set listing includes two fitment-based options with identical supplied specifications and applications. Both options are M10, 119 mm, male star cylinder head stretch bolt sets supplied as sets of 10. Confirm compatibility by matching OEM reference numbers, engine details, and model year. VIN check is recommended where variants exist.

Key Details

SKU
MAP-100833
Component
cylinder head stretch bolt set (10)
OEM References
  • 47 09 233 (10x) (Opel)
  • 93 194 082 (10x) (Opel)
  • 117-69J00 (10x) (Suzuki)
  • 90118-WCA42 (10X) (Toyota)
  • 90118-WC288 (10X) (Toyota)
Primary Fitment
Suzuki Baleno 1.4 K14B (2017-2022)
Included
Two selectable options: 14-32307-02 Premium quality cylinder head stretch bolt set (10) or CB4916 Budget quality cylinder head stretch bolt set (10)
Specs
Thread Size: M10; Bolt Head-/Nut Design: Male Star; Length [mm]: 119 mm

Available Options

Option Description Specs Applications
14-32307-02 "PREMIUM" quality cylinder head stretch bolt set (10) M10; 119 mm; Male Star Identical supplied applications to CB4916
CB4916 "Budget" quality cylinder head stretch bolt set (10) M10; 119 mm; Male Star Identical supplied applications to 14-32307-02

Key Benefits

  • Two quality-based options are listed with identical supplied fitment and dimensions
  • M10 thread size and 119 mm length are listed for cross-checking before ordering
  • Male star head design is supplied in the product specifications
  • Suzuki, Opel, and Toyota OEM reference numbers are provided for part matching

OEM Reference Numbers

  • Opel: 47 09 233 (10x), 93 194 082 (10x)
  • Suzuki: 117-69J00 (10x)
  • Toyota: 90118-WCA42 (10X), 90118-WC288 (10X)

Product Specifications

Specification Value
Thread Size M10
Bolt Head-/Nut Design Male Star
Length [mm] 119 mm
Set Quantity 10
Option 1 14-32307-02 "PREMIUM" quality cylinder head stretch bolt set (10)
Option 2 CB4916 "Budget" quality cylinder head stretch bolt set (10)

Vehicle Fitment

  • Suzuki – Baleno 1.4 K14B 2017-2022
  • Suzuki – Ciaz 1.4 K14B 2015-0000
  • Suzuki – Ertiga 1.4 K14B 2014-0000
  • Suzuki – Ignis 1.2 GLX K12M 2017-0000
  • Suzuki – Splash 1.2 K12B 2014-0000
  • Suzuki – Swift/Dzire 1.2 K12M 2014-2017
  • Suzuki – Swift 1.4 K14B 2011-0000
  • Suzuki – Dzire 1.2 K12M 2018-0000
  • Suzuki – Swift 1.2 K12M 2018-0000
  • Suzuki – Jimny 1.5 K15B 2018-0000
  • Suzuki – Ertiga 1.5 K15B 2019-0000
  • Suzuki – Baleno 1.5 K15B 2022-0000
  • Suzuki – Ciaz 1.5 K15B 2019-0000
  • Suzuki – Fronx 1.5 K15B 2023-0000
  • Toyota – Starlet 1.4 K14B 2020-2022
  • Toyota – Urban Cruiser 1.5 K15B 2021-0000
  • Toyota – Rumion 1.5 K15B 2021-0000
  • Toyota – Starlet 1.5 K15B 2022-0000

Fitment Notes

  • Always match by OEM reference number(s) and vehicle details before ordering.
  • Confirm exact fitment using your VIN, engine code, or chassis number if multiple variants exist.
  • Both options have identical supplied specifications and applications; the listed difference is quality level.
  • South Africa nationwide delivery available – contact us for fitment assistance.

Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.

🚫 Engine Parts Return Policy Warning

Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.

Common Questions

Does this cylinder head stretch bolt set fit my Suzuki or Toyota?
This listing covers 14-32307-02 and CB4916 for the fitments shown on this page. Confirm by matching OEM reference numbers and verifying VIN/engine/chassis where variants exist.

What is the difference between 14-32307-02 and CB4916?
The supplied information states that the specifications and applications are identical. The listed difference is quality level: 14-32307-02 is "PREMIUM" quality and CB4916 is "Budget" quality.

What specifications should I check before ordering?
Check the supplied M10 thread size, 119 mm length, male star head design, and the listed vehicle application.

What is included in the listing?
This is a multi-option listing where the customer chooses either 14-32307-02 or CB4916, each supplied as a set of 10 cylinder head stretch bolts.
