Clock Spring For Toyota Corolla 1.6 / 1.8, Hilux, Fortuner, Etios, Innova & Yaris – MAP-100482

High-quality replacement steering wheel clock spring (spiral cable) for a wide range of Toyota models including Corolla, Hilux, Fortuner, Etios, Innova and Yaris. This part restores the electrical connection between the steering wheel, airbag, horn and steering wheel controls where fitted, when the original clock spring ribbon has broken or failed.

Vehicle Compatibility

Toyota Corolla

  • Toyota Corolla Saloon (_E15_) – 2006–2025
    Engines:
    • 1.6 VVTi (ZRE141, ZRE151 – 1ZR-FE) – 91 kW / 124 HP
    • 1.6 VVTi (ZRE141_, ZRE151_ – 1ZR-FAE, 1ZR-FE) – 90 kW / 122 HP
    • 1.8 (ZRE142, ZRE152 – 2ZR-FE) – 100 kW / 136 HP

Toyota Etios

  • Toyota Etios (_K1_ – Hatch) – 2010–2025
    1.5 (NGK12_ – 2NR-FE) – 66 kW / 90 HP
  • Toyota Etios Saloon (_K1_ – Sedan) – 2010–2025
    1.5 (NGK15_ – 2NR-FE) – 66 kW / 90 HP

Toyota Fortuner

  • Toyota Fortuner (_N5_, _N6_) – 2004–2016
    Engines: 2.5 D-4D (KUN60 – 2KD-FTV), 3.0 D (KUN61 – 1KD-FTV), 3.0 D 4WD (KUN51 – 1KD-FTV), 4.0 (GGN50_, GGN60_ – 1GR-FE), 4.0 4WD (GGN60 – 1GR-FE)
  • Toyota Fortuner (_N15_, _N16_) – 2015–2025
    Engines: 2.7 VVTi (TGN166_, TGN168_ – 2TR-FE), 2.8 GD-6 (GUN166, GUN166_ – 1GD-FTV) – 130–150 kW / 177–204 HP

Toyota Hilux VII Pickup

  • Toyota Hilux VII Pickup (_N1_, _N2_, _N3_) – 2005–2016
    Engines:
    • 2.5 D-4D (KUN15, KUN10 – 2KD-FTV) – 75 kW / 102 HP
    • 2.5 D-4D (KUN15, KUN35 – 2KD-FTV) – 106 kW / 144 HP
    • 2.5 D-4D 4WD (KUN25 – 2KD-FTV) – 75 kW / 102 HP
    • 2.7 VVTi (2TR-FE) – 118 kW / 160 HP (4x2 & 4x4)
    • 3.0 D-4D (KUN16_, KUN36 – 1KD-FTV) – 120 kW / 163 HP
    • 3.0 D-4D 4WD (KUN26 – 1KD-FTV) – 120 kW / 163 HP
    • 4.0 V6 VVTi (1GR-FE) – 175 kW / 238 HP (4x2 & 4x4)

Toyota Innova

  • Toyota Innova I (_N4_) – 2003–2025
    2.7 (TGN41_ – 2TR-FE) – 118 kW / 160 HP

Toyota Yaris

  • Toyota Yaris (_P15_) – 2014–2025
    1.5 (NCP150_, NSP151_ – 1NZ-FE, 2NR-FE) – 79 kW / 107 HP

The above list reflects all known compatible Toyota models for this specific clock spring SKU MAP-100482. It is commonly used across Corolla E15, Hilux VII, Fortuner, Etios, Innova and later Yaris models.

Specifications

  • SKU: MAP-100482
  • Type: Steering wheel clock spring / spiral cable
  • Application: Toyota Corolla 1.6 / 1.8, Hilux, Fortuner, Etios, Innova, Yaris (see full compatibility list)
  • Connector / layout: Match to original unit (see images and OE reference if available)

Features

  • Restores horn, airbag and steering wheel control functions where fitted
  • Designed to fit a wide range of popular South African Toyota models
  • OE-style design for correct mounting and alignment on the steering column
  • Supplied new – not reconditioned

How To Confirm Compatibility

  1. Remove or inspect the original clock spring fitted behind your steering wheel.

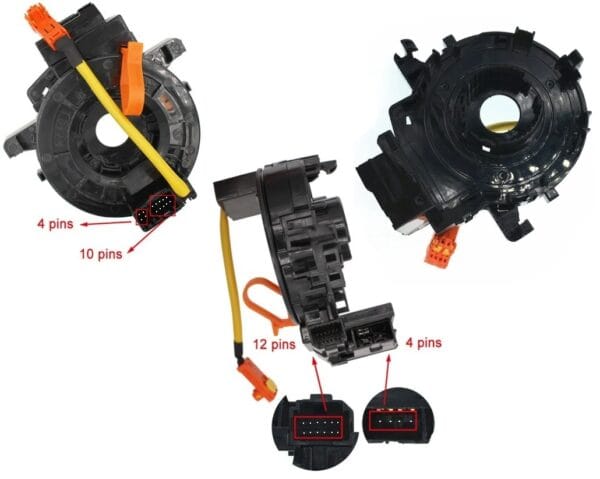

  2. Compare the housing shape, locating tabs and electrical connectors with the product photos.
  3. Where possible, match any OE number printed on your original unit to the listing information.
  4. Confirm your vehicle matches the model, year range and engine code shown in the compatibility list.
  5. If unsure, contact us with your VIN so we can help confirm fitment before you order.

Fitment & Safety Notes

  • Always disconnect the vehicle battery and wait the recommended time before working on the airbag system.
  • Ensure the new clock spring is correctly centred before refitting the steering wheel.
  • After installation, verify that the airbag warning light goes off and that the horn and steering wheel controls operate correctly.
  • Professional installation by a qualified technician is strongly recommended.

Important Disclaimer

Vehicle and engine data are provided as a fitment guide only. Toyota may use different clock spring versions within the same model range depending on steering wheel type and equipment level. Do not rely on model and year alone. Always match the connector style, mounting design and, where possible, OE part number before purchasing.

E&OE. Images are for illustration purposes and may differ slightly from the actual product supplied.
