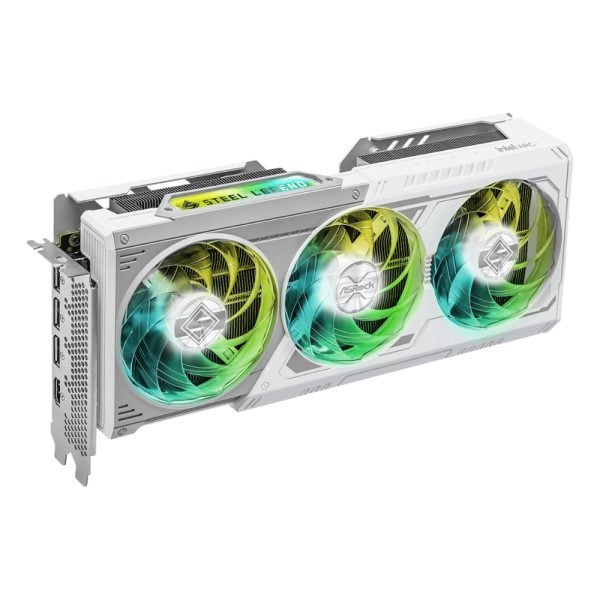

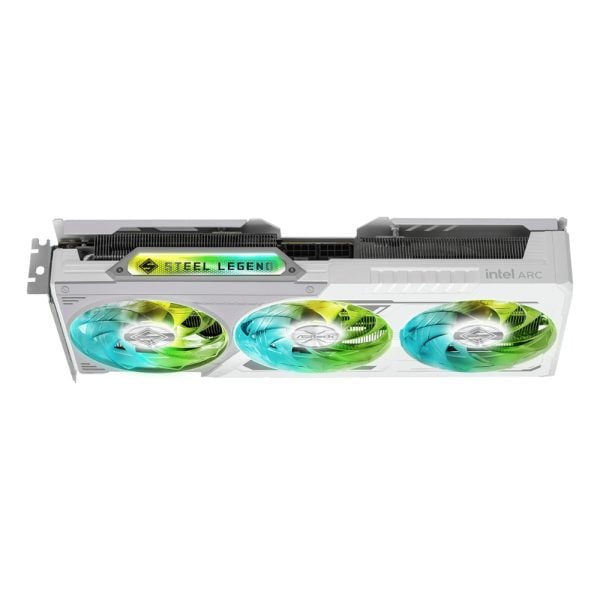

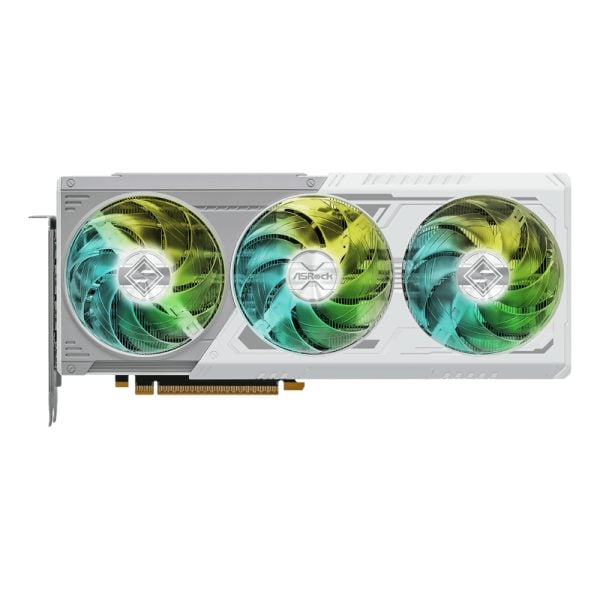

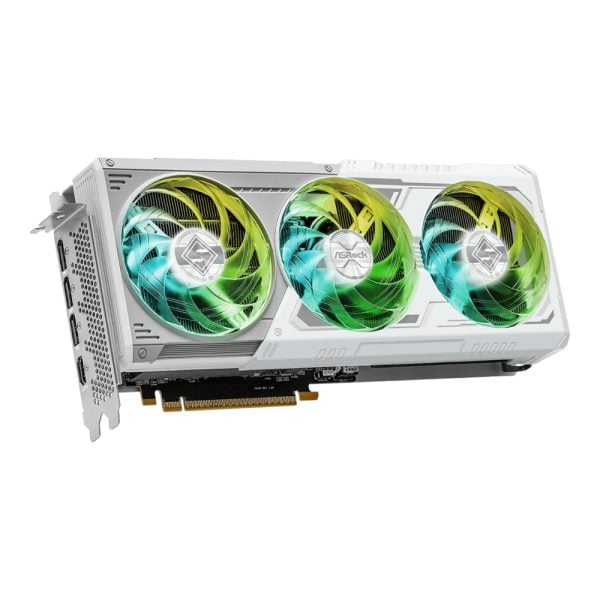

ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card

The ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 Graphics Card is a high-performance powerhouse designed to meet the needs of gamers and creators alike. Featuring integrated ARGB LEDs, you can customize your setup with unique, vibrant lighting effects, which can be switched on or off based on your preference. With Polychrome SYNC compatibility, it seamlessly synchronizes with ASRock motherboards for a unified lighting experience. For added flexibility, the ARGB header allows you to connect additional ARGB strips or devices to enhance your rig’s aesthetics.

Designed with advanced cooling technology, the triple-fan system ensures optimal temperature control even during intensive tasks. The Striped Ring Fan design enhances lateral airflow, while the V-shaped cutting fins and air vents direct airflow efficiently for superior cooling. The fans operate intelligently, spinning under high loads for effective cooling and stopping during low temperatures to provide silent operation, ensuring a perfect balance of performance and noise control.

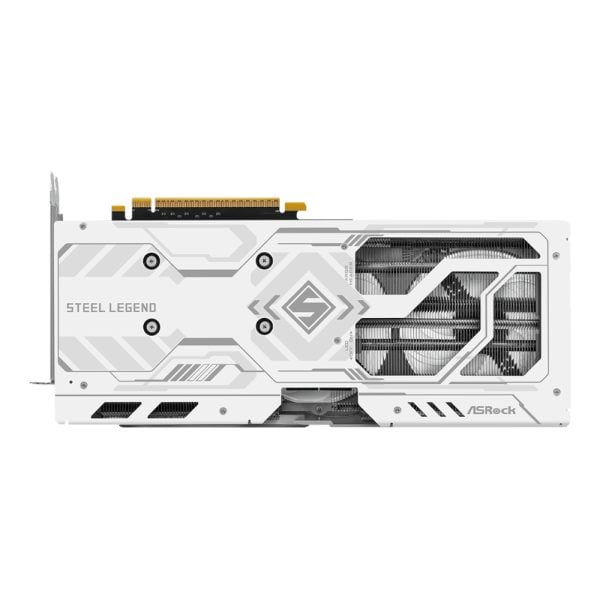

Engineered for durability, this graphics card features a premium copper base heatsink and ultra-fit heatpipes that maximize contact with the GPU baseplate for efficient thermal transfer. The stacked fin design isolates gaps between pipes, further enhancing heat dissipation. The stylish metal backplate not only reinforces the card to prevent PCB bending but also adds a sleek, white-themed aesthetic that complements modern builds.

Packed with powerful specifications, the ASRock Intel Arc B580 features 12GB of 192-bit GDDR6 memory, a base clock of up to 2800 MHz, and cutting-edge Intel® Xe2-HPG Architecture. It supports Intel® XeSS 2 for AI-driven upscaling and DirectX 12 Ultimate for advanced gaming visuals. With multi-display capabilities supporting resolutions up to 7680 x 4320 and an array of connectivity options, including HDMI™ 2.1a and DisplayPort™ 2.1, this graphics card is ready to deliver immersive visuals and exceptional performance for gaming and creative applications.

FEATURES:

• Base Clock: Up to 2800MHz / 19Gbps


• 12GB 192-bit GDDR6


• Intel® Arc™ B580 Graphics


• Intel^® X^e2-HPG Architecture


• Intel^® X^e Super Sampling 2 (Intel^® X^eSS 2)


• Intel^® X^e Matrix eXtentions (Intel^® XMX)


• PCI® Express 4.0 Support


• Polychrome SYNC


• Triple-Fan Design


• Striped Ring Fan


• Ultra-fit Heatpipe with air deflecting fin


• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: Intel^® Arc B580


• Bus Standard: PCI® Express 4.0 x 8


• DirectX: 12 Ultimate


• OpenGL: 4.6


• Memory: 12GB GDDR6


• Engine Clock: 2800 MHz


• Intel® XMX Engines: 160


• Memory Clock: 19Gbps


• Memory Interface: 192-bit


• Resolution: Digital Max Resolution: 7680 x 4320


• Interface: 1 x HDMI™ 2.1a, 1 x DisplayPort™ 2.1 up to UHBR 13.5, 2 x DisplayPort™ 2.1 up to UHBR 10


• HDCP: Yes


• Multi-view: 4


• Recommended PSU: 650W


• Power Connector: 2 x 8-pin


• Colour: White


• Product Dimensions: 29.8 x 13.1 x 5.1 cm


• Product Weight: 959g

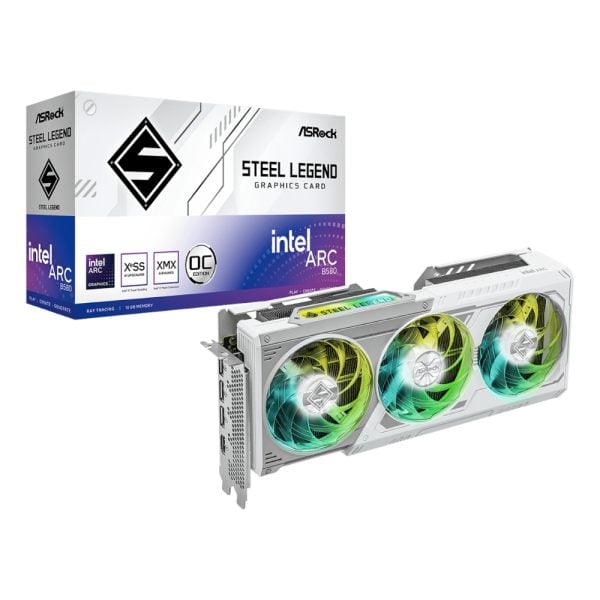

WHAT’S IN THE BOX:

• ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 192-BIT Graphics Card – White x1


• Quick Install Guide x1
