ASRock DESKMINI B760W Barebone - LGA1700 Socket

The AsRock DeskMini B760 Series supports the most recent 14th Generation Intel® Core processors, delivering maximum computing performance in a smaller PC form factor. When compared to mobile processors, Intel's latest processors provide the best performance for multitasking computing. The DeskMini B760W also supports dual-channel DDR4-3200MHz high-speed memory with a capacity of up to 64GB, allowing you to complete tasks with ease and efficiency. The DeksMini B660 also supports Intel® OptaneTM memory and storage technology, allowing it to set a new standard for high performance and responsiveness. All of your apps and programmes will load at breakneck speed, allowing you to work or play faster than ever before.

On the rear I/O, there is a USB 3.2 Gen2 Type-C with an alternate mode that provides a high-resolution DisplayPort signal, an incredible 60-watt power delivery, and a 10Gbps data transfer rate. The latest USB 3.2 Gen2x2 Type-C provides a blazing-fast data transfer interface with a reversible USB Type-C design that fits the connector either way, with a data transfer rate of up to 20 GB/s, which is twice as fast as the previous generation. The DeskMini B660 has a USB 3.2 Gen2 Type-A port on the front panel that supports a 10Gbps data transfer rate. Furthermore, the DeskMini B760W includes four USB Type-A ports on the rear I/O for all of your peripherals. For productivity and multitasking, up to four video outputs can be used at the same time. 1.4 DisplayPort allows you to enjoy Ultra HD content on an 8K monitor or TV.

FEATURES:

• Supports 14th, 13th & 12th Gen Intel Core™ Processors (LGA1700), up to 65W


• Dual DDR4-3200MHz SO-DIMMs, up to 64GB


• Multi-Video Outputs: 1 x DisplayPort, HDMI & D-Sub


• USB 3.2 Gen2x2 Type-C port (20 Gb/s)


• USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)


• USB 3.2 Gen2 Type-A port (10 Gb/s)


• Blazing M.2 (PCIe Gen5 x4) Slot


• Hyper M.2 (PCIe Gen4 x4) Slot


• 2.5" HDD/SSD with RAID 0/1


• M.2 Key-E for Wi-Fi

SPECIFICATIONS:

• CPU: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W


• Cooler: Supports Intel® CPU Cooler (Max. Height ≦ 47mm)


• Memory: Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)


• Chipset: Intel® B760


• Graphics: HDMI (4K@60Hz), DisplayPort 1.4, DisplayPort 1.4 (over USB Type-C Alt Mode), D-Sub, Supports up to 4 displays simultaneously


• Audio: Realtek ALC269 Audio Codec


• Storage: 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1), 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Supports Intel® Optane™ Technology, Supports NVMe SSD as boot disks, Supports Intel® Volume Management Device (VMD)


• LAN: 2.5 Gigabit LAN (Dragon RTL8125BG)


• WLAN: 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)


• Front I/O: 1 x MIC-In, 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection), 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), 1 x Headphone with MIC Jack


• Rear I/O: 1 x DC-In Jack (Compatible with the 19V power adapter), 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode), 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED


• Connectors: 1 x USB 2.0 Header, 1 x Front Panel Header, 2 x 4-Pin fan connectors (CPU, SYS), 1 x Internal Speaker Header (4-Pin), 1 x Audio Header (4-Pin)


• Accessory: 2 x SATA Data with Power Cable, 1 x 120W/19V adapter, 1 x Screws Pack, 1 x Intel® AC-3168 Wi-Fi Kit


• OS: Microsoft® Windows® 10 64-bit / 11 64-bit


• Product Dimensions: 15.5 x 15.5 x 8 cm

WHAT’S IN THE BOX:

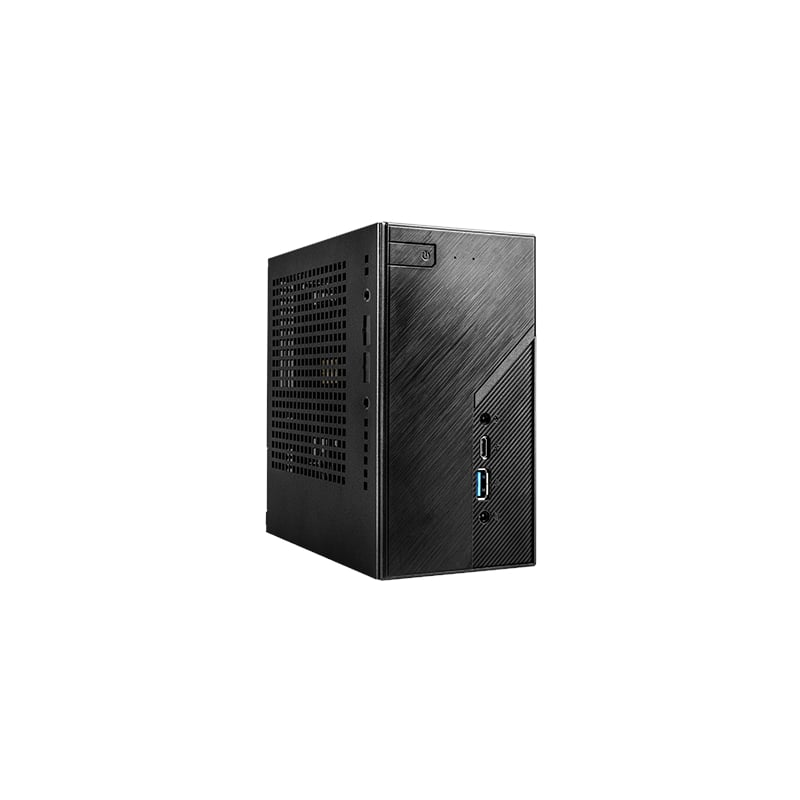

• AsRock DeskMini B760W Barebone Desktop PC – Black x1

24 Months Warranty
