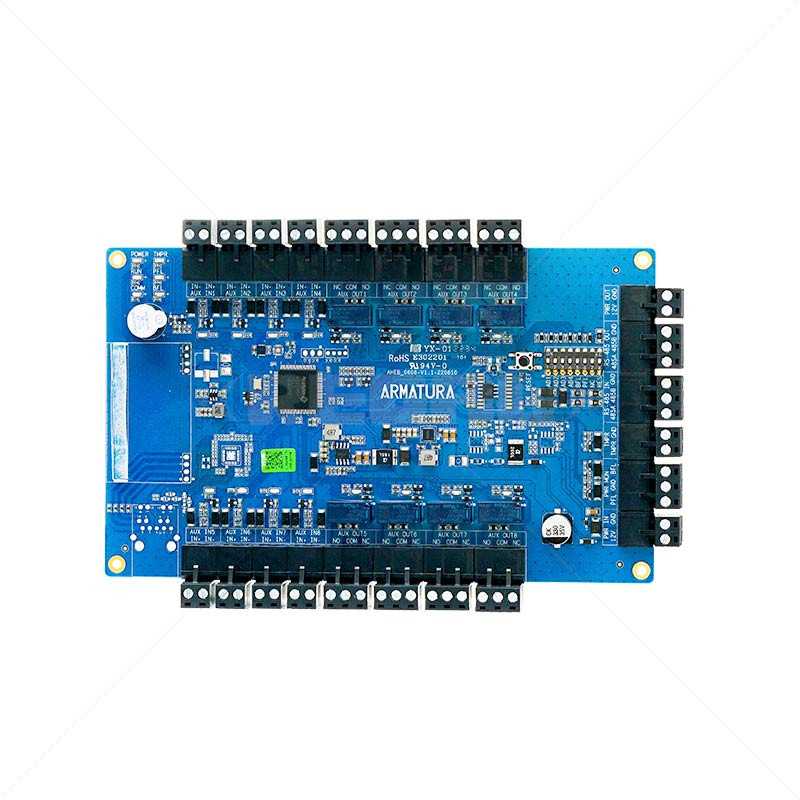

The ARMATURA AHEB-0808 Horizon I/O Expansion Board is a versatile and scalable solution designed to enhance the capabilities of your access control system. This expansion board provides 8 supervised inputs and 8 relay outputs, allowing for seamless integration with various security devices such as sensors, alarms, and emergency systems.ZKTeco USA, Protection, multifamily+2Mega Depot+2Mega Depot+2

Built to support both RS-485 and OSDP V2.2 communication protocols, the AHEB-0808 ensures secure and efficient data transmission between connected devices. Its universal voltage input range of 12–24 VDC ±20% makes it compatible with a wide array of installations, eliminating the need for additional power adapters. The board also features programmable input states and time zone management, offering flexibility in configuring your security system to meet specific requirements.ZKTeco USA, Protection, multifamily+5ZKTeco USA, Protection, multifamily+5ZKTeco Hong Kong+5ZKTeco Hong Kong+3Mega Depot+3ZKTeco USA, Protection, multifamily+3

🔑 Key Features

Feature Description
Scalability Supports up to 384 inputs and 385 outputs with a single AHDU controller.
Supervised Inputs Equipped with 8 supervised inputs to detect circuit anomalies.
Relay Outputs Provides 8 relay outputs for controlling external devices.
Communication Protocols Supports RS-485 and OSDP V2.2 for secure data transmission.
Universal Voltage Input Operates within a 12–24 VDC ±20% input range.
Programmable Inputs Allows configuration of input states and time zones.

⚙️ Technical Specifications

Specification Detail
Model AHEB-0808
Inputs 8 supervised inputs (AUX IN)
Outputs 8 relay outputs (AUX OUT)
Power Input 12–24 VDC ±20%, 550 mA maximum
Communication Protocol RS-485 / OSDP V2.2
Relay Type 8 Form-C dry contact relays
Input Supervision 4-state supervision (In-Active, Active, Short, Open)
Time Zone Management Programmable input states with time zone support
Dimensions 7.6" W x 4.6" L x 0.7" H (193 x 116 x 17.5 mm)
Weight 5.8 oz (165.3 g)
Operating Temperature -30°C to 70°C
Humidity 0–95% RH (non-condensing)
Certifications CE, FCC, RoHS, UL294
