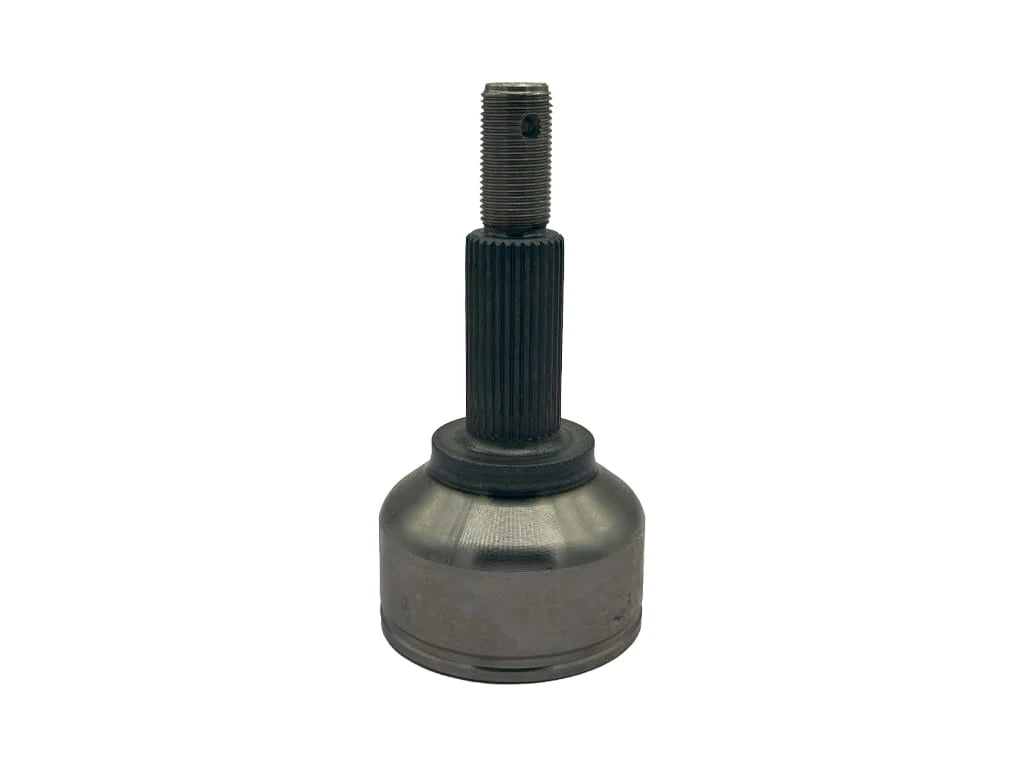

Front Outer CV Joint Left or Right for Ford Transit, Transit Custom & Tourneo Custom - FD3023

Vehicle Fitment & Part Details

This front outer CV joint for Ford Transit is listed for left or right front outer use and includes the supplied spline and measurement details. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine.

Key Details

SKU

FD3023

Component

CV Joint

Position

Front Left or Right Outer

Primary Fitment

Ford Transit (2011-2014)

Specs

Outer Spline: 31; Inner Spline: 28; Seal Size: 57.7 mm; Outer Diameter: 94.9 mm; Groove Position: Inner; Length: 189 mm

Listing Highlights

• Listed for selected Ford Transit, Transit Custom and Tourneo Custom applications shown in the fitment table.


• Supplied technical details include 31 outer splines, 28 inner splines, 57.7 mm seal size and 189 mm length.


• Fitment rows include supplied transmission and body application notes for compatibility checking before ordering.

Product Specifications

Vehicle Fitment

Includes 52 supplied applications covering selected Ford Transit, Ford Transit Custom and Ford Tourneo Custom 2.2 TDCi manual 6-speed applications across V362 and V363 platforms, including Transit 250, 270, 290, 310, 330, 350, 430 and 470 variants. Use the full table below to confirm model, chassis / platform, year range, engine, power and notes before ordering.

Fitment Notes

• Always match vehicle details before ordering. Verify VIN/engine.


• This listing is for the front outer CV joint position and is listed for left or right side use where the supplied fitment data applies.

Compatibility Verification Notes

• Confirm compatibility using VIN, engine code, chassis / platform, OE reference and original part comparison before ordering.


• Match listed vehicle details, year range, engine, chassis / platform, position, spline counts, seal size, outer diameter, groove position and length before ordering.


• Fitment data may vary by production date, market, import history, body shape, transmission type and engine variant.


• This listing is for part identification and compatibility checking only. Installation must be carried out according to the vehicle manufacturer's service information by a suitably qualified person.

Common Questions

Will this front outer CV joint fit my Ford Transit?
This part (FD3023) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.

Is this for the inner or outer CV joint position?
This listing is for the front outer CV joint position. Match the listed spline counts, seal size, outer diameter, groove position and length before ordering.

Can this be used on the left or right side?
This listing is for front left or right outer use where the supplied fitment data applies. Confirm against the original part before ordering.

How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details, OE reference numbers, original part details and any listed variant information before ordering. Verify VIN/engine.
