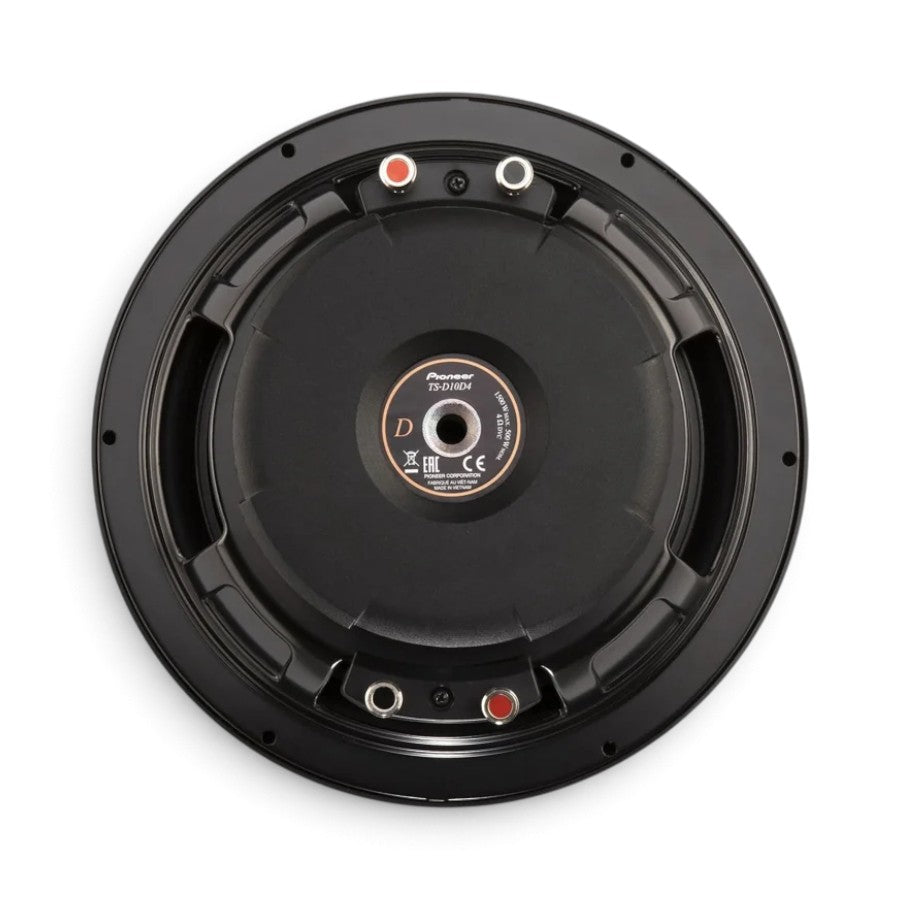

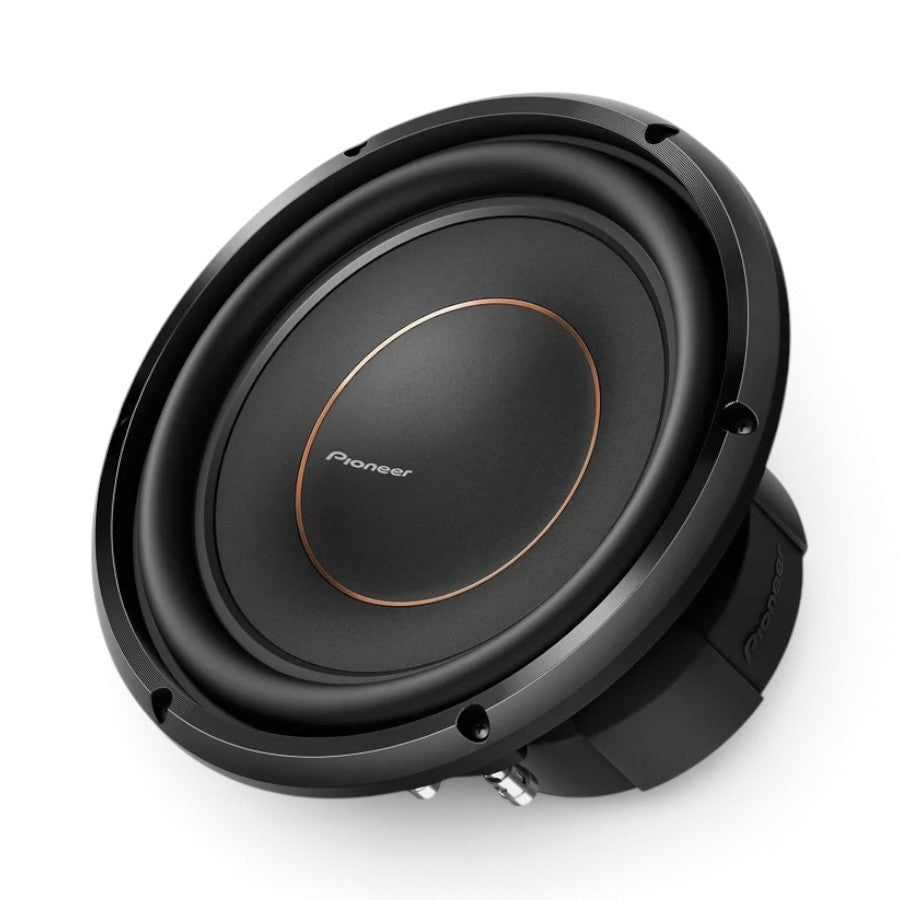

Pioneer TS-D10D4 10″ D-Series Subwoofer | Dual 4-Ohm | 1500W Max | 500W RMS
1500 Watts Max. Power / 500 Watts Nominal Power
10″ Aramid Fiber Interlaced IMPP™ cone
Butyl Rubber Surround & Meta-Aramid fiber spider
Frequency range: 20 Hz to 6.6 kHz
Speaker Impedance: 2x 4 ohms
Speaker Efficiency: 76 dB (1W/1M)
Mounting depth: 5.5” (140mm)
Recommended Box volume : 0.8cu.ft. (vented) / 0.7cu.ft. (sealed)
The TS-D10D4 10″ subwoofer can handle up to 500 W RMS, delivering impressive low-frequency levels. This subwoofer features an injection-molded polypropylene (IMPP™) cone infused with Aramid fibers for exceptional precision and strength. A butyl rubber surround supports the subwoofer during cone excursion, ensuring accurate, hard-hitting bass notes even at high volumes. When setting up your system, the dual 4Ω voice coils of this subwoofer provide more wiring options.
