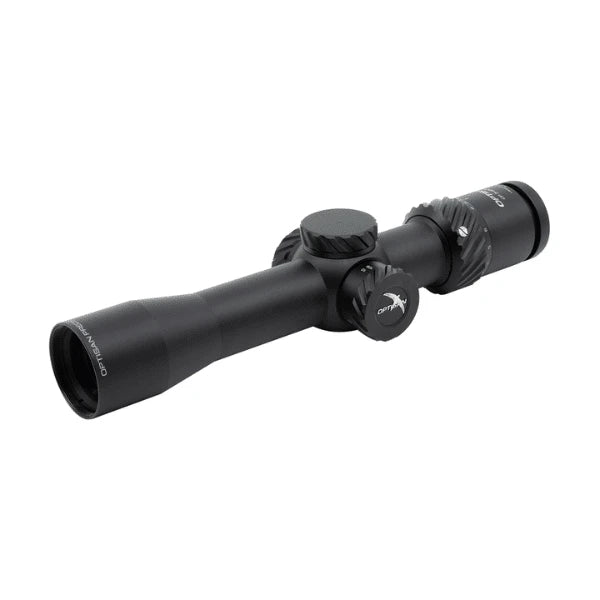

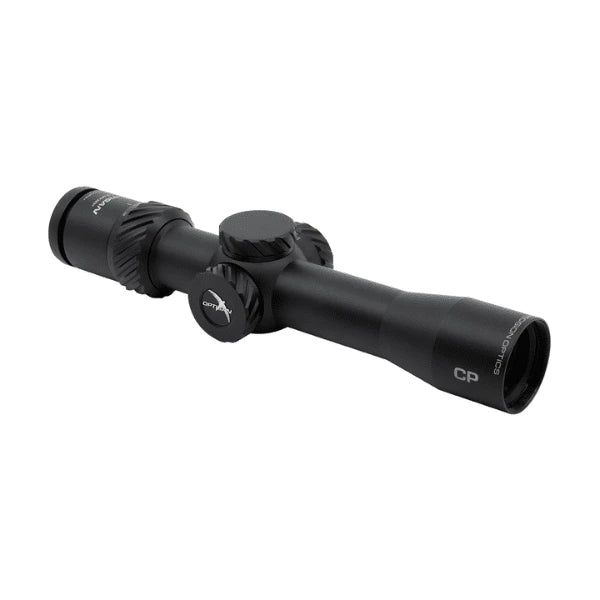

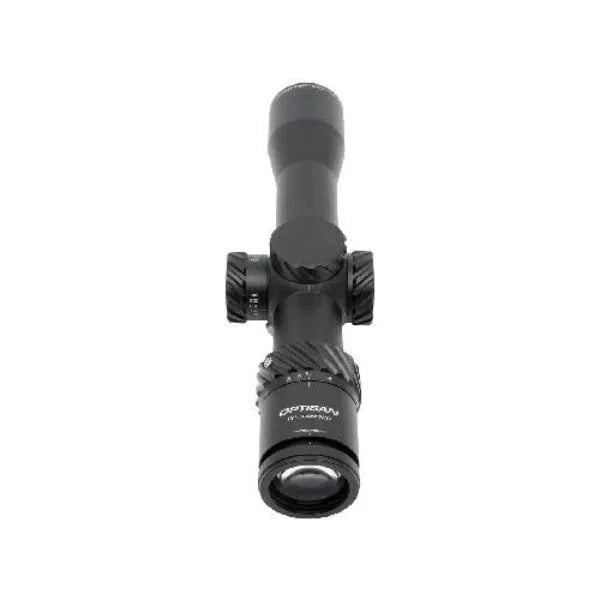

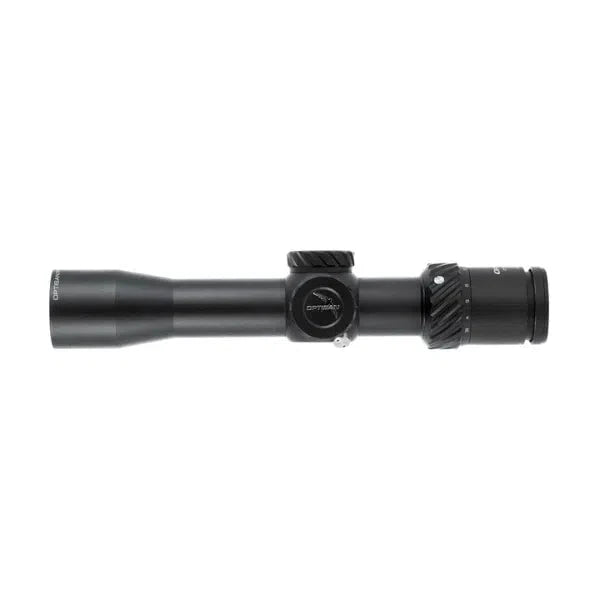

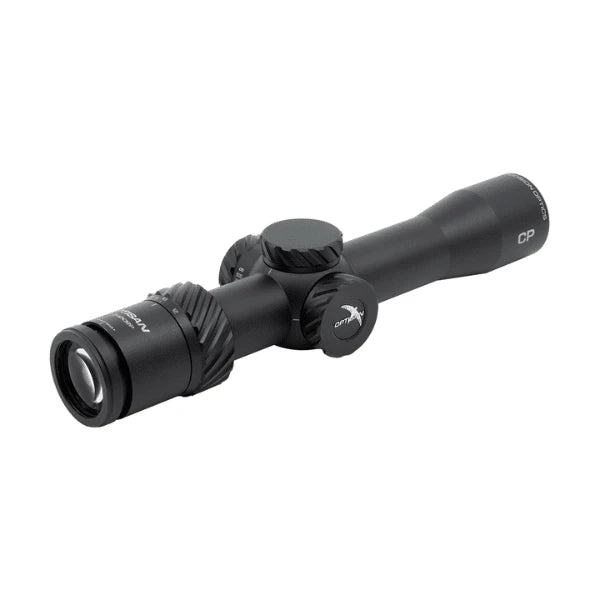

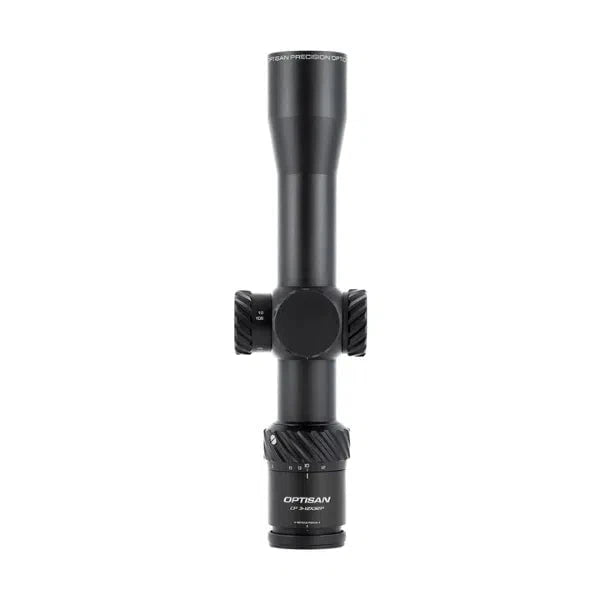

In the world of optics, the Optisan 04002 CP 3-12X32P stands as an epitome of compact design innovation. Measuring a mere 25.4 cm in length and weighing less than 0.48 kg, it emerges as the ultimate companion for those seeking excellence in compact and lightweight rifle setups.
Compact design
Only 25.4 cm length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.
Optisan 04002 CP 3-12X32P – Minimized Parallax error
With 32mm objective lens the CP is able to minimise the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.
This means that you can leave the parallax fixed and shoot targets at different distances without experiencing a shift of point of impact, this is very helpful in many competitive shooting situations.
Parallax adjustment range is from 10 yards up to 500 yards to infinity.
Springer Rated
Field-tested by champion shooters for more than one year on springer rifle. It is a robust riflescope that is capable of use on centerfire rifles.
Sleek Design
+ Extremely low profile turret
All stainless steel extremely low profile turret with 10 mrad of adjustment per turn. No obstruction of view even when night vision eyepiece is attached.
What comes in the box:
2.5” sunshade, Lens covers.
Reticle MH10
Full View
The MH10 reticle is an all-round MRAD(MIL) based reticle designed for precision ranging at 10X with uncluttered windage correction reference marks.
Subtension Detail:
The graphic shows the subtensions in mrad (mil) at 10x. The up-right corner is the blow-up graphic of the center of the reticle. The MH10 reticle can also be used to range in other magnifications with calculation as follows. When range at 5x for example, multiply by 2 on all subtensions at 10x. When range at 12x for example, divide by 1.2 on all subtensions at 10x.
OPTICAL DATA:
- Magnification (High) 12X
- Magnification (Low) 3X
- Objective Diameter (mm) 32mm
- Outer dia. Objective (mm) 40mm
- FOV (min.mag）(ft/100yds) 36
- FOV (max.mag）(ft/100yds) 9
- Eye relief (in) 3.5″ – 3.3″
- Exit Pupil (Max mag.） (mm) 2.6 mm
- Exit Pupil (min. mag.） (mm) 10.6 mm
- Diopter Range (dpt) +/- 2.0
- Parallax Adjustment 10yds – infinity (100yds pa free)
- Coating Fully Multi-coated
MECHANICAL DATA
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (value per click) 0.1 mrad
- Windage Adjustment (value per click) 0.1 mrad
- Turret Style (Elevation) Low-profile, Zero-resettable
- Turret Style (Windage) Low-profile, Zero-resettable
- Travel Per Rotation 10 mrad
- Elevation adj. range ≥ 20 mrad
- Windage adj. range ≥ 20 mrad
- Eye Piece Diameter (in) 1.55”
- Eye Piece Diameter (mm) 39.5 mm
- Eye Piece Length (in) 1.08”
- Eye Piece Length (mm) 27.55 mm
- Mounting Length rear (mm) 55.70 mm
- Mounting Length front (mm) 30.00 mm
- Tube Dia. (mm) 30 mm
- Length (in) 9.52”
- Length (mm) 242mm
- Weight (g) 487
- Weight (oz) 17.17
- Surface Finish Matte Black
ENVIRONMENT DATA
- Functional temperature -20 ~ 50 degree celsius
- Storage temperature -20 ~ 50 degree celsius
- Submersion tightness JIS 7
RETICLE DATA
- Reticle SFPMH10X
- Calibrated Ranging Power 10X
- Focal plane Second
- Illumination Non-illuminated
DELIVERY INCLUDE
- Standard Accessories 2.5” sunshade
- Lens covers
Conclusion:
In summary, the CP embodies compact design excellence, catering perfectly to lightweight rifles with its 25.4 cm length and sub-0.48 kg weight.
Its 32mm objective lens effectively minimizes Parallax error, maintaining impact consistency across head movements and target distances. This stability is invaluable in competitive shooting, especially with a Parallax adjustment range from 10 to 500 yards and beyond.
