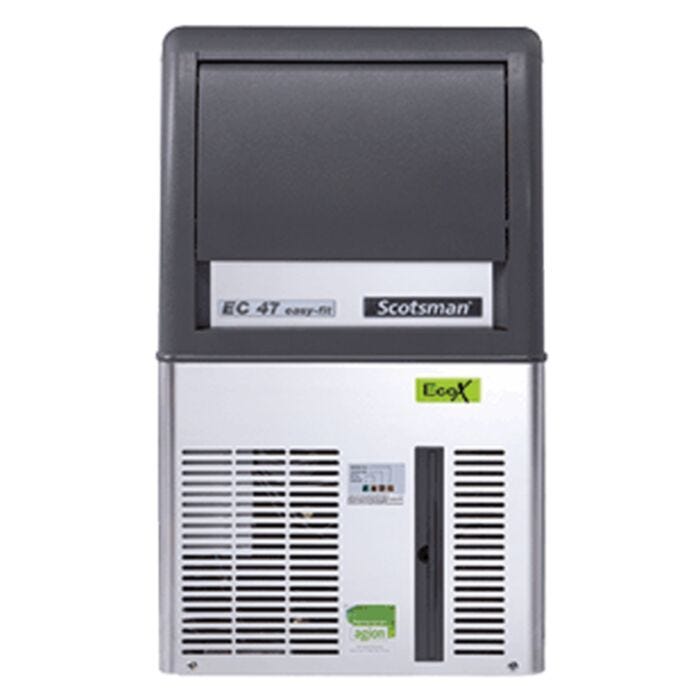

Scotsman Ice Maker - EC47-OX

Scotsman Ice Maker - EC47-OX

Product teaser:
Concise information about the specific product and its functions

Scotsman self-contained ice cube maker with built-in waste water pump, ideal for domestic households.

Product summary:
Key features, characteristics, facts or advantages of this product

FEATURES
•Produces 20g individual Gourmet crystal clear supercubes
•Front access condenser air filter, removable and washable
•Routine maintenance visible alarm light on front panel.
•The PWD- The Progressive water discharge system allows the water to be pumped away to a height of up to 1.5 metres and a distance of up to 15 metres.
•Legs are not included and must be ordered separately as an accessory. XSafe: natural sanitation system, integrated inside the ice maker.

INSTALLATION REQUIREMENTS
•Water inlet point -¾ inch male thread within 1 metre
•Water drain point - 40mm standard 1.5 metre drain pipe supplied
•Electricity supply within 1 metre.
•Located in a cool, well ventilated position. Under counter, NOT closed cupboard installation.
Full installation manuals available on our website: www.scotsmansa.co.za

Brand description:
A summary of the brand story, history or values

Scotman is one of the most trusted brands in the industry, offering high quality ice machines world wide.
We are the largest manufacturer of ice machines in the world, a truly global company with distributors and authorised service agents in over one hundred countries. There are now over a million Scotsman ice machines at work around the world.

Offering various forms of ice, cube, flake, superflake, scale, dice, and gourmet ice, suited for household or commercial use in quantities from cube-at-a-time dispensers to tonnes of ice per day.

Scotsman SA offer technical support as well as a trained after sales and spares team to provide a well rounded customer service for our valued Scotsman customers as we focus solely on ice machines.

Care instructions:
- How to clean
- How to store
- How to maintain

Exterior cleaning
• Prepare the bottles: 1 x bottle with undiluted white vinegar and label it clearly. 1 x bottle with plain water and label it clearly.
• Remove all water deposits from the surface with a microfiber cloth or soft sponge.
o NB!!! Do not use any product such as oven cleaner, scouring powders or chlorine-based cleaners, they are harsh, abrasive and can permanently damage the stainless steel.
• Using White Vinegar starting at the top, spray the vinegar liberally on the surface of the ice machines and storage bins exterior.
• Wipe the surface, starting at the top of the ice machine following the grain of stainless steel, use a microfiber cloth, wipe away any water marks, fingerprints, smudges, and grime.
• Rinse off with water, once you're satisfied that all the fingerprints and grime have been removed, go over the surface again with a water-dampened microfiber cloth. Stainless steel is naturally resistant to corrosion, but this step is a precaution to remove the acid in the vinegar so that there's no chance of it interacting with the metal over time. You can either spray water from a bottle or dampen the cloth directly with water.
• Dry thoroughly; The final step is crucial for streak-free stainless steel. Dry the surface completely with a lint-free microfiber cloth. Again, follow the grain and buff gently.
• Tip: To restore the shine to freshly cleaned stainless steel, put a couple of drops of vegetable oil on a soft cloth. Wipe in the direction of the grain and allow the surface to air-dry.
• Pull out the Air filter.
• Rinse under warm soapy water to remove dust from filter.
• Dry the air filter.
• Place the air filter back into the slot of the unit.

Interior cleaning
1. Remove the ice out of the storage bin and freeze or put in ice-well.
2. Take warm clean cloth and clean the interior of the storage bin, with food safe detergent.
3. Make sure the white drain outlet inside the bin is clear and free of any build-up of algae or scale or debris.
4. Rinse the inside of the bin thoroughly with clean water.
5. Make sure the water is draining out of the storage bin.                                                                                                                    NB!!! The unit should come into the Scotsman workshop once a year for a full service.

Specs:
- Detailed Physical Dimensions
- Net Weight
- Capacity
- Material of all parts

Size (W x D x H)
386 x 600 x 645 mm

Net weight 37 kg

SPECIFICATIONS
•Production 19-24 kg per 24 hours, depending on water/ambient temperature
•Internal bin capacity 9 kg.

Colour

Stainless steel with dark grey trimmings

Warranty / Shelf Life
(The standard warranty as per the CPA is 6 months, we recommend this as a minimum warranty period)

WARRANTY PERIOD:
Scotsman SA warrants their products for the following period from date of sale to the end user as follow.
•Scotsman ice cubers – 12 months on parts and labour
•Scotsman flakers, nuggets / dispensers – 12 months on parts and 6 months labour only.
•Spare parts / components replaced under the warranty Policy are guaranteed for 6 months from date of invoice.
Proof of date of purchase in the form of a TAX invoice is required.

EXTENDED 12 MONTH WARRANTY:
•Is, available on parts only (No labour incl.) if, the unit is serviced by an accredited Supplier / Dealer, before the end of the first 12 months.
•This service charge is for the end user’s account.
•Proof of such a service in the form of an Invoice and proof of payment to an accredited Supplier / Dealer will be required by Scotsman SA to validate the extended warranty claim.
•All other costs, including, but not limited to, are not covered under Warranty and will be charged to the end user.
