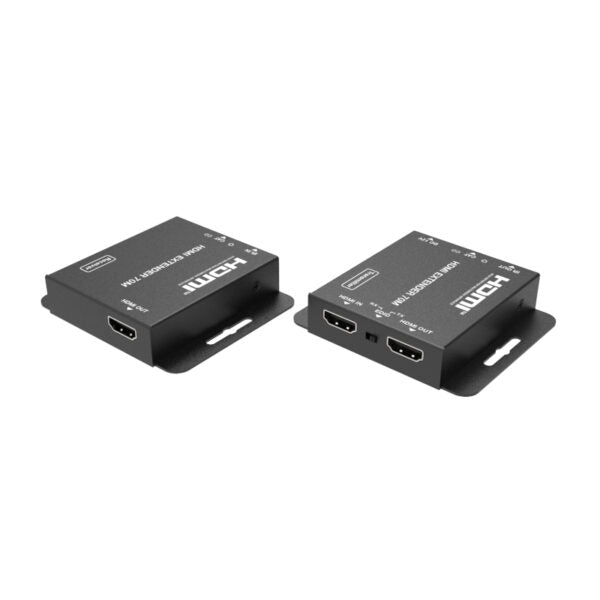

The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.
FEATURES:
- HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant
- Support Video Resolution up to 4K2K@30Hz YUV 4:4:4
- CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
- CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
- Support Copying EDID from Receiver Display or Loop Out Display
- Allow for Cascading via additional HDMI loop out port
- Support one-way POC functionality (from transmitter to receiver)
- One-way IR signal transmission
SPECIFICATIONS:
- HDMI Compliance: HDMI 1.4
- HDCP Compliance: HDCP 1.4
- Video Bandwidth: 10.2Gbps
- Video Resolution: Up to 4K@30Hz
- Audio Support Up to 7.1CH HD audio
- Input TMDS Signal: 3.3 volts
- Input DDC Signal: 5.0 volts/P-P
- ESD Protection
- Human Body model:
- +/- 8 kV (air-gap discharge)
- +/- 4 kV (contact discharge)
- Transmitter:
- Input:
- 1 x HDMI Type A [19-pin female]
- Output:
- 1 x HDMI Type A [19-pin female]
- 1 x IR OUT [3.5mm Stereo Mini-jack]
- 1 x CAT OUT [RJ45, 8-pin female]

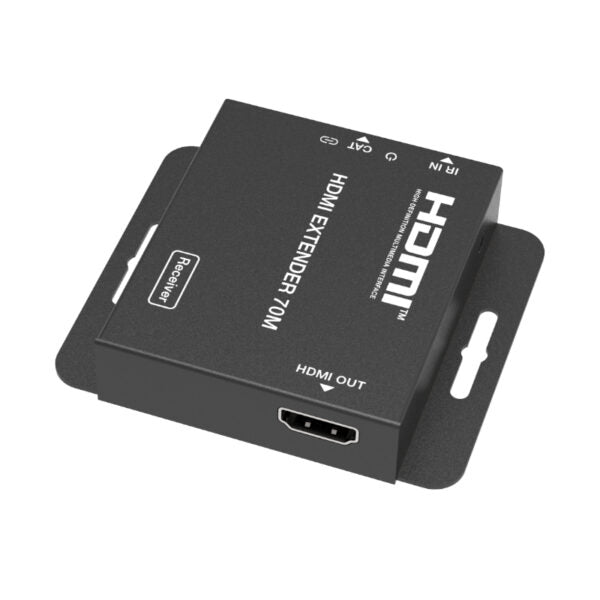

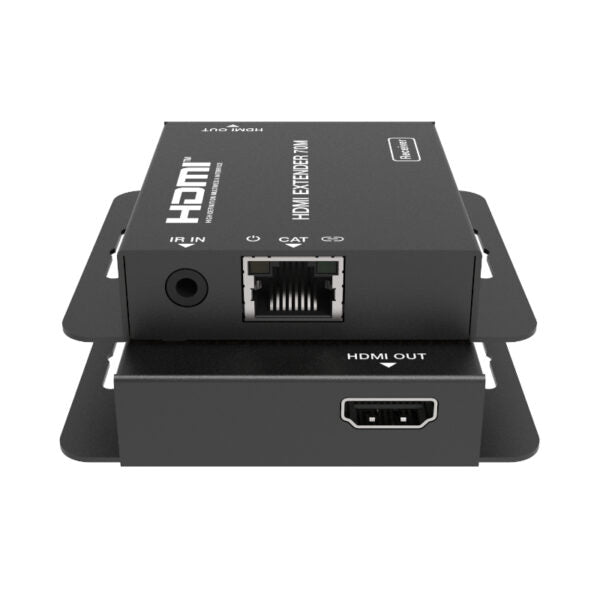

- Receiver:
- Inputs:
- 1x IR IN [3.5mm Stereo Mini-jack]
- 1x CAT IN [RJ45, 8-pin female]
- Output:
- 1x HDMI Type A [19-pin female]
- Housing: Metal Enclosure
- Colour: Black
- Power Supply 12V/1A DC
- Power Consumption
- Transmitter: 1.86W
- Receiver: 0.87W
- Product Dimensions: 7.9 x 6.9 x 1.7 cm
- Weight:
- Transmitter: 132g
- Receiver: 130g
WHAT'S IN THE BOX:
- HDCVT HDMI 70M Extender Receiver x1
- HDCVT HDMI 70M Extender Transmitter x1
- IR Blaster Cable x1
- IR Receiver Cable x1
- 12V/1A DC Power Adapter x1
- User Manual x1
