BREMBO

Default Title

कीमत
R 14,236
चेकआउट पर कर और शिपिंग की गणना
10 स्टॉक में है और शिपिंग के लिए तैयार है
Description

Vehicle Fitment & Part Details

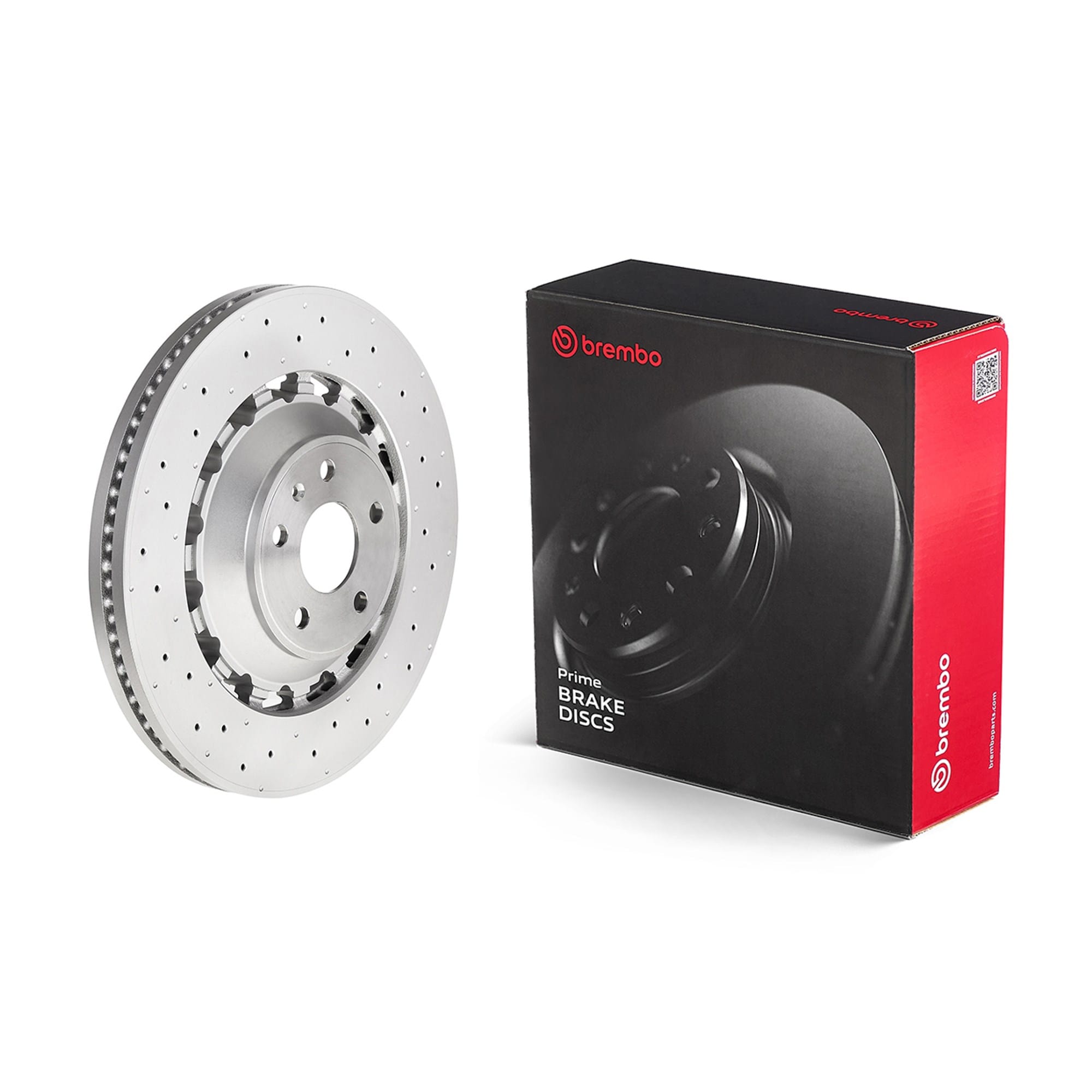

This front brake disc (single) fits Audi A3 RS3 applications and cross-references to OE 8V0615301P. It is a BREMBO 370mm coated perforated/vented two-piece brake disc. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine. Please note these disc will not fit if your discs are 53mm high, for that height you need SKU: 09D17453 (Height :53mm)

Key Details

SKU
09D17433
Component
Brake Disc
Position
Front
Configuration
Single
Brand
BREMBO
Part MPN
09.D174.33
GTIN / Barcode
8020584316375
OEM References
  • Audi: 8V0615301P
  • Audi: 8V0615301S
Primary Fitment
Audi A3 Sportback 8VA, 8VF (03/2015-08/2016)
Specs

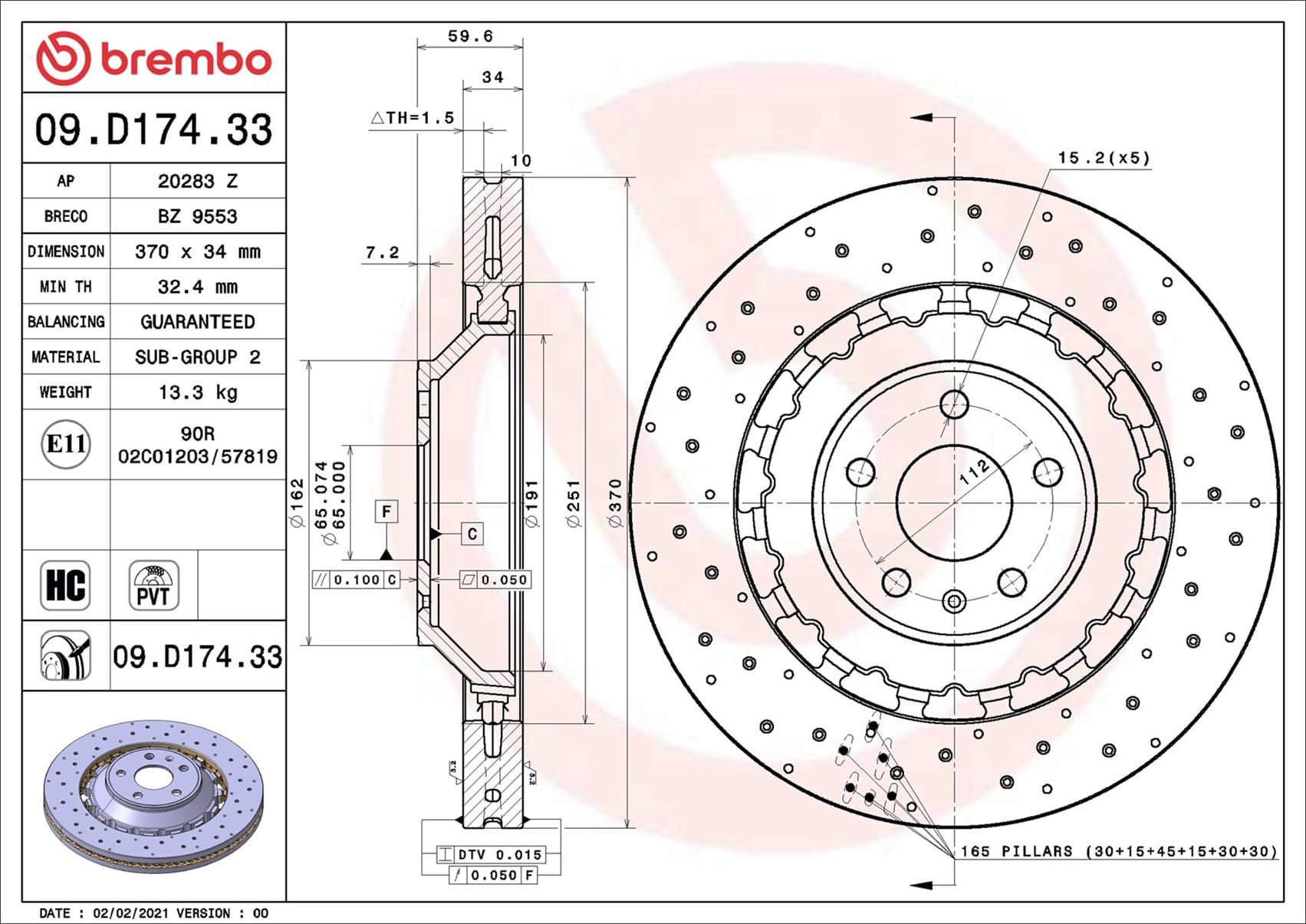

Front axle, 370mm outer diameter, 34mm thickness, 32.4mm minimum thickness, 5 holes, 60mm height, 65mm centering diameter

Key Benefits

  • OEM reference numbers are listed for cross-checking before ordering.
  • Supplied as a front axle brake disc in single configuration.
  • Supplied specifications include 370mm outer diameter, 34mm thickness, and 5 mounting holes.

Product Specifications

Specification Value
Fitting Position Front Axle
Model Brembo Prime UV Coated Composite Rotors
Brake Disc Type perforated/vented, two-piece brake disc, Aluminium Brake Disc Hub
Brake Disc Thickness 34 mm
Minimum Thickness 32,4 mm
Outer Diameter 370 mm
Centering Diameter 65 mm
Height 60 mm
Number of Holes 5
Machining High-carbon
Surface Coated

Vehicle Fitment

Model Chassis / Platform Years Engine Power
A3 Sportback RS3 quattro 8VA, 8VF 03/2015-08/2016 CZGB, Petrol 2.5, 2480ccm 270kW/367PS
A3 Sportback RS3 quattro 8VA, 8VF 04/2017-10/2020 DNWA; DAZA, Petrol 2.5, 2480ccm 294kW/400PS
A3 Seadan
RS3 quattro		 8VS, 8VM 04/2017-10/2020 DNWA; DAZA, Petrol 2.5, 2480ccm 294kW/400PS

Fitment Notes

  • Always match OEM reference number(s) and vehicle details before ordering. Verify VIN/engine.
  • This listing is for one front brake disc only. Confirm quantity required before ordering.
  • Engine codes are shown in the fitment table for workshop confirmation only.

Installation / Use / Maintenance Tips

  • Clean hub and mounting surfaces before fitting new brake components.
  • Compare the new brake disc to the removed disc before installation, including diameter, thickness, height, hole count, and hub fitment.
  • Replace related wear hardware, seals, or brake fluid where applicable during installation.
  • After installation, verify pedal feel, confirm there are no leaks, and bed in friction components as applicable.

Common Questions

Will this front brake disc fit my Audi A3 Sportback?
This part (09D17433) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.

What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the Key Details section above. Match at least one to your original part before ordering.

What brand is this part?
This listing is for BREMBO brake disc.

How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details to your vehicle. Verify VIN/engine. If unsure, request fitment assistance before ordering.
