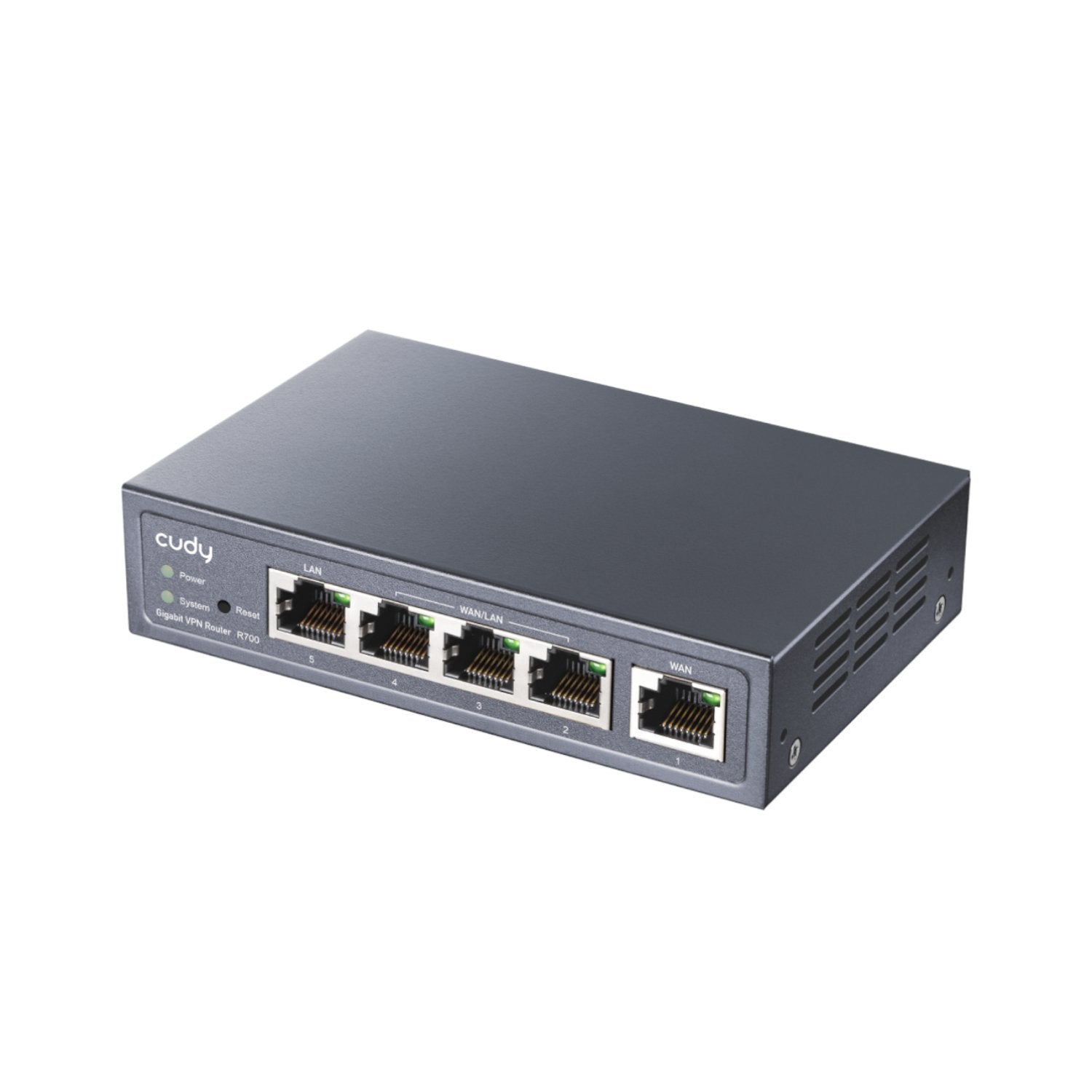

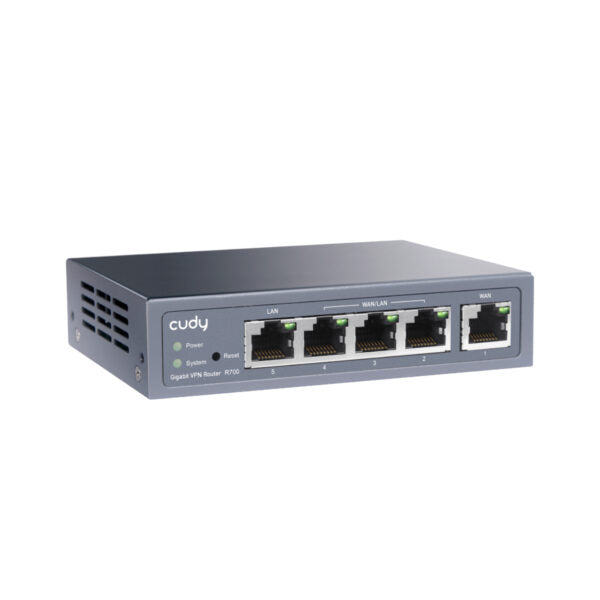

The Cudy R700 Gigabit Multi-WAN VPN Router brings next-generation wireless performance to modern homes and offices, delivering seamless connectivity and extended coverage with industry-leading Wi-Fi 6 technology. Designed to eliminate dead zones and enable high-speed wireless expansion, the R700 combines advanced dual-band speeds with smart roaming features, ensuring uninterrupted streaming, conferencing, and gaming across your entire space.

With combined speeds of up to 3000 Mbps (2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz), the R700 ensures high-efficiency data delivery across multiple connected devices. Whether you’re working remotely, managing smart home systems, or supporting high-definition streaming, the Cudy R700 delivers consistent, high-speed performance.

EasyMesh compatibility allows the R700 to integrate effortlessly with other mesh-enabled routers and extenders, forming a unified, scalable network with seamless roaming capabilities. Smart LED signal indicators simplify placement for optimal coverage, while the device’s three-in-one functionality — operating as a repeater, access point, or Gigabit bridge — ensures flexible deployment in diverse network environments.

Equipped with a full Gigabit Ethernet port, the R700 is ideal for bandwidth-heavy wired devices, including smart TVs, game consoles, and desktop PCs. Enhanced security protocols, including WPA3-SAE, provide advanced encryption and improved network protection for modern smart homes and small businesses.

Compact, powerful, and future-ready, the Cudy R700 redefines what a range extender can do — providing the speed, control, and flexibility to match today’s digital lifestyles.

FEATURES:

• AX3000 dual-band Wi-Fi 6 (2402 Mbps + 574 Mbps)


• EasyMesh supports seamless mesh networking


• Dual-core CPU for stable multi-device performance


• Gigabit Ethernet port for high-speed wired access


• Smart signal indicator for optimal placement


• Three-in-one operation: Repeater, AP, Gigabit Bridge


• Advanced WPA3 encryption for secure connectivity

SPECIFICATIONS:

• CPU


• CPU Details: 880 MHz Dual-Core


• Memory/Storage


• Flash/ROM: 16 MB (128 Mbit) NOR


• DDR/RAM: 128 MB (1 Gbit) DDR3


• Interfaces

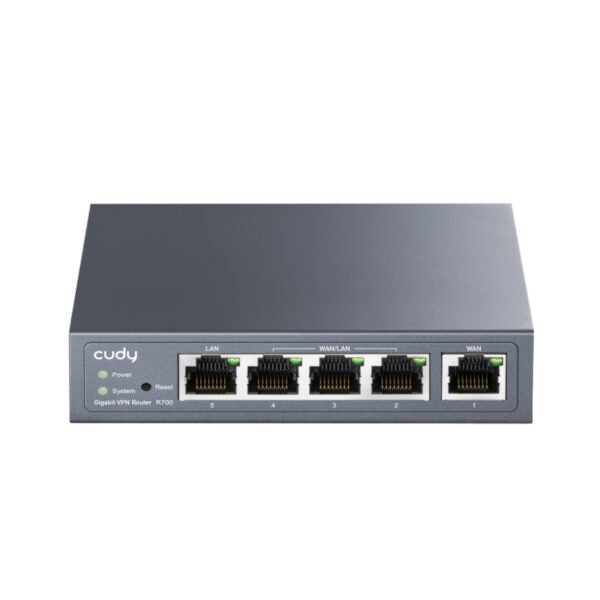

• Gigabit RJ45 Ports: 5


• Ethernet Notes: 1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port


• LED:



  • Power


  • System


  • Speed/Link/ACT of Ethernet Port






• Physical Buttons: Reset Button

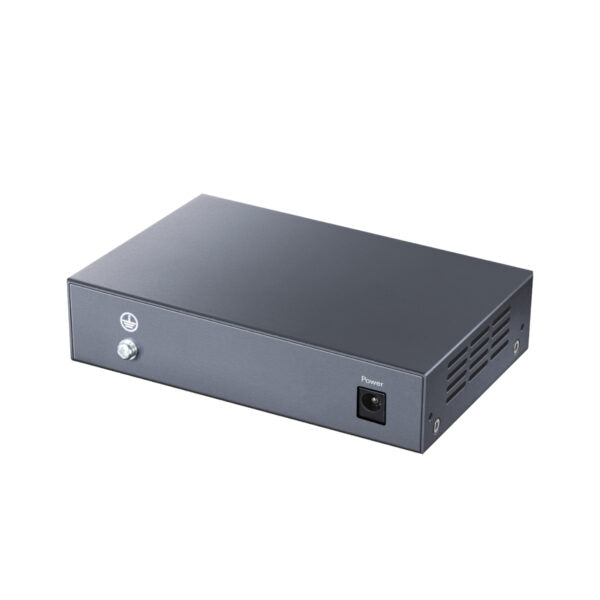

• Power Input: DC Jack


• Power


• Power Methods: DC


• DC: 12V 1A


• Power Adapter:



  • Input: 100 ~ 240 V, 50/60 Hz AC


  • Output: 12V 1A DC






• Reliability


• Environment:



  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)


  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)


  • Operating Humidity: 10% ~ 90% non-condensing


  • Storage Humidity: 5% ~ 90% non-condensing


  • Grounding Methods: Grounding Point






• Certifications: FCC, CE


• Mechanical


• Installation:



  • Desktop


  • Wall-mount






• Casing Material: Metal


• Dimension: 1.19×8.5×2.8 cm


• Product Weight: 273 g

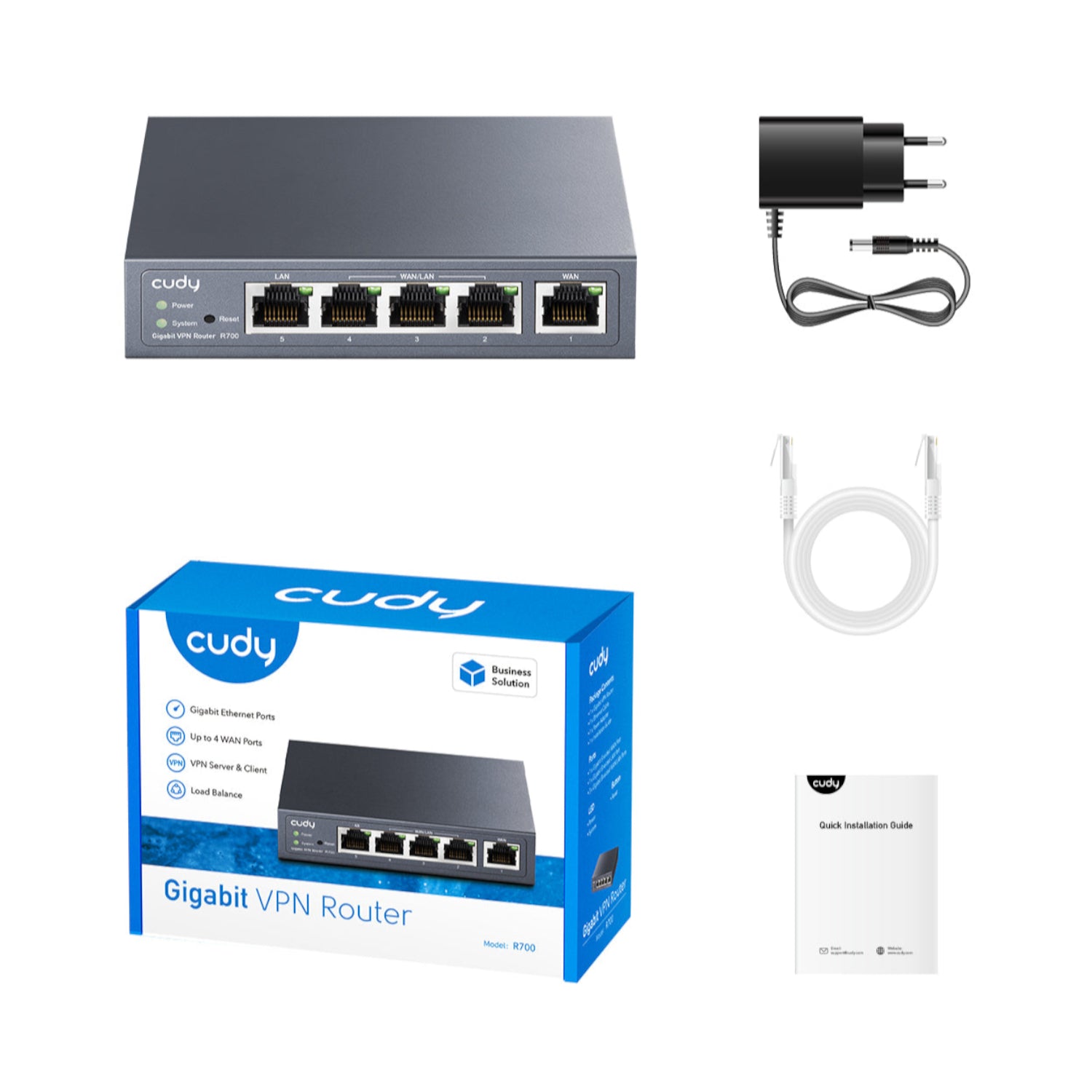

WHAT'S IN THE BOX:

• Cudy R700 Gigabit Multi-WAN VPN Router x1


• Power Adapter x1


• Ethernet Cable x1


• Installation Guide x1
