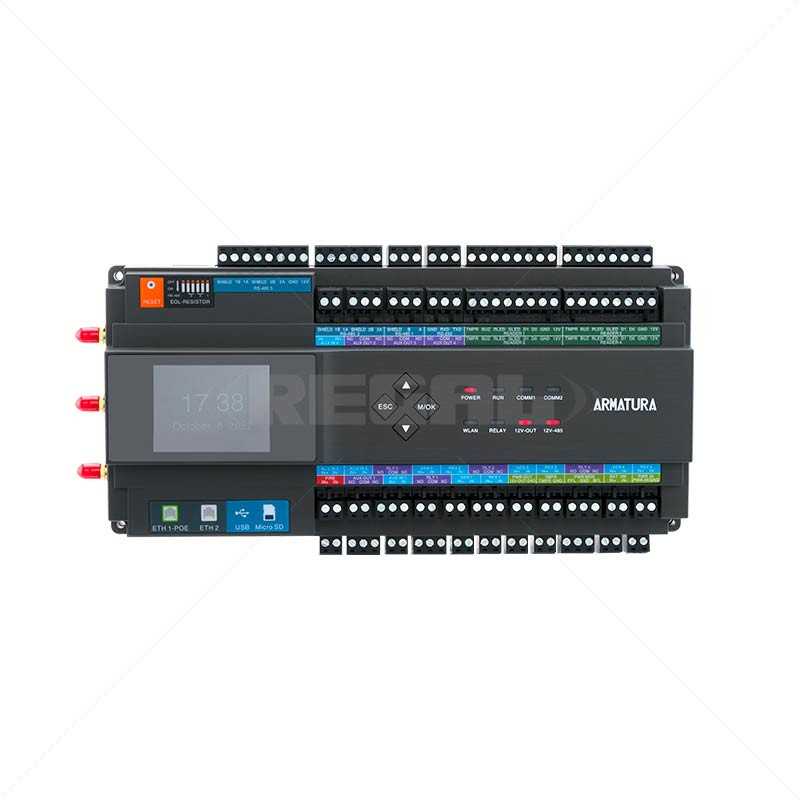

The Armatura AHDU-1460 Horizon IP-Based 4 Door Controller is a powerful and scalable solution for access control, designed to manage up to four doors and provide flexible security options. This controller integrates seamlessly into existing systems, offering enhanced protection with advanced features such as real-time monitoring, automatic door locking, and multi-protocol support. Its IP-based design allows for remote access and management, making it an ideal choice for businesses looking to streamline their security operations.

With support for multiple communication protocols such as RS-485, Wiegand, and OSDP, the AHDU-1460 is versatile and compatible with a wide range of access control devices, including RFID readers, biometric systems, and more. The device is also built with a robust and weather-resistant construction, ensuring reliability even in demanding environments. It offers encrypted data transfer for secure communication and features expansion options for future growth, accommodating up to 8 doors with the appropriate modules.


🔑 Key Features

Feature Description
Door Management Manage up to 4 doors and 8 readers simultaneously.
Multi-Protocol Support Supports RS-485, Wiegand, and OSDP for maximum compatibility.
Remote Access IP-based design for remote management and control.
Advanced Encryption Secure data transmission with AES256 and TLS 1.2 encryption.
Expandable Supports future expansion to manage up to 8 doors with additional modules.
Real-Time Monitoring Track system status in real-time for proactive security management.
Weather-Resistant Designed for durability in both indoor and outdoor environments.

⚙️ Technical Specifications

Specification Detail
Model AHDU-1460
Power Supply PoE or 12-24 VDC ±20%, 550 mA maximum
Communication Ports Dual 100Base-TX Ethernet ports
Reader Interfaces Wiegand, RS-485, OSDP
Operating Temperature -20°C to 60°C
Humidity 10% to 90% (non-condensing)
Relay Outputs 4 Form-C dry contact relays (5A @ 30VDC)
Dimensions 260mm x 120mm x 45mm
Weight 1.2 kg (approx.)
Encryption Standards AES256, TLS 1.2
Max Supported Doors 4 (expandable to 8 with modules)
Max Supported Readers 8 readers
Monitoring Interface 2.4" TFT display for status and configuration
