4-Port 4K HDMI Cat 6 Splitter with Receivers - 1 splitter and 4 receivers
The 4-Port 4K HDMI Cat 6 Splitter with Receivers is a high-performance solution designed to distribute a single HDMI signal to up to four displays over Cat 6 cabling. Ideal for classrooms, conference rooms, digital signage, or home entertainment setups, this splitter delivers seamless 4K video and high-quality audio to multiple screens simultaneously.
This kit includes one HDMI splitter and four receivers, enabling easy setup and flexible display placement. By using Cat 6 cables, it supports long-distance signal transmission without degradation, ensuring sharp visuals and clear sound across all connected devices. It’s perfect for expanding HDMI output to multiple monitors while maintaining excellent image quality.
Supporting resolutions up to 4K at 60Hz, the splitter ensures ultra-high-definition video performance for presentations, video walls, or media streaming. The plug-and-play design allows for quick installation with minimal configuration, making it accessible for both professional AV setups and home users.
Reliable, efficient, and versatile, the 4-Port 4K HDMI Cat 6 Splitter with Receivers simplifies multi-display setups, delivering consistent 4K visuals and audio to multiple screens with ease.
Key Features
| Feature |
Description |
| Ports |
1 HDMI input, 4 HDMI outputs (via receivers) |
| Resolution Support |
Up to 4K UHD @ 60Hz |
| Transmission |
Uses Cat 6 cabling for long-distance signal |
| Audio Support |
High-quality digital audio transmission |

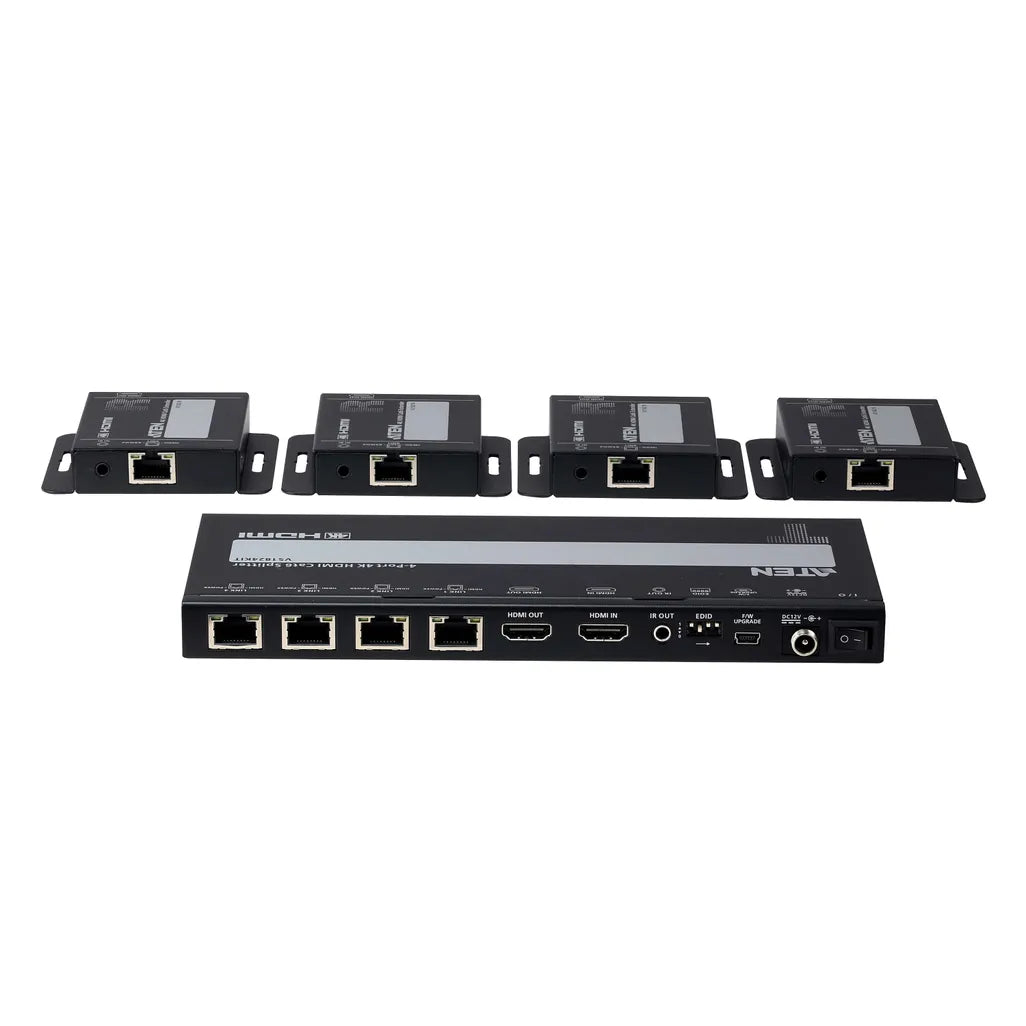

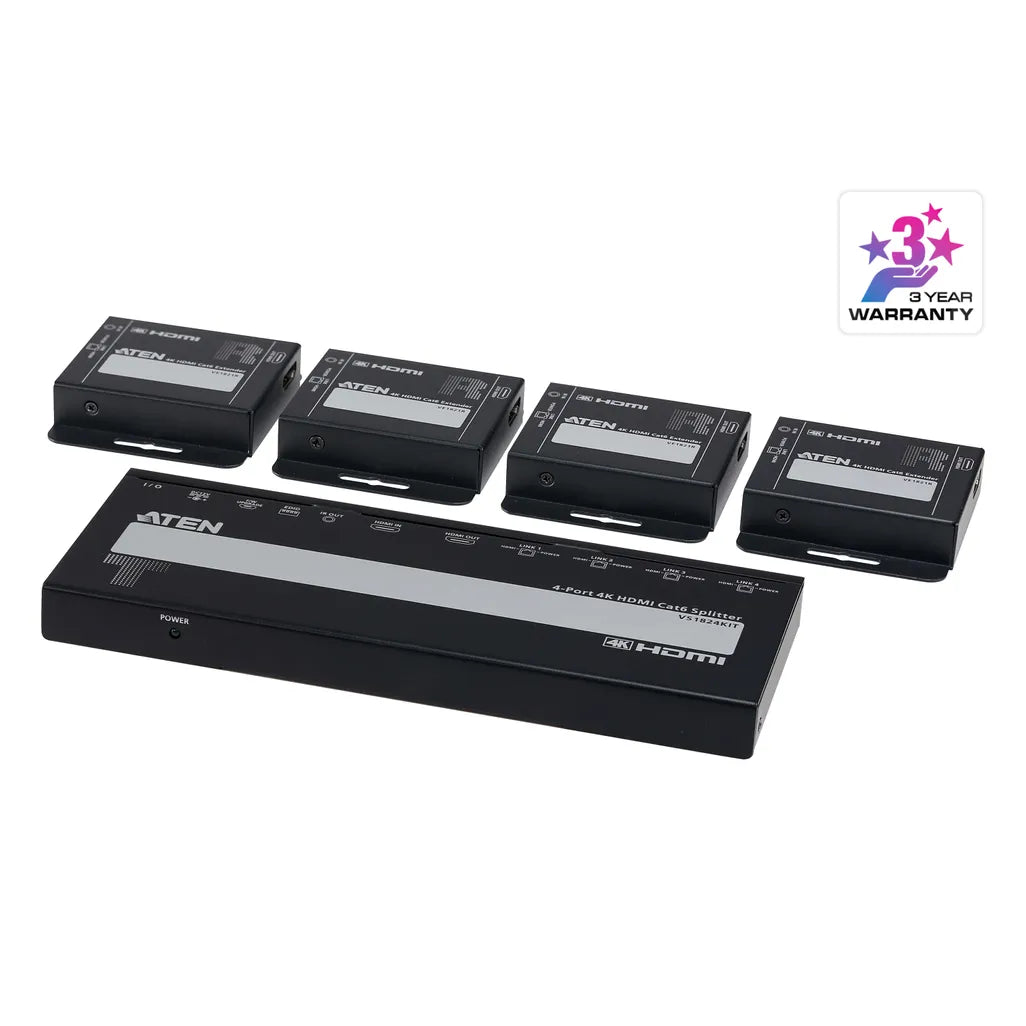

| Kit Includes |
1 splitter and 4 receivers |
| Plug & Play |
Easy setup without software |
| Use Case |
Classrooms, conference rooms, digital signage, home entertainment |
| Reliability |
Stable video and audio transmission over long distances |
Specifications
| Specification |
Details |
| Model |
4-Port 4K HDMI Cat 6 Splitter with Receivers |
| Input Interface |
HDMI 1.4/2.0 |
| Output Interface |
HDMI via Cat 6 receivers |
| Supported Resolution |
Up to 3840 x 2160 @ 60Hz |
| Cable Type |
Cat 6 (recommended) |
| Maximum Transmission Distance |
Up to 50 meters (depending on cable quality) |
| Power Supply |
AC adapter included for splitter and receivers |
| Operating Temperature |
0–50°C |
| Storage Temperature |
-20–60°C |
| Weight |
Splitter approx. 400 g; each receiver approx. 200 g |
