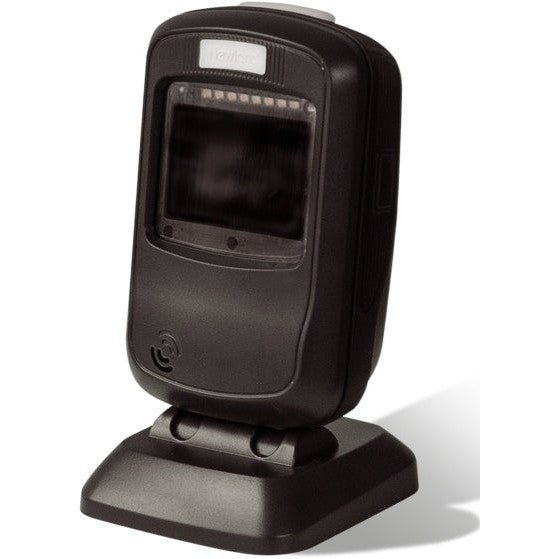

Newland-FR40 Koi II 2D CMOS Mega Pixel Omnidirectional presentation desktop scanner with 2 mtr. USB cable.
Newland-FR40 Koi II 2D CMOS Mega Pixel Omnidirectional presentation desktop scanner with 2 mtr. USB cable.
The Newland FR40 Koi II is a high-performance 2D CMOS megapixel presentation desktop scanner, designed to deliver fast, accurate, and effortless barcode scanning in retail, hospitality, and commercial environments. Equipped with a 2-meter USB cable, it ensures flexible connectivity and stable data transmission to POS systems, computers, or other compatible devices.
Featuring omnidirectional scanning technology, the FR40 Koi II can effortlessly read 1D and 2D barcodes from any angle, reducing the need for precise alignment. Its high-resolution CMOS sensor allows reliable decoding of QR codes, Data Matrix, PDF417, and traditional linear barcodes — even on mobile screens, curved surfaces, or poorly printed labels.
The FR40 Koi II’s compact, ergonomic design supports continuous use in busy workspaces, while its presentation mode allows hands-free scanning of items placed in front of the device. Its durable construction ensures long-lasting performance, making it an ideal solution for high-volume retail counters, libraries, logistics centers, and other commercial applications.
Key Features:
| Feature |
Description |
| Omnidirectional Scanning |
Reads 1D and 2D barcodes from any orientation with ease. |
| 2D CMOS Sensor |
High-resolution sensor ensures accurate barcode decoding. |
| USB Connectivity |
2-meter USB cable for reliable, plug-and-play integration. |
| Hands-Free Presentation |
Supports hands-free scanning for enhanced efficiency. |
| Compact & Durable Design |
Built for continuous operation in commercial environments. |
| Wide Barcode Compatibility |
Supports QR, Data Matrix, PDF417, and standard 1D barcodes. |
Technical Specifications:
| Specification |
Details |
| Model |
Newland FR40 Koi II |
| Scanner Type |
2D CMOS Omnidirectional Presentation Desktop Scanner |
| Barcode Types |
1D (EAN, Code128, Code39, etc.), 2D (QR, Data Matrix, PDF417) |
| Interface |
USB 2.0 |
| Cable Length |
2 meters (USB) |
| Scanning Mode |
Presentation (Hands-Free) and Triggered (Optional) |
| Scan Speed |
Up to 300 scans/sec |
| Decode Range |
Up to 300 mm depending on barcode type and density |
| Indicators |
LED and audible beep |
| Operating Temperature |
0°C – 50°C |
| Storage Temperature |
–20°C – 70°C |
| Dimensions |
155 × 110 × 110 mm (approx.) |
| Weight |
450 g (approx.) |
| Color |
Black |
| Warranty |
1-Year Manufacturer Warranty |
