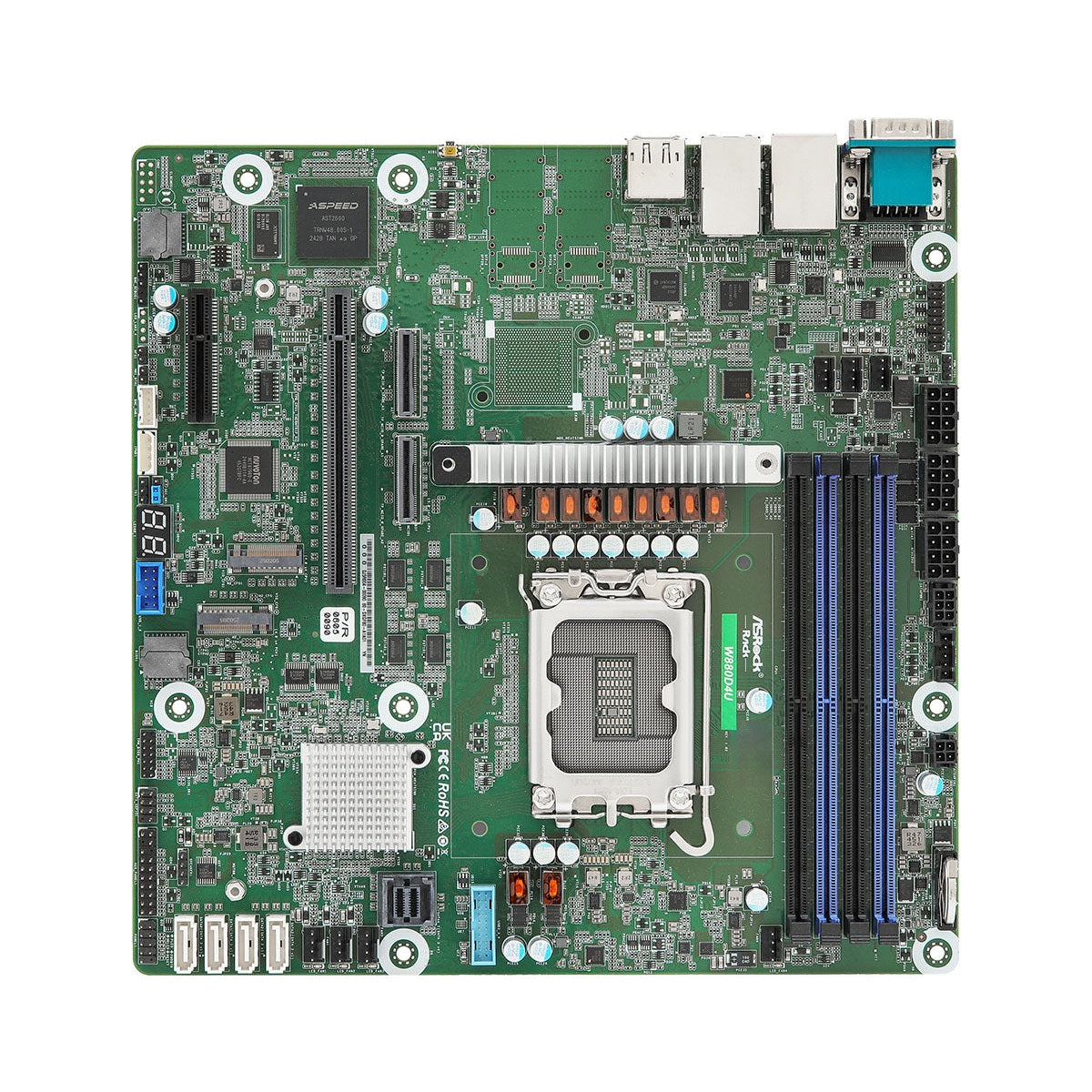

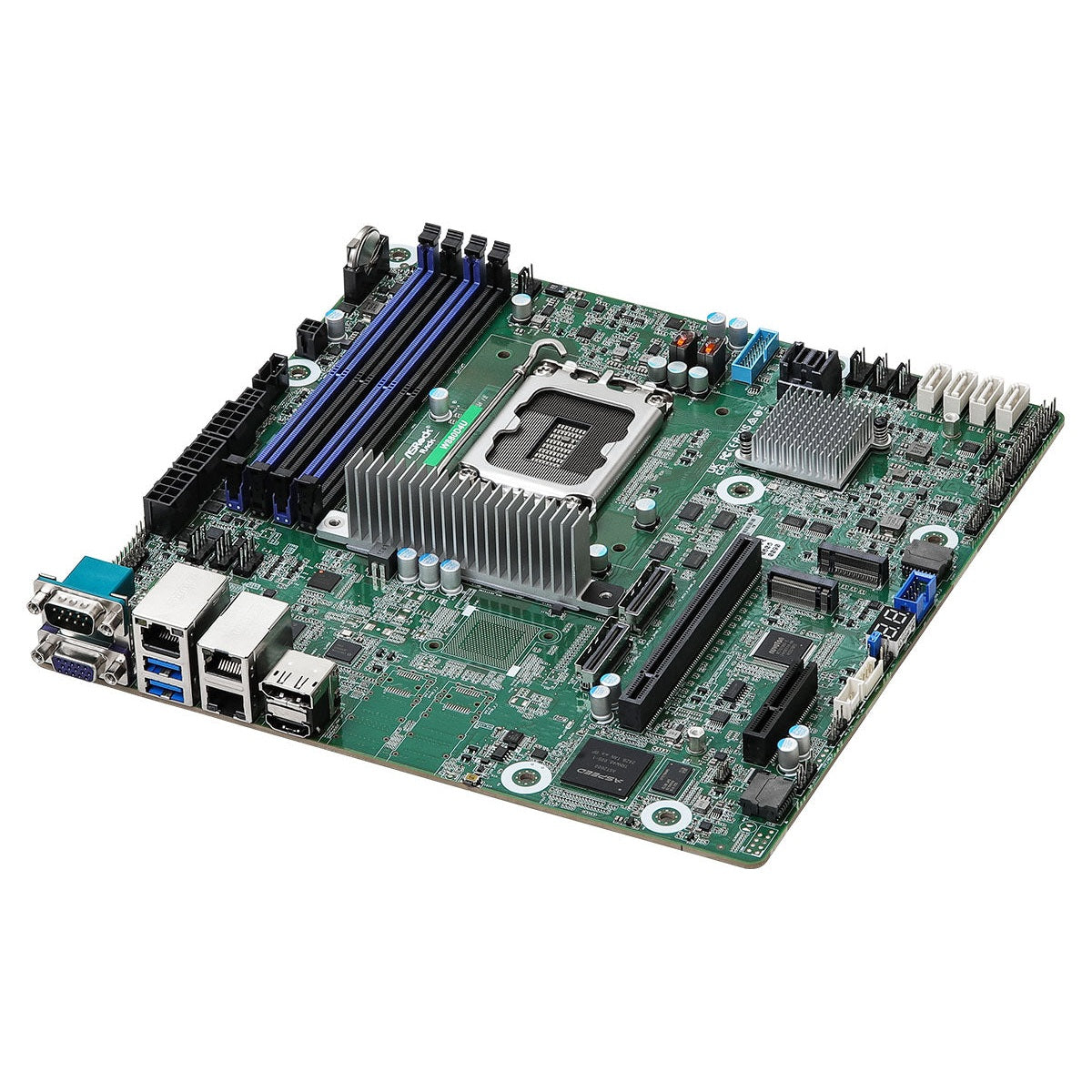

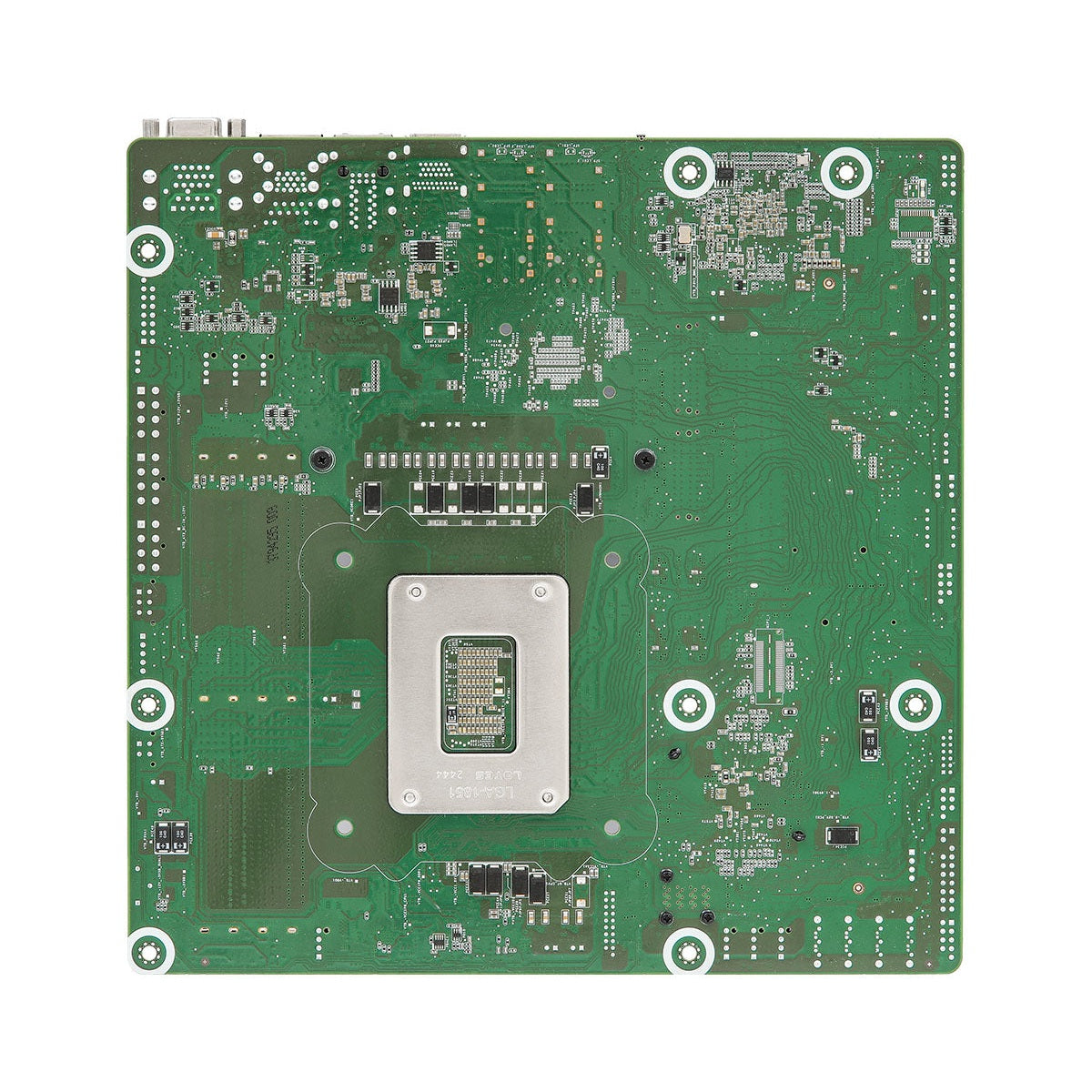

ASRock Rack W880D4U Intel Core Ultra Desktop Processors (Series 2) Single Socket LGA 1851 Micro-ATX Server Motherboard | SKU MB-W880D4U

International Product - 10 days handling time.

Import duties and taxes not included in price.

Support ATX PSU or 12V DC-in

Supports Intel® Core™ Ultra Desktop Processors (Series 2)

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM, CUDIMM Memory

1 PCIe5.0 x16, 1 PCIe5.0 x4

1 MCIO (PCIe5.0 x8 or 2 PCIe5.0 x4), 1 MCIO (2 PCIe4.0 x4)

ASRock Rack W880D4U Intel Core Ultra Desktop Processors (Series 2) Single Socket LGA 1851 Micro-ATX Server Motherboard

Price
R 9,265
10 in stock
Description
Main Features
  • Physical Status:
    • Form Factor: Micro-ATX
    • Dimensions: 9.6" x 9.6"
  • Processor System:
    • CPU: Supports Intel® Core™ Ultra Desktop Processors (Series 2)
    • Socket: Single Socket LGA 1851
    • Thermal Design Power: 125W
    • Chipset: Intel® W880
  • System Memory:
    • Supported DIMM Quantity: 4 DIMM slots (2DPC)
    • Supported Type: DDR5 288-pin ECC/non-ECC UDIMM, CUDIMM
    • Max. Capacity per DIMM: 64GB
    • Max. DIMM Frequency:
      • CUDIMM:
        • 6400 MT/s (1SPC)
        • 5600 MT/s (2SPC 0R2R)
        • 4800 MT/s (2SPC 1R1R)
        • 4400 MT/s (2SPC 2R2R)
      • ECC/non-ECC UDIMM:
        • 5600 MT/s (2SPC 0R2R)
        • 4800 MT/s (2SPC 1R1R)
        • 4400 MT/s (2SPC 2R2R)
    • Voltage: 1.1V
  • PCIe Expansion Slots (SLOT7 close to CPU):
    • PCIe x 16:
      • SLOT6: PCIe5.0 x16 [CPU]
    • PCIe x 4:
      • SLOT4: PCIe5.0 x4 [CPU]
  • TPM:
    • TPM support: 1 (13-pin, SPI)
  • Other PCIe Expansion Connectors:
    • M.2 slot:
      • 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
      • 1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH]
    • Others:
      • MCIO1 (PCIe5.0 x8 or 2 PCIe5.0 x4) [CPU]
      • MCIO2 (PCIe4.0 x4) [PCH]
  • SATA/SAS Storage:
    • PCH Built-in Storage:
      • Intel® W880 (8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 Mini-SAS HD
  • Ethernet:
    • Additional GbE Controller: 2 RJ45 (1GbE) by Intel® i210
  • Server Management:
    • BMC Controller:
      • ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
    • IPMI Dedicated GLAN: 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
  • Graphics Controller:
    • ASPEED AST2600: 1 DB15 (VGA)
    • Intel® Integrated Processor Graphics: 1 HDMI, 1 DisplayPort
  • Rear I/O:
    • UID Button/LED: 1 UID button, 1 UID LED
    • Video Port: 1 DB15 (VGA), 1 HDMI, 1 DisplayPort
    • Serial Port: 1 DB9 (COM)
    • USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
    • RJ45: 2 RJ45 (1GbE), 1 dedicated IPMI
  • Internal Connector/Headers:
    • Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
    • Other Power Connectors: 1 (6-pin) for HDD power when using 12V DC-in power source
    • Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
    • System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
    • VGA header: 1 (15-pin)
    • Speaker Header: 1
    • Fan Header: 7 (4-pin)
    • Thermal Sensor Header: 1
    • TPM Header: 1 (13-pin, SPI)
    • SGPIO Header: 1
    • SMBus header: 1
    • PMBus header: 1
    • IPMB Header: 1
