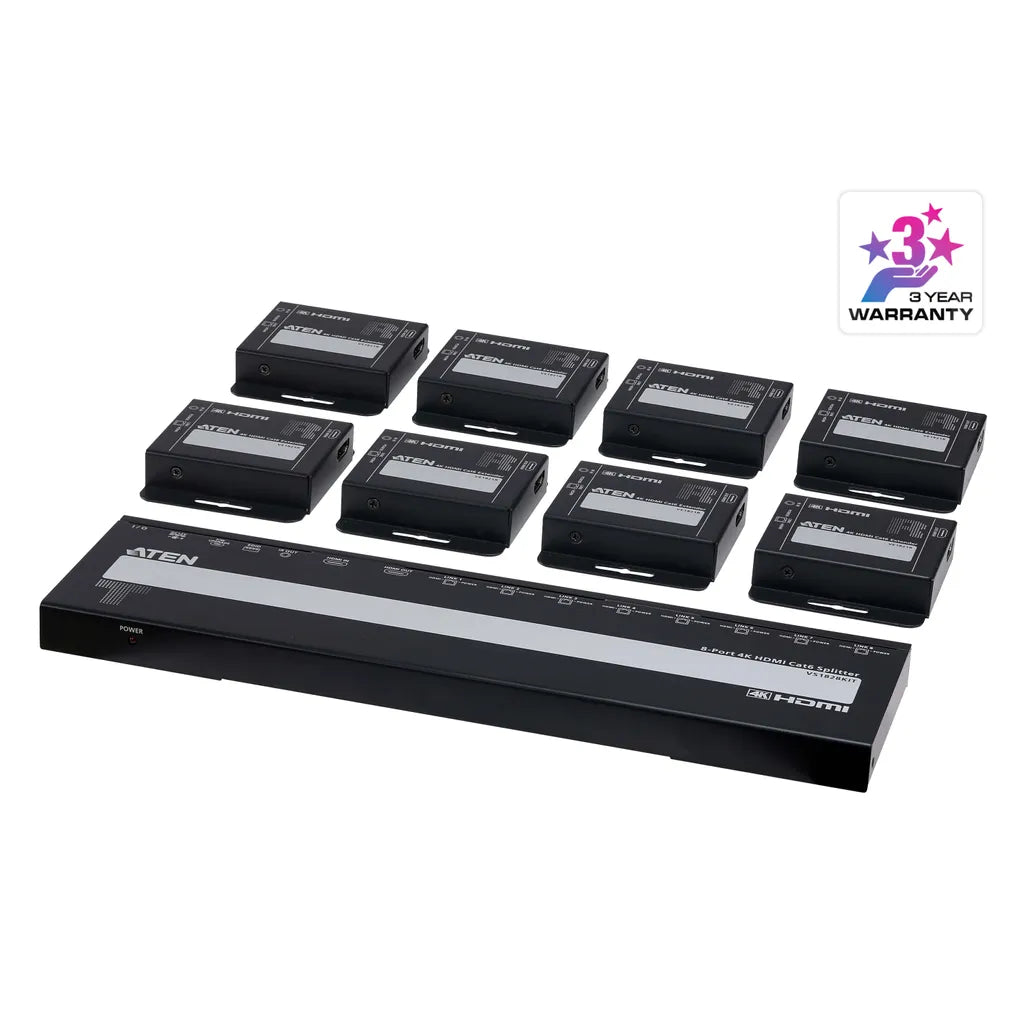

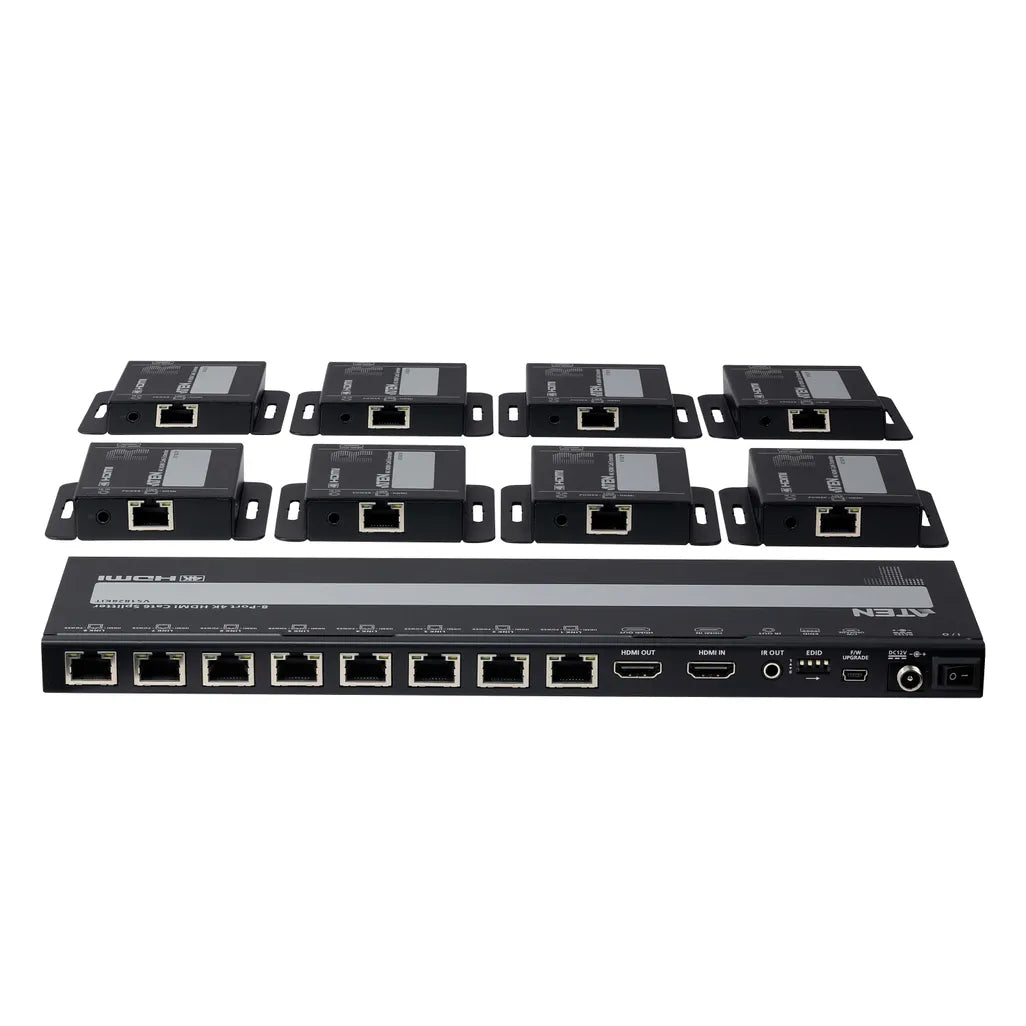

4-Port 4K HDMI Cat 6 Splitter with Receivers - 1 splitter and 8 receivers
The ATEN 4-Port 4K HDMI Cat 6 Splitter with Receivers is a high-performance solution for distributing a single HDMI source to multiple displays over long distances using standard Cat 6 cabling. Ideal for digital signage, classrooms, conference rooms, and AV installations, this system includes 1 splitter and 8 receiver units, providing versatile display options across multiple locations.
Supporting 4K resolution, the splitter ensures sharp, clear visuals with smooth digital audio for professional-grade presentations, video walls, or multi-screen setups. Its Cat 6 connectivity allows HDMI signals to be transmitted over longer distances without loss of quality, making it perfect for large spaces or multi-display environments.

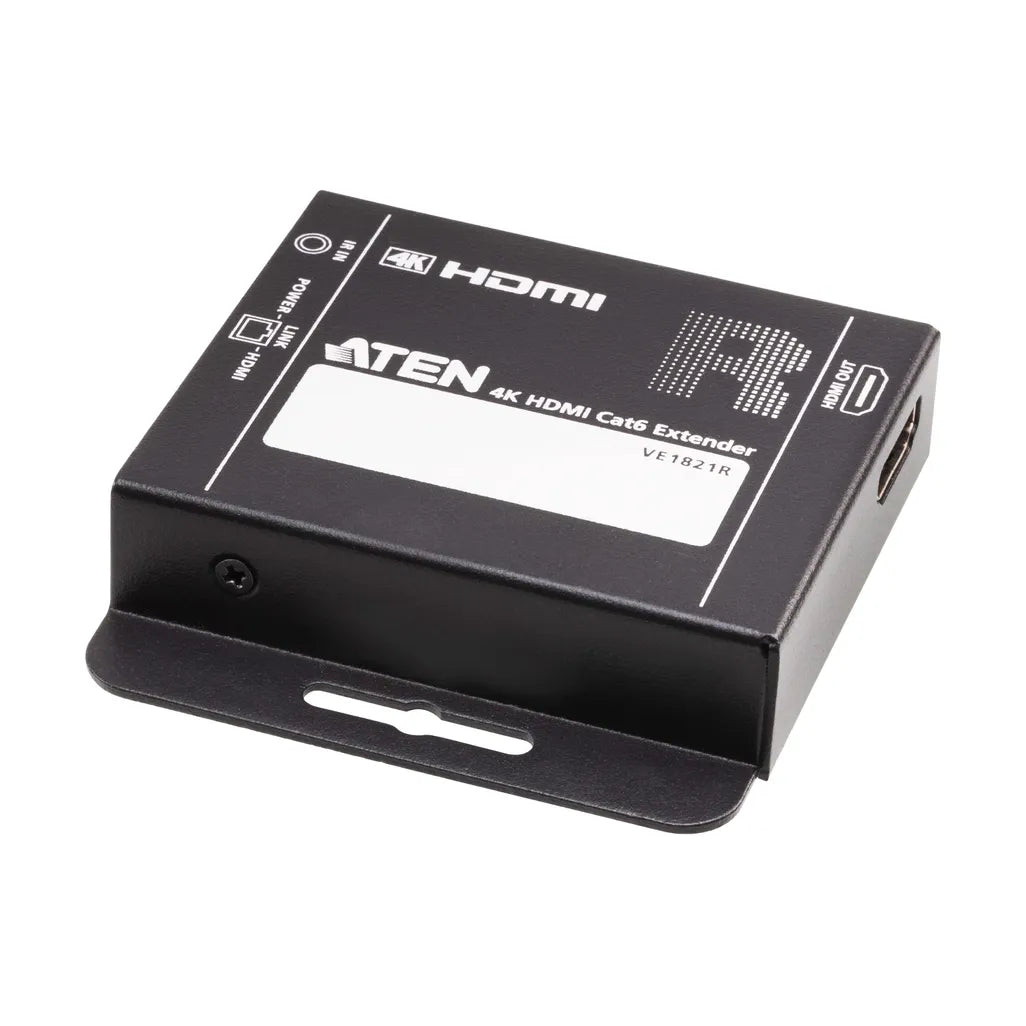

The receivers are compact and easy to install, enabling flexible placement near displays while maintaining optimal performance. Plug-and-play setup ensures quick deployment, and HDCP support guarantees compatibility with protected content.
The ATEN 4-Port 4K HDMI Cat 6 Splitter with Receivers is a reliable and efficient solution for extending high-definition HDMI content to multiple displays with minimal latency and maximum clarity.
Key Features
| Feature |
Description |
| HDMI Ports |
1 input, 4 outputs (splitter) |
| Receivers |
8 included for flexible display placement |
| Resolution Support |
Up to 4K UHD (3840 × 2160 @ 30Hz) |
| Cabling |
Cat 6 for long-distance HDMI transmission |
| Audio |
HDMI embedded digital audio |
| HDCP |
HDCP compliant |
| Installation |
Plug-and-play, easy setup |
| Use Case |
Digital signage, classrooms, conference rooms, AV installations |
Specifications
| Specification |
Details |
| Model |
ATEN 4-Port 4K HDMI Cat 6 Splitter with Receivers |
| Splitter Input |
1 × HDMI Type-A |
| Splitter Output |
4 × Cat 6 HDMI over IP ports |
| Receivers |
8 × HDMI receivers included |
| Maximum Resolution |
3840 × 2160 @ 30Hz (4K UHD) |
| Audio |
HDMI embedded audio |
| Cabling Distance |
Up to 50 m via Cat 6 (model-specific) |
| HDCP |
Yes |
| Power |
External AC adapters included |
| Operating Temperature |
0–50°C |
| Storage Temperature |
-20–60°C |
| Dimensions |
Splitter: approx. 220 × 120 × 35 mm; Receiver: approx. 100 × 60 × 20 mm |
| Weight |
Splitter: 0.8 kg; Receiver: 0.15 kg each |
